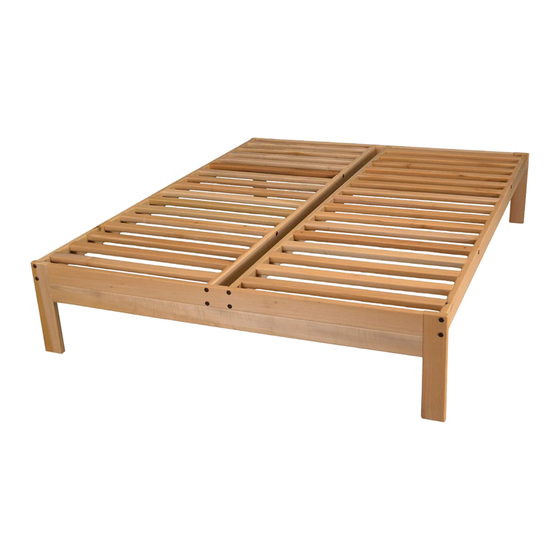

kd frames Nomad 2 King 365-N2-EK Instructions

Instructions for
Nomad 2
King
Parts:
A-36 REGULAR SLAT (20) - 36"
A-15L LEFT LEG (2) - 15" A-15R RIGHT LEG (2) - 15"
1
Align a Left Leg (A-15L) and Right Leg (A-15R)
so that the rail pockets are on the front.
Turn the Bed End (A-72F) so that the
pocket holes are facing the front.
Then push the dowels into the holes on the
legs. Repeat for the other Bed End.
Use a phillips screw driver to attach
the Legs to the Bed End using
(4) 1 - 1/2" Wood Screws (Black) (H-20).
Repeat for the other Bed End.
2
Use 2 - 1/2" Bolts (H-21) and
Cross Dowels (H-3) to attach
Bed Rails (A-80) to the Bed Ends.
The pockets in the Bed Rails should
be facing in and open to the top.
Leave all bolts loose until everything
is attached. Then tighten all bolts.
sku# 2365-N2-EK
A-72F BED ENDS (2) - 72"
A-80 BED RAIL (4) - 80"
A-36-C CONNECTOR SLAT (4) - 36"
A-14 CENTER LEG (2) - 14"
Rail pockets must
face the inside.
H-21
H-3
H A R D W A R E
H-21 2 - 1/2" BOLT
H-10 HEX WRENCH
H-20 1 - 1/2" WOOD SCREW (BLACK)
Tool needed:
#2 Phillips screw driver
A-15L
NOTE:
PLEASE RETIGHTEN
BOLTS
AFTER 30 DAYS
Manufactured by
394 Dairy Pak Rd. • Athens, GA 30607
kdframes.com • alan@kdframes.com
H-3 CROSS DOWEL
H-19 1 - 3/4" WOOD SCREW (SILVER)
THESE POCKETS
SHOULD BE TOWARDS
THE TOP
RAIL POCKETS MUST
ALL BE ON THE
SAME SIDE
NOTE:
Place the best looking rail
on the outside to make
your frame look its best.
L I S T
24
24
1
8
8
A-15R
