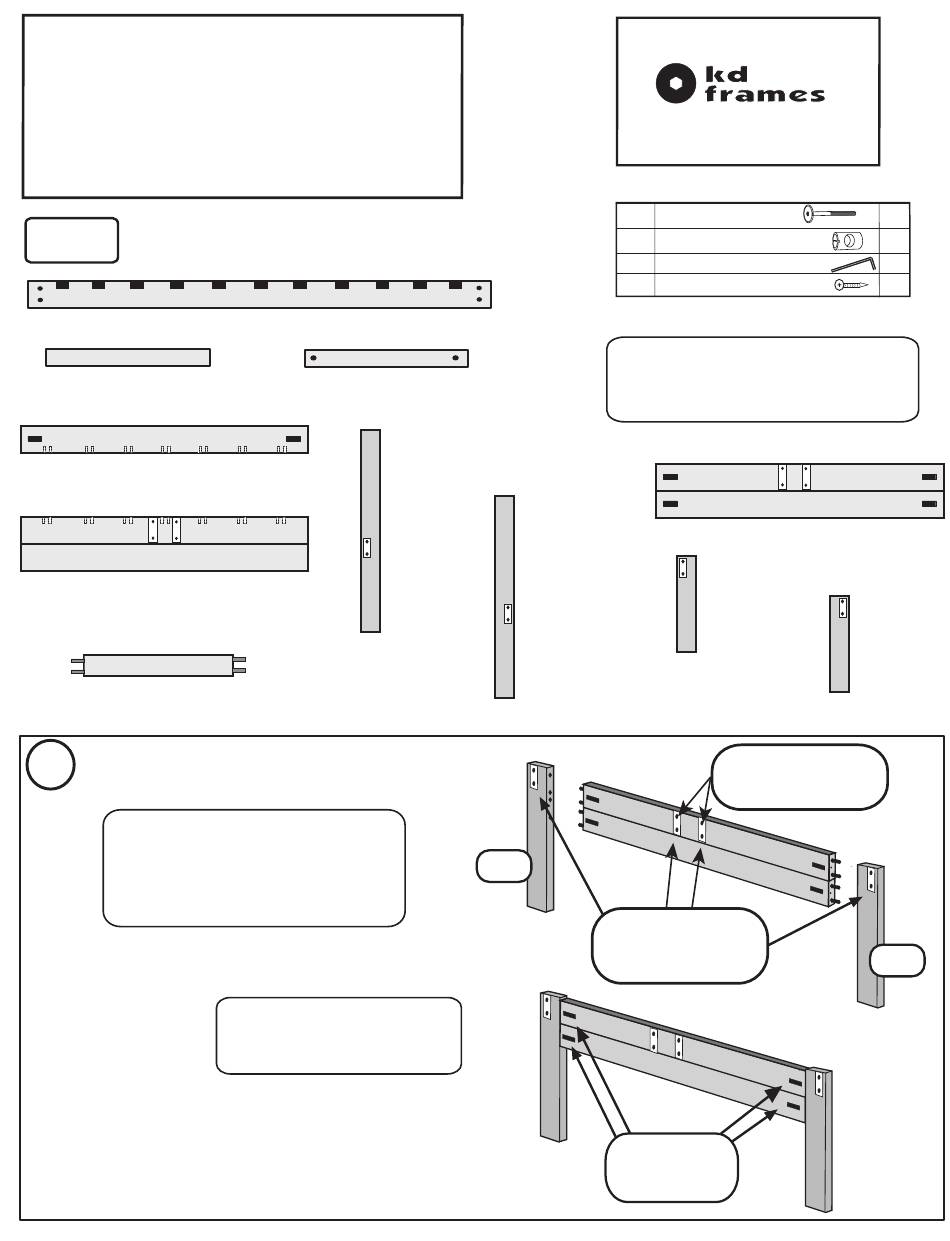

Instructions for
Charleston 2
Twin
Parts:
A-75 BED RAIL (4) - 75"
A-17 REGULAR SLAT (18) - 17"
A-34-HT HEADBOARD TOP (1) - 34"
A-34-HB HEADBOARD BOTTOM (1) - 34"
A-22 HEADBOARD PICKET (7) 22"
1
FOOTBOARD ASSEMBLY
Align the Left Footboard Leg (A-15L) and
Right Footboard Leg (A-15R) so that the
rail pockets are on the front.
Turn the Footboard (A-34-F) so that the
pocket holes are facing the front.
Then push the dowels into the holes on the legs.
sku# 3483-C2-T
A-17-C CONNECTOR SLAT (4) - 17"
A-40L HEADBOARD LEFT LEG (1) 40"
A-40R HEADBOARD RIGHT LEG (1) 40"
Use a phillips screw driver to attach
the Legs to the Bed End using
(4) 1 - 1/2" Wood Screws (Black) (H-20).
394 Dairy Pak Rd. • Athens, GA 30607
H A R D W A R E
H-21 2 - 1/2" BOLT
H-3 CROSS DOWEL
H-10 HEX WRENCH
H-20 1 - 1/2" WOOD SCREW (black)
Tool needed:
#2 Phillips screw driver
A-15L FOOTBOARD LEFT LEG (1) 15"
A-15L
RAIL POCKETS MUST
ALL BE ON THE
SAME SIDE
WOOD SCREWS
GO IN THESE
POCKET HOLES
Manufactured by
kdframes.com • alan@kdframes.com
L I S T
A-34-F FOOTBOARD (1) - 34"
A-15R FOOTBOARD RIGHT LEG (1) 15"
THESE POCKETS
SHOULD BE TOWARDS
THE TOP
24
24
1
10
A-15R
Advertisement
Related Manuals for kd frames Charleston 2 Twin
Summary of Contents for kd frames Charleston 2 Twin
- Page 1 Instructions for Manufactured by Charleston 2 Twin 394 Dairy Pak Rd. • Athens, GA 30607 kdframes.com • alan@kdframes.com sku# 3483-C2-T H A R D W A R E L I S T H-21 2 - 1/2” BOLT Parts: H-3 CROSS DOWEL H-10 HEX WRENCH H-20 1 - 1/2”...
- Page 2 HEADBOARD ASSEMBLY BACK VIEW FRONT VIEW A-34-HT A-22 A-22 A-34-HB Assemble the headboard by pushing (7) Headboard Pickets (A-22) into holes on the Headboard Bottom (A-34-HB) . Then push the Headboard Top (A-34-HT) down onto the pickets. Be sure the pocket holes on (A-34-HT) are facing the back as pictured.
- Page 3 NOTE: Rail pockets must face the inside. Use 2-1/2” Bolts (H-21) and Cross Dowels (H-3) to attach Bed Rails (A-75) to the Headboard and Footboard. The pockets in the Bed Rails should be facing in and open to the top of the Rails. Leave all bolts loose until everything is attached.
- Page 4 Next insert all Regular Slats (A-17), then tighten the 2 - 1/2” Bolts (H-21). PLEASE RETIGHTEN BOLTS AFTER 30 DAYS This futon frame is made with Tulip Poplar. Any green tint in the wood will change to light brown in a few weeks. This will happen in 20 to 30 minutes if placed in direct sunlight.
