TuffStuff BA-701 Maintenance & Assembly Instructions

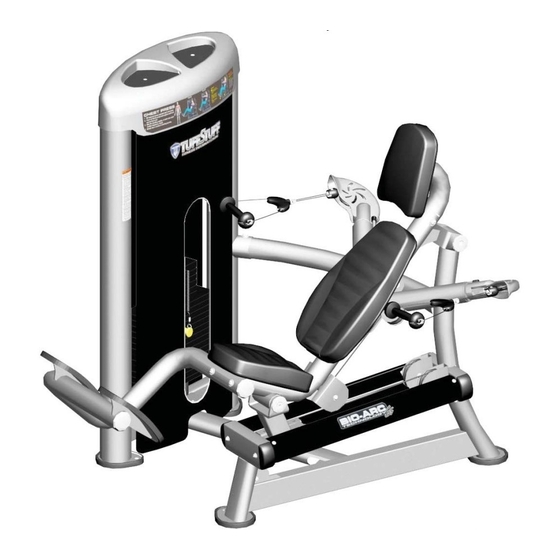

Chest press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
NOTICE
It is the Purchaser's/Owner's obligation:
1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels affi xed on the machine to their customers/users.
2. Equipment to be installed by TFI Authorized Dealer or a service
company approved by TFI.
3. Provide trained personnel, supervision and correct usage of the equipment.
4. Provide scheduled inspection, maintenance & repairs and must be performed
by TFI Authorized Dealer or a service company approved by TFI.
5. Must use only genuine TFI replacement parts.
6.
Machine must be anchored to a solid and level surface.
Maintenance & Assembly Instructions
BA-701
CHEST PRESS
OWNER'S MANUAL
BA-701_Rev1
Revision Date: 4-25-20018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA-701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TuffStuff BA-701

Summary of Contents for TuffStuff BA-701

  • Page 1 2. Equipment to be installed by TFI Authorized Dealer or a service company approved by TFI. BA-701 3. Provide trained personnel, supervision and correct usage of the equipment. 4. Provide scheduled inspection, maintenance & repairs and must be performed CHEST PRESS by TFI Authorized Dealer or a service company approved by TFI.

  • Page 2: Table Of Contents

    Should additional information be required, or should situations arise that are not covered by this owner’s manual, the matter should be directed to Customer Service at Tuff Stuff Fitness International Inc. in Chino, California. www.tuff stuffi tness.com BA-701 Chest Press...

  • Page 3: Overhead Specifications

    OVERHEAD SPECIFICATIONS L 72” X W 63” X H 58” L 183 cm X W160 cm X H148 cm PRODUCT WEIGHT 620 lb/281 kg BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 4: Danger, Warning, & Caution Labels Information

    Carefully read ALL Danger, Warning & Caution labels posted on the machine Chinese Utility Model Pat. No. ZL 201720316780.X Chinese Utility Model Pat. No. ZL 201621077888.X Stack them www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 5 Carefully read ALL Danger, Warning & Caution labels posted on the machine BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 6 Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 7 Facility Sign with your order, you can obtain one at no cost to you from Tuff Stuff Fitness by contacting our service department at: 1 (888) 884-8275 service@tuff stuff .net service1@tuff stuff .net BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 8: Anchoring Unit

    Anchoring Holes on shoes are provided for anchoring the unit to the fl oor. (See anchoring hole locations below) www.tuff stuffi tness.com BA-701 Chest Press...

  • Page 9: Important Safety Instructions

    CAUTION: indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 10: Registration, Service & Assembly

    Registration, Service & Assembly Thank you for purchasing the BA-701 Chest Press. This machine is part of the Tuff Stuff line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly. Allow ample space around the machine for safe unrestricted use and Registration easier access.

  • Page 11: Inspection/Maintenance

    Professional Service Company approved by TFI. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded from our website www.tuff stuffi tness.com INSPECTION / MAINTENANCE RECORDS DATE REPLACEMENT REPAIRS INSPECTED BY WARRANTY REPAIRS DATE REPLACEMENT REPAIRS INSPECTED BY BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 12: Cable Inspection

    A BREAK ON THE CABLE CABLE END SLIPPING OUT IMPORTANT NOTE: DAMAGED OR WORN CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S). YOU MUST INSPECT THE PULLEYS AT THIS TIME FOR WEAR AND TEAR. REPLACE IF NEEDED. www.tuff stuffi tness.com BA-701 Chest Press...

  • Page 13: Step 1

    BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/2-13 X 1 participate in the assembly FLAT WASHER SAE Z/P 1/2” SPLIT LOCK WASHER Z/P 1/2” of this unit. Loosely Tighten Loosely Tighten Loosely tighten all hardware in this step. BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 14 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 Note 1. Run guide wire through pulley bracket as shown. Make sure not to pull out completely. Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this and previous loosely tighten steps. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 15 FLAT HEAD SOCKET CAP SCREW Z/P 1/2-13 X 1 Note: 1. Make sure to insert the axles with the notched end fi rst. See fi g A. Fig. A Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 16 ARM FRAME RT FLAT WASHER SAE Z/P 1/2” HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 1 1/4 SPLIT LOCK WASHER Z/P 1/2” Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 17 RUBBER DONUT 3/4 RD ID X 2 1/2 RD OD X 3 SPLIT LOCK WASHER Z/P 3/8” Make sure threaded hole on guide rods face up Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 18 7. Open the lube package provided and apply a thin fi lm of lubricant around the fi rst 3 inches of the guide rods above the top plate. 8. Aft er the cables are installed, do a set of reps to spread the lubricant thoroughly. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 19 LINEAR SHAFT COVER RT BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/4-20 X 1/2 FLAT WASHER SAE Z/P #12 (1/4”) Note: Remove covers as shown below to allow you to route the cable in the following steps. BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 20: Step 8-9 Cable Routing

    2. Make sure cable runs on the pulleys. 3. Adjust cable tension on top plate bolt #101. See Fig. A Pull cable out See Fig. B Tie cable here Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 21 SPLIT BOLT GR-5 Z/P 1/2-13 X 1 (RND CUT) SPLIT HEX TAP BOLT GR-5 B/O 1/2-13 X 3 SPLIT LOCK WASHER Z/P 1/2” Fully tighten bolt Assemble pulleys once cable has been routed 48 42 BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 22 2. Adjust cable and test it. 3. Re-assemble linear shaft covers #*14 and #15 aft er completing this step. Pull cable out Tie cable here Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 23 Loosen to adjust cable tension. Adjust cable here Tighten once cable tension is achieved. Tie cable here Pull cable out BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 24: Step 10

    Item # Description Qty. SHIELD, REAR SHIELD, FRONT FLAT HEAD SOCKET CAP SCREW Z/P 1/4-20 X 3/4 *109 TOP PLASTIC COVER *109 Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 25 FLAT WASHER SAE Z/P 1/2” NYLON INSERT THIN PATTERN LOCK NUT G-5 Z/P 1/2-13 BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 1/2-13 X 4 Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 26 HEAD REST PAD STANDARD PAD SEAT PAD BUTTON HEAD SOCKET CAP SCREW GR-8 Z/P 3/8-16 X 1 1/4 FLAT WASHER SAE Z/P 3/8” Fully Tighten 100% Fully Tighten Wrench tighten all hardware in this step. www.tuff stuffi tness.com BA-701 Chest Press...

  • Page 27: Parts List

    LABEL DANGER USE THIS EQUIP. ONLY (COMM. LINE) 1.5 X 2.375 BNH3088 HEAD REST PAD UP8771 DECAL SERIAL NUMBER CLASS S BNH5186 LABEL TFI TUFFSTUFF FITNESS INTERNATIONAL LINEAR SHAFT 1 RD X 34 UP8909 BNH1058 LINEAR SHAFT COVER LT UP8910...

  • Page 28: Pre Assembled Components

    Pre Assembled Components www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 29 Pre Assembled Components *23 UP8915X1 UP8900X1 UP8927X1 BA-701 Chest Press www.tuff stuffi tness.com...
  • Page 30 Pre Assembled Components *26 UP8918X1 BNH4362X1 *109 *10 UP8906X1 www.tuff stuffi tness.com BA-701 Chest Press...
  • Page 31 Pre Assembled Components *31 UP8921X1 *32 BNH3535X1 *34 BNH3531 *33 BNH3533 *8 UP8922X1 BA-701 Chest Press www.tuff stuffi tness.com...

  • Page 32: Warranty

    Website: www.tuffstuffitness.com This warranty applies only in the United States to the products manufactured or distributed by TuffStuff Fitness International Inc. under the TUFFSTUFF brand name. TuffStuff warrants to the original purchaser that TuffStuff equipment will be free from defects in material and workmanship. All warranty periods begin to run from the date of purchase to the original purchaser.
