IMPORTANT: KEEP THIS MANUAL FOR FUTURE REFERENCE
NOTICE
It is the Purchaser's/Owner's obligation:
1. To disclose and post all Rules & Regulations, Danger, Warning and Caution
labels affi xed on the machine to their customers/users.
2. Equipment to be installed by TFI Authorized Dealer or a service
company approved by TFI.
3. Provide trained personnel, supervision and correct usage of the equipment.
4. Provide scheduled inspection, maintenance & repairs and must be performed
by TFI Authorized Dealer or a service company approved by TFI.
5. Must use only genuine TFI replacement parts.
6.
Machine must be anchored to a solid and level surface.
Maintenance & Assembly Instructions
BA-705

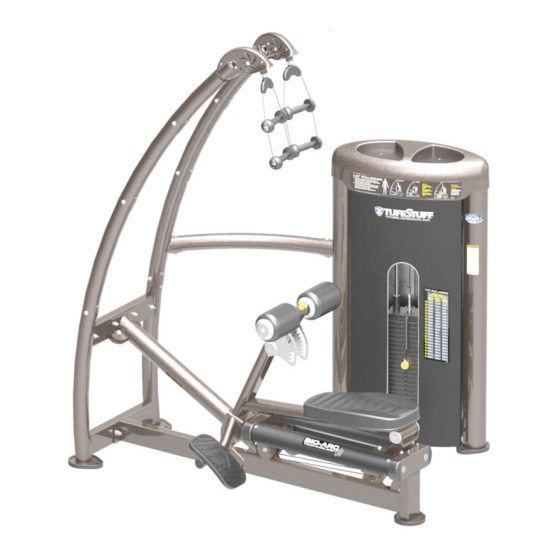

LAT PULLDOWN
OWNER'S MANUAL
BA-705_REV1
Revision Date: 5-21-2018
Advertisement
Table of Contents
Related Manuals for TuffStuff BA-705
Summary of Contents for TuffStuff BA-705
- Page 1 2. Equipment to be installed by TFI Authorized Dealer or a service company approved by TFI. BA-705 3. Provide trained personnel, supervision and correct usage of the equipment. 4. Provide scheduled inspection, maintenance & repairs and must be performed LAT PULLDOWN by TFI Authorized Dealer or a service company approved by TFI.
-
Page 2: Table Of Contents
Should additional information be required, or should situations arise that are not covered by this owner’s manual, the matter should be directed to Customer Service at Tuff Stuff Fitness International, Inc. in Chino, California. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 3: Overhead Specifications
Overhead Specifi cations L 71” X W 53” X H 86” L 181 cm X W 135 cm X H 219 cm PRODUCT WEIGHT 710 lb/322 kg www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 4: Danger, Warning, & Caution Labels Information
Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... - Page 5 Carefully read ALL Danger, Warning & Caution labels posted on the machine Stack them Chinese Utility Model Pat. No. ZL 201720321997.X www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 6 Carefully read ALL Danger, Warning & Caution labels posted on the machine www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 7 Sign with your order, you can obtain one at no cost to you from Tuff Stuff Fitness by contacting our service department at: 1 (888) 884-8275 service@tuff stuff .net service1@tuff stuff .net www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
-
Page 8: Anchoring Unit
Anchoring Unit Holes on footplates are provided for anchoring the unit to the fl oor. (See anchoring hole locations below) ANCHORING HOLE ANCHORING HOLES ANCHORING HOLES www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 9: Important Safety Instructions
Post and disclose all safety, rules and regulations on a bulletin board easily accessible to users. CAUTION: indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 10: Registration, Service & Assembly
Fully Tighten fl oor plan before assembling. Wrench tighten all hardware in this step. 100% Set up the BA-705 on a clean, solid, fl at surface. A smooth, fl at surface under the machine helps keep it level. www.tuffstuffi tness.com BA-705... -
Page 11: Inspection/Maintenance
Professional Service Company approved by TFI. Keep a service log of all maintenance and repair activities. Extra copies can be downloaded from our website www.tuff stuffi tness.com INSPECTION / MAINTENANCE RECORDS DATE REPLACEMENT REPAIRS INSPECTED BY WARRANTY REPAIRS DATE REPLACEMENT REPAIRS INSPECTED BY www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 12: Cable Inspection
A BREAK ON THE CABLE CABLE END SLIPPING OUT IMPORTANT NOTE: DAMAGED OR WORNED CABLE (AS SHOWN ABOVE) MAY DAMAGE THE PULLEY(S). YOU MUST INSPECT THE PULLEYS AT THIS TIME FOR WEAR AND TEAR. REPLACE IF NEEDED. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 13: Step 1
Step 1 Assembly List Item Qty. Description LAT UPRIGHT FRAME ASM SWIVEL PULLEY BRACKT NCB ASM (704_705_706) BLACK DELRIN SPACER AND RANGE LIMITER, 1" ID RETAINING SNAP RING EXT. PLAIN .925 X 1 X .042 www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... -
Page 14: Step 2
It is strongly recommended that two people participate in this assembly step. Loosely Tighten Loosely tighten all hardware in this step. DO NOT Fully Tighten. Some component(s) may need pre-assembly and or alignment during the assembly process. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... - Page 15 Loosely Tighten FLAT WASHER SAE Z/P 1/2" SPLIT LOCK WASHER Z/P 1/2" Loosely tighten all hardware in this step. DO NOT Fully Tighten. Some component(s) may need pre-assembly and or alignment during the assembly process. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 16 Loosely tighten all hardware in this step. Note: DO NOT Fully Tighten. Some component(s) It is strongly recommended that two may need pre-assembly and or alignment during the assembly process. people participate in this assembly step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 17 Tie guide wires together Fully Tighten 100% Proceed to inspect; align and wrench tighten ALL hardware assemblies specially those left loosely fasten, making sure the unit is assembled square and perpendicular. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 18 FLAT HEAD SOC CAP SCREW Z/P 1/2-13 X 1 Fig. A Note: 1. Make sure to insert the axles with the notched end fi rst. See fi g A. Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 19 PULL PIN YELLOW KNOB 3/8-16 INSERT Note: 1. Make sure to insert the axles with the notched end fi rst. See fi g A. Fig. A Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 20 HEX HEAD CAP SCREW Z/P 3/8-16 X 3 RUBBER DONUT 3/4 RD ID X 2 1/2 RD OD X 3 SPLIT LOCK WASHER Z/P 3/8" Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 21 8. Open the lube package provided and apply a thin fi lm of lubricant around the fi rst 3 inches of the guide rods above the Top Plate. 9. After the cables are installed, do a set of reps to spread the lubricant thoroughly. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 22 Qty. Description to route the cable in the following steps. LINEAR SHAFT COVER, ROW/LAT ASM LINEAR SHAFT COVER, ROW/LAT BUTTON HEAD SOC CAP SCREW Z/P 1/4-20 X 1/2 FLAT WASHER SAE Z/P #12 (1/4") www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
-
Page 23: Step 11-12 Cable Routing
1. Tie guide wire to cable end and pull it out as indicated above. Tie cable here 2. Make sure cable runs on the pulleys. 3. Adjust cable tension on top plate bolt #99. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... - Page 24 HEX HEAD CAP SCREW Z/P 3/8-16 X 4 NYLON INSERT THIN PATTERN LOCK NUT Z/P 3/8-16 OVAL HEAD PHILLIPS SCREW Z/P #10-32 X 1 1/8 SPLIT LOCK WASHER Z/P 1/2” TRAKHANDLE SPORT CABLE DUAL HANDLE www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 25 BA-705 BIO-ARC LAT PULLDOWN...
- Page 26 A MINIMUM OF 1” WITH HEX NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. Lock Nut Adj Pulley Bracket Fully Tighten 100% Proceed to inspect; align and wrench tighten ALL hardware assemblies specially those left loosely fasten. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 27 LINEAR SHAFT COVER, ROW/LAT ASM LINEAR SHAFT COVER, ROW/LAT BUTTON HEAD SOC CAP SCREW Z/P 1/4-20 X 1/2 FLAT WASHER SAE Z/P #12 (1/4") Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 28 Qty. Description SHIELD, FRONT ASM SHIELD, REAR (MPC-0103-WLD) FLAT HEAD SOC CAP SCREW Z/P 1/4-20 X 3/4 *134 TOP PLASTIC COVER, ASM LAT *134 Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 29 ALUMINUM CAP WASHER 2 1/2" FLAT HEAD SOC CAP SCREW Z/P 3/8-16 X 1 FLAT WASHER SAE Z/P 3/8" HEX HEAD CAP SCREW Z/P 3/8-16 X 1 1/2 Fully Tighten 100% Wrench tighten all hardware in this step. www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
-
Page 30: Parts List
BNH3078 91 LABEL SERIAL NUMBER CLASS S BNH5186 40 ALUMINUM FOOT ROLL CAP 2" ID BNH3077 92 LABEL TFI TUFFSTUFF FITNESS INTERNATIONAL BNH1058 41 ALUMINUM ROUND COVER PLATE, 2 1/2 BNH2583 93 LABEL WARNING ANCHOR BOLT, 2 X 1 1/4"... - Page 31 COLOR CHART BA-705 *BLACK BOLD = PRE-ASSEMBLED COMPONENTS Parts List BLACK BOLD = SUBASSEMBLY COMPONENTS BLACK = HARDWARE REV1 PART 2 OF 2 ITEM DESCRIPTION REV. PART NO. QTY. ITEM DESCRIPTION REV. PART NO. QTY. 107 LABEL WARNING KEEP BODY, HANDS... 1 1/2 X 2 5/8 BNH2909 124 RUBBER SHOE FOR 1/4 X Ø...
-
Page 32: Pre-Assembled Components
Pre-Assembled Components *36 BNH3533 *134 BNH4362X5 *33 UP8763X1 *23 UP8918X5 www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN... - Page 33 Pre-Assembled Components *10 UP8732X1 www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 34 Pre-Assembled Components UP8743X1 *28 UP8705X1 *11 UP8739X1 *34 BNH3535X1 www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
- Page 35 Pre-Assembled Components 8.000 356 3/4 UP8789 LAT CABLE (BIO-ARC) 8.000 139 1/2 UP8790 LAT WEIGHT STACK CABLE (BIO-ARC) *31 BNH8731X1 UP8795X1 *22 UP8730X1 www.tuffstuffi tness.com BA-705 BIO-ARC LAT PULLDOWN...
-
Page 36: Warranty
Website: www.tuffstuffitness.com This warranty applies only in the United States to the products manufactured or distributed by TuffStuff Fitness International Inc. under the TUFFSTUFF brand name. TuffStuff warrants to the original purchaser that TuffStuff equipment will be free from defects in material and workmanship. All warranty periods begin to run from the date of purchase to the original purchaser.
