www.gltc.co.uk

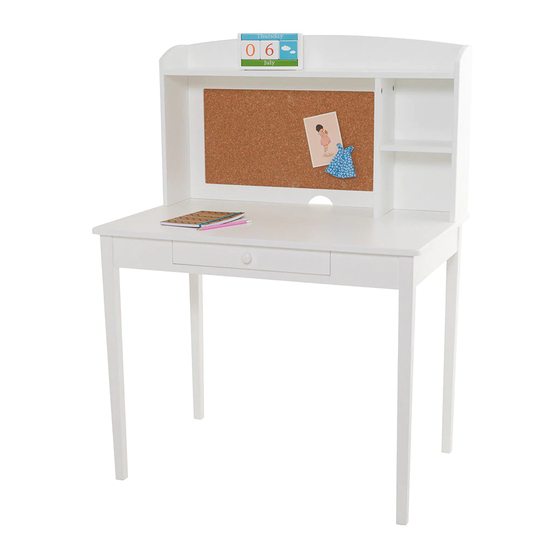

Whittington Desk & Hutch
Assembly Difficulty
easy -
medium
- hard
two-person job
Thank you for shopping with GLTC, we hope you enjoy having this
product in your home.
We know assembling furniture, toys or accessories is not everyone's favourite
way to spend their time, so we've tried to make assembling this item as quick and
painless as possible.
Hopefully our efforts will have been worthwhile and you'll sail through the
whole process. But if it all feels a bit too much like hard work, then we do have
an assembly company we can recommend: the Flatpack Construction Company
offers a nationwide service and can be contacted on 0843 289 4951 or www.
flatpackconstruction.co.uk.
A few important pointers before you start:
•
Please read the instructions right through before you start, and check that all the
components have been included in the pack; we find separating all the hardware
into piles makes it easier to be sure that everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided if required, but screw
drivers and other tools are not. You'll find details of the tools you need at the
beginning of the instructions.
•
It's a good idea to build the unit in the room where you are going to be using it, to
avoid the need to move it after it's been assembled.
•
Do not throw away any packing materials until assembly is complete, just in case
you accidentally discard smaller parts and hardware.
V3
09/02/2017
1
Advertisement
Related Manuals for Great Little Trading Whittington Desk & Hutch
Summary of Contents for Great Little Trading Whittington Desk & Hutch
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and www.gltc.co.uk painless as possible.
-
Page 2: Customer Service
Customer Service: Safety Warnings: • Adult assembly required. • If you find that any components are missing or damaged, please do not begin assembly and do not use the item. Please contact GLTC • Unassembled product contains small parts which may present a Customer Services on 0344 848 6000 immediately. - Page 3 Hardware Check List: Desk with Drawer Component Check List: Desk with Drawer Hutch Component & Hardware Checklist on page 8 You will need: Philips Head Screwdriver (not supplied) 1x Desk Top 1x Drawer Front Panel 2x Cam Dowels Flat ‘L-Shaped’ 45mmL Runners Runners...
- Page 4 Assembly: Assemble the Desk with Drawer first STEP 1: STEP 2: Hardware for Step 1: Hardware for Step 2: Take one of the drawer side panels (E) and insert Take the second drawer side panels (E) and insert a wooden dowel (#3) into the hole closest to the a wooden dowel (#3) into the hole closest to the groove on the end of the panel (E) as shown above.
- Page 5 Assembly: Desk with Drawer Ensure that each cam locks arrow is pointing towards the drill hole on the side edge of the component. STEP 3: STEP 4: Hardware for Step 4: Lay the drawer box on a clean flat surface (preferably Take the drawer front panel Hardware for Step 3: carpet) and insert the drawer base panel (F) into the...
- Page 6 Assembly: Desk with Drawer FRONT HOLE GUIDE BACK When in position, turn the cam locks (#2) clockwise to lock in place. STEP 6: Hardware for Step 6: Attach the ‘L-shaped’ drawer runners (#10) to each of the drawer side panels (E). The guide holes on the bottom edge of the side STEP 5: panels (E) show you which edge to attach the...
- Page 7 Assembly: Desk with Drawer FRONT HOLE GUIDE BACK FRONT BACK Hardware for Step 8: STEP 7: STEP 8: 8x #4 45mm Bolts Hardware for Step 7: Take the desk top (A) and lay it upside-down on a The legs of the desk can now be attached. Take each clean, dry and smooth surface.
- Page 8 Assembly: Desk with Drawer Hardware Check List: Hutch 14x Cam Dowels 16x Wooden Dowels 45mmL 20mmL 14x Cam Locks 8x Screws 14mmDia 30mmL Component Check List: Hutch 1x Back Panel 1x Divider Panel with cork board 1x Shelf Panel 1x Left 1x Right Side Panel Side Panel...
- Page 9 Assembly: Hutch Hardware for Step 2: 2x #2 Cam Locks STEP 2: Lay the left side panel (H) on a flat, clean surface (carpet is best) with its fixings facing up. Take the back panel (G) and position over the hardware as shown, pushing down firmly to connect with the side panel.
- Page 10 Assembly: Hutch STEP 4: Take the top shelf panel (L) and position over the remaining fixings on the left side panel (H). The hardware on the top shelf panel (L) must be facing inside. Push the panel into position and lock the 2 x cam locks (#2) circled by turning clockwise.
- Page 11 Assembly: Hutch Hardware for Step 6: 4x #2 Cam Locks When in position, turn the cam locks (#2) clockwise to lock in place. STEP 6: Take the shelf panel (K) and insert 4 x cam locks (#2) into the drill holes as shown.
- Page 12 Assembly: Hutch STEP 8: Position the right side panel (I) over the part-constructed unit as shown, lining up the hardware on the side panel with the drill holes in the unit. When in position, turn the cam locks (#2) clockwise to lock in place.
- Page 13 Assembly: Hutch Assembly: Attaching the hutch to the desk Hardware for Step 11: 2x #3 Wooden Dowels When in position, turn the cam locks (#2) clockwise to lock STEP 11: in place. Insert 2 x wooden dowels (#3) into the 2 large drill holes on the desk top as shown.
- Page 14 Assembly: Attaching the hutch to the desk Hardware for Step 13: 8x #5 30mm Screws STEP 13: Under the lip of the desk top, there are 8 drill holes (4 along the back, 2 on each side). Insert the 8 x 30mm screws (#5) into these holes to secure the hutch to the desk top.
