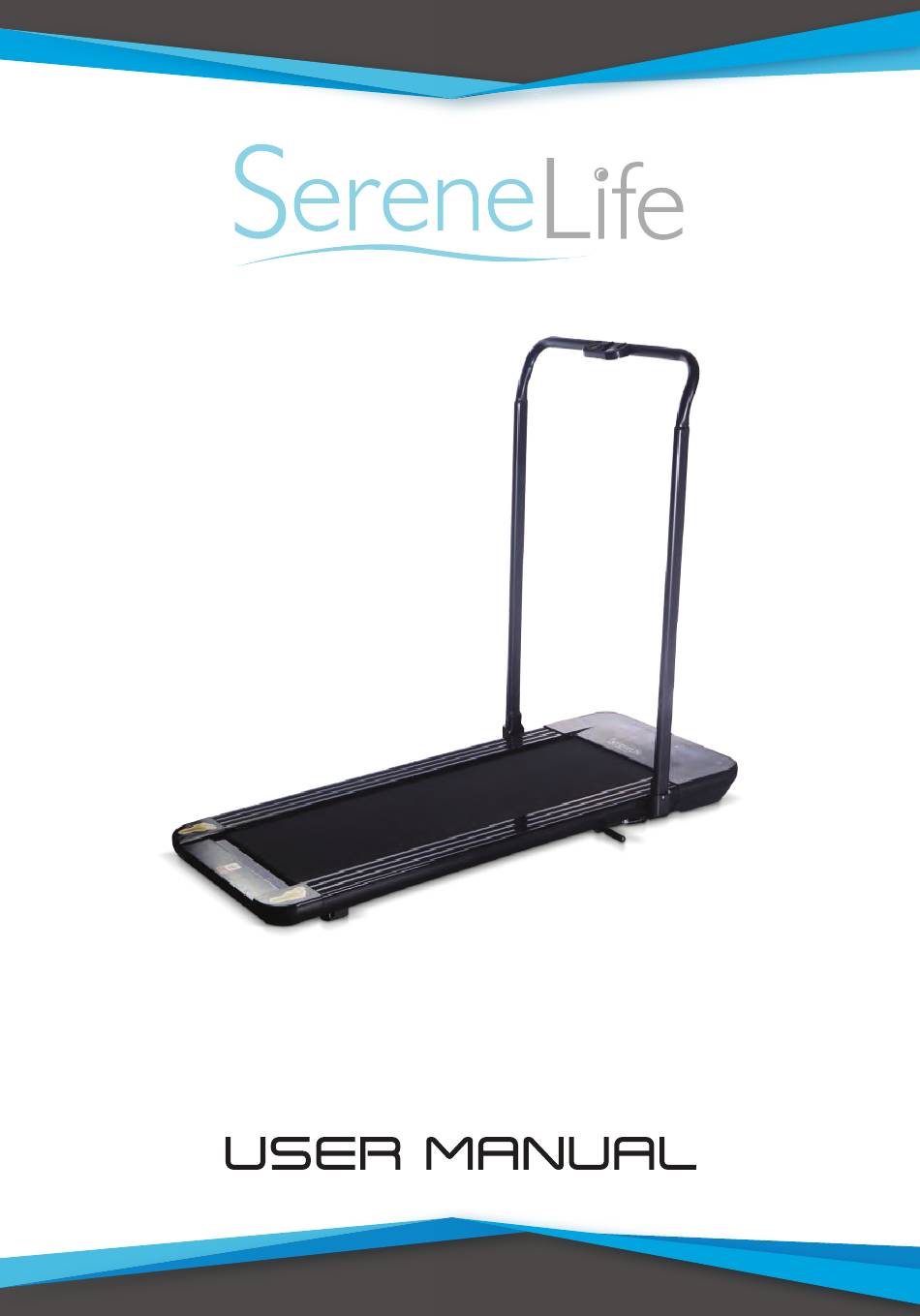

- Page 1 SLFTRD50 Track Base Digital Treadmill...
-
Page 2: Table Of Contents
Please read this manual before installing the Treadmill. Follow the principle of sustainable development, We may update the product when necessary, and no longer notify, If the instructions and products do not match, depending on the actual product. Catalogue Product Introduction . -
Page 3: Product Introduction
Calories/Distance Running Belt Motor Cover Motor Bottom Cover Foot Folding Switch Roller Protect Board Plastic Mat Back Cover THE MAIN PARAMETERS AND CONFIGURATION LIST SLFTRD50 MAIN TECHNICAL PARAMETERS Parameter Name Description Rated voltage 100-120V Rated frequency 50/60Hz Rated power 350W Speed 0.8-6.0Km/h... -
Page 4: Safety Precautions And Warnings
Packing List Name UNIT Treadmill machine Accessories kit Accessories Bag List Name UNIT NAME UNIT Allen wrench 6mm Silicone oil 1 Bottle Manual/Warranty Card/ 1BAG Power supply Quali cation Certi cate 2. Safety Precautions and Warnings Notice: Read all instructions before using this treadmill. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. - Page 5 • The power plug must be reliably grounded, and the socket must have a dedicated circuit to avoid sharing with other electrical equipment. • Keep children away from the machine and to avoid accidents. • The treadmill is intended for in-home use only and not suitable for long time running, which may cause damage to the motor and controller, seed up the wear and aging of bearings, running belts and running boards.
- Page 6 • Please turn o and unplug when not in use. • This product should not be used for a long time. It is recommended to use the treadmill for an interval of half an hour. Using the treadmill for a long period of time may cause overheating of the treadmill’s electrical equipment and may cause electrical failure.
- Page 7 9. There is a person with a perceptual disorder caused by a high degree of peripheral circulatory disturbance caused by diabetes or the like. 10. Injured skin. 11. High fever (above 38 degrees) due to illness. 12. Abnormalities in the spine or bending of the backbone. 13.
- Page 8 • Do not damage or forcibly bend or twist the power cord. Also do not place heavy objects on it. ---- Otherwise it may result in re or electric shock. The walking machine is limited to one person walking. Be careful not to let the surrounding people approach during use.
- Page 9 • This product has a grounding plug. Please make sure the product is linked to a socket that has the same shape as this product. The product cannot use an adaptor socket. • If the power cord is damaged, it must be replaced by the manufacturer, its maintenance department, or a similar professional in order to avoid danger.
-
Page 10: Exercise Advice And Guideline
8. When you need to fold and retract the armrest, use the foot pedal (foot pedal folding switch) to hand-hold the armrest and fold it back as shown in the picture. Foot folding switch This product must be carefully installed by adults. If necessary, ask a professional to install. - Page 11 Repeated warm-up exercises at the end of the exercise can help relieve muscle soreness. We recommend that you follow the illustration below to do the appropriate warm-up and mitigation exercises: Head Exercise The head is stretched rst to the right shoulder, the left neck straightens, and rotates clockwise back;...
-
Page 12: Product Function Description
4. Product Use Function Description Using the Treadmill: 1. Plug in the power, turn on the switch (switch is red) (1), it will light up, then you will hear a "di", then the screen will light up. 2. When not using the tradmill, please keep the safety lock out of the reach of children;... - Page 13 4.2. Speed Plus or Minus keys After the treadmill starts, it can be used to adjust the speed, step 0.1Km/times, and automatically continue to increase or decrease when holding for more than 2 seconds. 5. Display Function 5.1. Step Value Display Window Displays the current value of moves.
- Page 14 1. Check for overload. 2. Check if the mechanical moving parts are stuck. Overload 3. Check if there is a lack of release agent. If there is a protection ER 5 lack of release agent, the friction between the running belt and the running plate will increase. 4.
-
Page 15: Product Maintenance
5. Product Maintenance Warning: Before cleaning or maintaining the product, be sure to remove the treadmill’s power plug. Cleaning: Full cleaning will extend the life of the treadmill. Regularly remove dust to keep parts clean. Be sure to clean the exposed parts of both sides of the running belt, which will reduce the accumulation of impurities under the running belt. - Page 16 Adjustment of running belt centering and tightness It is necessary to adjust the running belt to the best condition in order to use the treadmill and for best results. Running belt centering: • Put the treadmill on a at ground. •...
- Page 17 Then you stand on the running belt and hold the armrests with both hands. Use one force to crush the running belt. (We recommend using the amount of pedaling pressure generated by the user's own weight to step on the running belt.) A.
-
Page 18: Exploded Drawing
6. Exploded View Drawing Parts Name Total Qty. Parts Name Total Qty. Hexagon Countersunk Foot Rails Head bolt Running Belt Foot Rails Buckle Back Roller Locknut M10 Cylindrical head Motor multi-slot belt Socket head bolt Side Rails Belt Adjustment www.SereneLifeHome.com... - Page 19 Parts Name Total Qty. Parts Name Total Qty. Protective plate left and right connecting Transmission wheel piece Roller Protect Board Electronic Control Protective plate shaft Motor Running Board Power Cable Back cover Three in one switch Semi circular head Motor front plastic mat hexagon socket head bolt Plastic mat...
- Page 20 SLFTRD50 Track Base Digital Treadmill Features: • Smart Digital Treadmill Design • Compact Form-Fitting Design for Any Room in the House • Dual Operation: Touch Button Control and Remote Control • Wide Digital LCD Display Screen • Displays Step Count, Speed, Time, Distance and Calories Burned •...
Need help?
Do you have a question about the SLFTRD50 and is the answer not in the manual?
Questions and answers

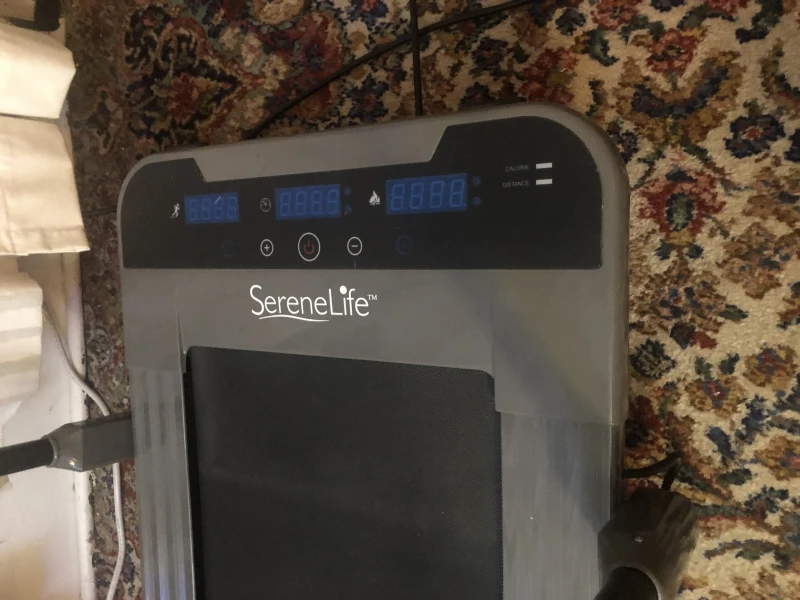

How does cover come off to check motor? We took bolts out but it wouldn’t budge.
To remove the cover on the SereneLife SLFTRD50 treadmill to check the motor, follow these steps:
1. Unlock the motor base – Ensure that any securing bolts or locks on the motor base are loosened.
2. Remove the front guard – Detach the front guard to access the motor compartment.
3. Check the motor – Once the cover is removed, inspect the motor for any issues such as loose cables or wear.
After inspection, reassemble by locking the motor base and reinstalling the front guard.
This answer is automatically generated
