PIC18F57Q43 Curiosity Nano Hardware User Guide

Preface

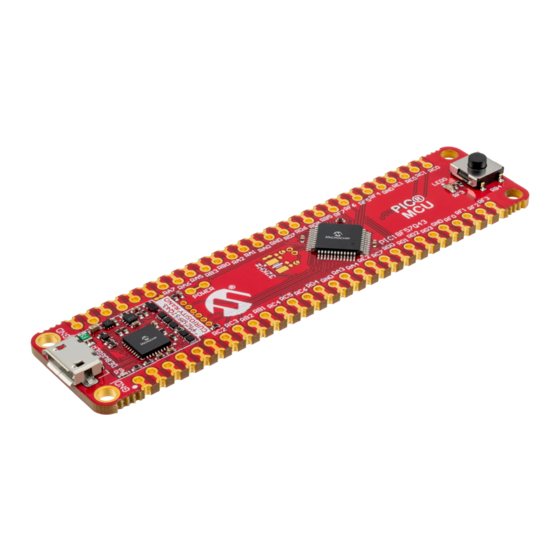

The PIC18F57Q43 Curiosity Nano Evaluation Kit is a hardware platform to evaluate microcontrollers in the PIC18-
Q43 family. This board has the PIC18F57Q43 microcontroller (MCU) mounted.
Supported by Microchip MPLAB
the features of the PIC18F57Q43 to explore how to integrate the device into a custom design.
The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to
program and debug the PIC18F57Q43.
®
•
MPLAB
X IDE
- Software to discover, configure, develop, program, and debug Microchip microcontrollers.
•
Code examples on GitHub
•
PIC18F57Q43 website
•
PIC18F57Q43 Curiosity Nano website
©
2020 Microchip Technology Inc.
PIC18F57Q43 Curiosity Nano
®
X Integrated Development Environment (IDE), the board provides easy access to
- Get started with code examples.
- Find documentation, data sheets, sample, and purchase microcontrollers.
- Find schematics, design files, and purchase this kit.
DS40002186A-page 1
