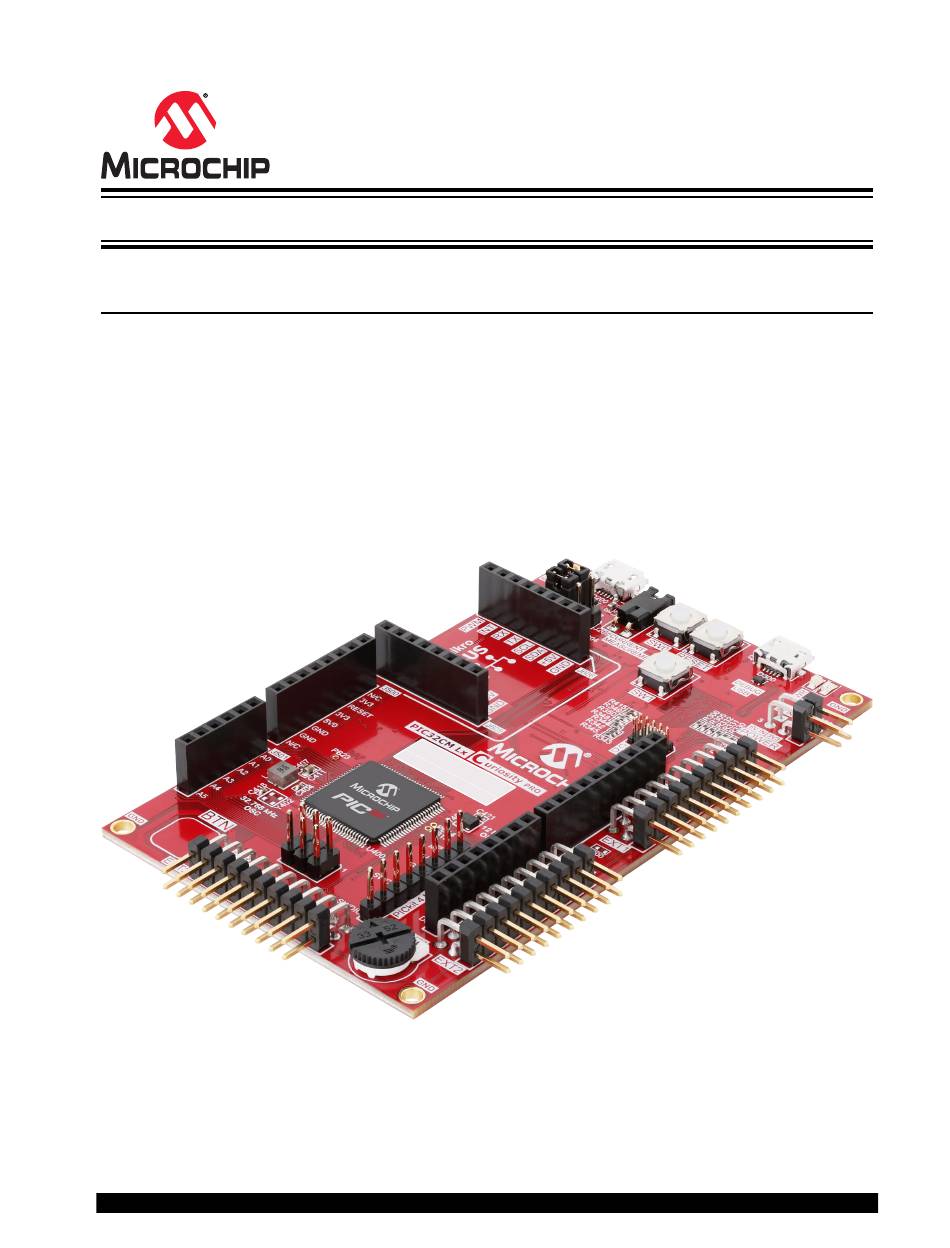

PIC32CM LE00/LS00/LS60 Curiosity Pro User Guide
Preface
®
The Microchip
PIC32CM LE00, PIC32CM LS00, and PIC32CM LS60 Curiosity Pro evaluation kits are hardware
platforms for evaluating the PIC32CM LE00/LS00/LS60 microcontrollers (MCUs). Each evaluation kit is supported by
®
the MPLAB
X Integrated Development Environment (IDE) and MPLAB Harmony v3 featuring application examples.
The Curiosity Pro evaluation kits include an on-board embedded debugger to program or debug the target
microcontroller. This enables an easy start to a project, and provides application examples that can be used in
the design of a custom application.
The Curiosity Pro evaluation kits provide easy access to the features of the microcontroller, and are integrated
with Arduino Uno, mikroBUS
prototyping and expanded functionality.
©
2022 Microchip Technology Inc.
and its subsidiaries
PIC32CM LE00/LS00/LS60
™
, and extension headers to interface with Xplained Pro extension boards for a rapid
User Guide
DS70005443E-page 1
Advertisement
Table of Contents
Related Manuals for Microchip Technology PIC32CM LE00
Summary of Contents for Microchip Technology PIC32CM LE00
-
Page 1: Preface
® The Microchip PIC32CM LE00, PIC32CM LS00, and PIC32CM LS60 Curiosity Pro evaluation kits are hardware platforms for evaluating the PIC32CM LE00/LS00/LS60 microcontrollers (MCUs). Each evaluation kit is supported by ® the MPLAB X Integrated Development Environment (IDE) and MPLAB Harmony v3 featuring application examples. -
Page 2: Table Of Contents
The Microchip Website..........................27 Product Change Notification Service......................27 Customer Support............................27 Microchip Devices Code Protection Feature....................27 Legal Notice..............................27 Trademarks..............................28 Quality Management System........................28 Worldwide Sales and Service........................29 User Guide DS70005443E-page 2 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 3: Introduction

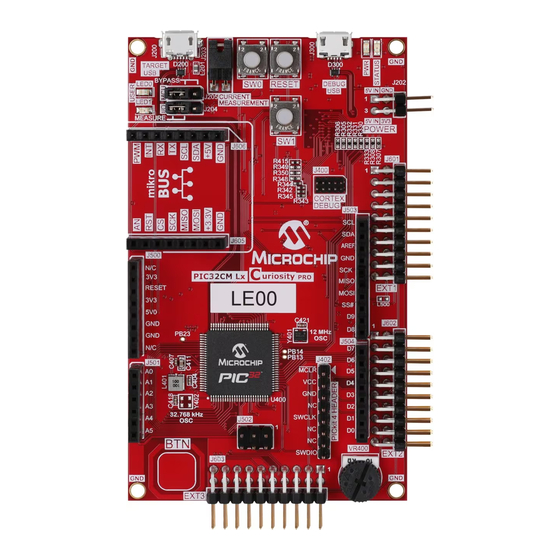

Supported with application examples in MPLAB Harmony v3 Overview of Available Kits The following are part numbers of the three evaluation kits: • PIC32CM LE00 Curiosity Pro – EV80P12A • PIC32CM LS00 Curiosity Pro – EV12U44A • PIC32CM LS60 Curiosity Pro – EV76R77A The evaluation kit offers a set of features that enables the user to start with the microcontroller peripherals immediately and to obtain an understanding of how to integrate the device in their design. - Page 4 PIC32CM LE00/LS00/LS60 Introduction Figure 1-1. PIC32CM LE00/LS00/LS60 Curiosity Pro Evaluation Board Layout (Top View) User Guide DS70005443E-page 4 © 2022 Microchip Technology Inc. and its subsidiaries...
- Page 5 PIC32CM LE00/LS00/LS60 Introduction Figure 1-2. PIC32CM LE00/LS00/LS60 Curiosity Pro Evaluation Board Layout (Bottom View) User Guide DS70005443E-page 5 © 2022 Microchip Technology Inc. and its subsidiaries...
- Page 6 PIC32CM LE00/LS00/LS60 Introduction Table 1-1. PIC32CM LE00/LS00/LS60 Curiosity Pro Board Features and Location Number Item Description PIC32CM LE00/LS00/LS60 Reset button EDBG USB power supply USB interface, Host and device Power Header for external power source Touch button Potentiometer Programmable buttons...
-
Page 7: Getting Started
Curiosity Pro MCU and extension boards that are connected to it. MPLAB X IDE will present relevant information, such as data sheets and kit documentation. The PIC32CM LE00/LS00/LS60 devices can be programmed and debugged by the on-board embedded debugger (EDBG), hence external programmer or debugger tool is not required. -
Page 8: Curiosity Pro
MPLAB X IDE, is used to send and receive data through the DGI. The EDBG controls two LEDs on the PIC32CM LE00/LS00/LS60 Curiosity Pro: a power LED and a status LED. The following table provides how the LEDs are controlled in different operation modes. -
Page 9: Curiosity Pro Embedded Current Measurement Circuitry (Xam)
GPIO: At least one GPIO that is connected to the EDBG from the target MCU is also connected to the current measurement unit to enable the user to sync current measurements with their application. User Guide DS70005443E-page 9 © 2022 Microchip Technology Inc. and its subsidiaries... - Page 10 MPLAB Data Visualizer front end tool. The maximum voltage drops over the shunt resistor is 100 mV, and the XAM will switch the range automatically before this limit is reached. User Guide DS70005443E-page 10 © 2022 Microchip Technology Inc. and its subsidiaries...
-
Page 11: Hardware User Guide
PIC32CM LE00/LS00/LS60 Hardware User Guide Hardware User Guide Power Sources The PIC32CM LE00/LS00/LS60 Curiosity Pro can be powered by several power sources: • EDBG USB • Target USB • External power The following table provides power input requirements. Table 4-1. Power Sources for PIC32CM LE00/LS00/LS60 Curiosity Pro... -
Page 12: Headers And Connectors
4.2.1 Curiosity Pro Power Header The power header (POWER) can be used to connect external 5V power to the PIC32CM LE00/LS00/LS60 Curiosity Pro evaluation kit. The power header can also be used as a supply for external peripherals or extension boards. Care must be taken not to exceed the total current limitation of the on-board regulator when using the 3.3V pin. - Page 13 Ground Power for extension board The PIC32CM LE00/LS00/LS60 extension headers, EXT1, EXT2 and EXT3, offer access to the I/O of the microcontroller to expand the board by connecting extensions. These headers are based on the standard extension header and are specified in the following tables.
- Page 14 PB18 TCC0/WO[0] 8 [PWM(-)] PB19 TCC0/WO[1] 9 [IRQ/GPIO] PB22 EIC/EXTINT[6] - GPIO 10 [SPI_SS_B/GPIO] PA15 GPIO 11 [TWI_SDA] PB30 SERCOM5/PAD[0] I²C SDA EXT1, EXT2, mikroBUS, Arduino, EDBG DGI User Guide DS70005443E-page 14 © 2022 Microchip Technology Inc. and its subsidiaries...
- Page 15 [GND] Ground 4.2.4 Arduino Uno Header Connectors The PIC32CM LE00/LS00/LS60 Curiosity Pro implements Arduino shield header connectors based on the Arduino Uno. All references to the Arduino pin names are considered from the official Arduino schematics of the Arduino Uno.
- Page 16 PA04 SERCOM0/PAD[0] UART TX 3 [D2] PC05 GPIO 4 [PWM/D3] PC06 GPIO 5 [D4] PC07 GPIO 6 [PWM/D5] PC08 GPIO 7 [PWM/D6] PC09 GPIO 8 [D7] PC10 GPIO User Guide DS70005443E-page 16 © 2022 Microchip Technology Inc. and its subsidiaries...
- Page 17 An angled 1x2, 100 mil pin-header marked with CURRENT MEASUREMENT is located at the upper edge of the Curiosity Pro. All power to the PIC32CM LE00/LS00/LS60 is routed through this header. To measure the power consumption of the device, remove the jumper and replace it with an ammeter.
- Page 18 Hardware User Guide 4.2.6 The PIC32CM LE00/LS00/LS60 Curiosity Pro has a USB Micro-AB connector to use with the PIC32CM LE00/LS00/ LS60 USB module, labeled TARGET USB on the kit. In Device mode, for USB self-powered devices, a GPIO (VBUS_DET) is used to detect the VBUS voltage.
- Page 19 MCU Pin Function Shared Functionality 3 [GND] 4 [SWO] 5 [SWCLK] PA30/SWCLK SWCLK EDBG SWD, Cortex Debug 6 [N/C] 7 [N/C] 8 [SWDIO] PA31/SWDIO SWDIO EDBG SWD, Cortex Debug User Guide DS70005443E-page 19 © 2022 Microchip Technology Inc. and its subsidiaries...
-
Page 20: Peripherals
4.3.2 Mechanical Buttons The Curiosity Pro board contains three mechanical buttons: one Reset button connected to the PIC32CM LE00/ LS00/LS60 reset line, and two generic user configurable buttons. When a button is pressed, it will drive the I/O line to GND. - Page 21 One Round Trimming Potentiometer with 10Ω to 2MΩ resistance range is available on the Curiosity Pro board. Table 4-22. Potentiometer Connection Silkscreen Text MCU Pin Function Shared Functionality VR400 PA07 ADC/AIN[5] User Guide DS70005443E-page 21 © 2022 Microchip Technology Inc. and its subsidiaries...
-
Page 22: Embedded Debugger Implementation
4.4.2 Virtual COM Port (EDBG CDC) The Embedded Debugger acts as a virtual COM port gateway using any one of the PIC32CM LE00/LS00/LS60 UARTs. For additional information on how to use the virtual COM port, refer to the Embedded Debugger User Guide. - Page 23 This makes it possible to accurately time stamp events in the application code. Table 4-27. GPIO Lines Connected to the EDBG Schematics Text MCU Pin Function Shared Functionality [DGI_GPIO0] PC13 GPIO [DGI_GPIO1] PC14 GPIO [DGI_GPIO2] PC15 GPIO [DGI_GPIO3] PC16 GPIO User Guide DS70005443E-page 23 © 2022 Microchip Technology Inc. and its subsidiaries...
-
Page 24: Embedded Current Measurement Circuitry (Xam) Configuration
Hardware User Guide Embedded Current Measurement Circuitry (XAM) Configuration On the PIC32CM LE00/LS00/LS60 Curiosity Pro, the MCU and the on-board peripherals or components are powered by their own regulator as shown in the following figure. All other parts of the board, specifically the embedded debugger and accompanying Curiosity Pro Embedded Current Measurement Circuitry (XAM), are powered from a separate regulator. -
Page 25: Product Identifier And Revision
= Product identifier r = Revision s = Board number Table 5-1. PIC32C LE00/LS00/LS60 Curiosity Pro Product Identifiers Family Product Identifier PIC32CM LE00 3365 PIC32CM LS00 3366 PIC32CM LS60 3383 User Guide DS70005443E-page 25 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 26: Revision History
Images were replaced in the following topics: – Preface – Kit Overview – Overview – Headers and Connectors Rev A - 10/2020 This is the initial released version of this document. User Guide DS70005443E-page 26 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 27: The Microchip Website
Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with User Guide DS70005443E-page 27 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 28: Trademarks
The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 29: Worldwide Sales And Service
Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS70005443E-page 29 © 2022 Microchip Technology Inc. and its subsidiaries...
