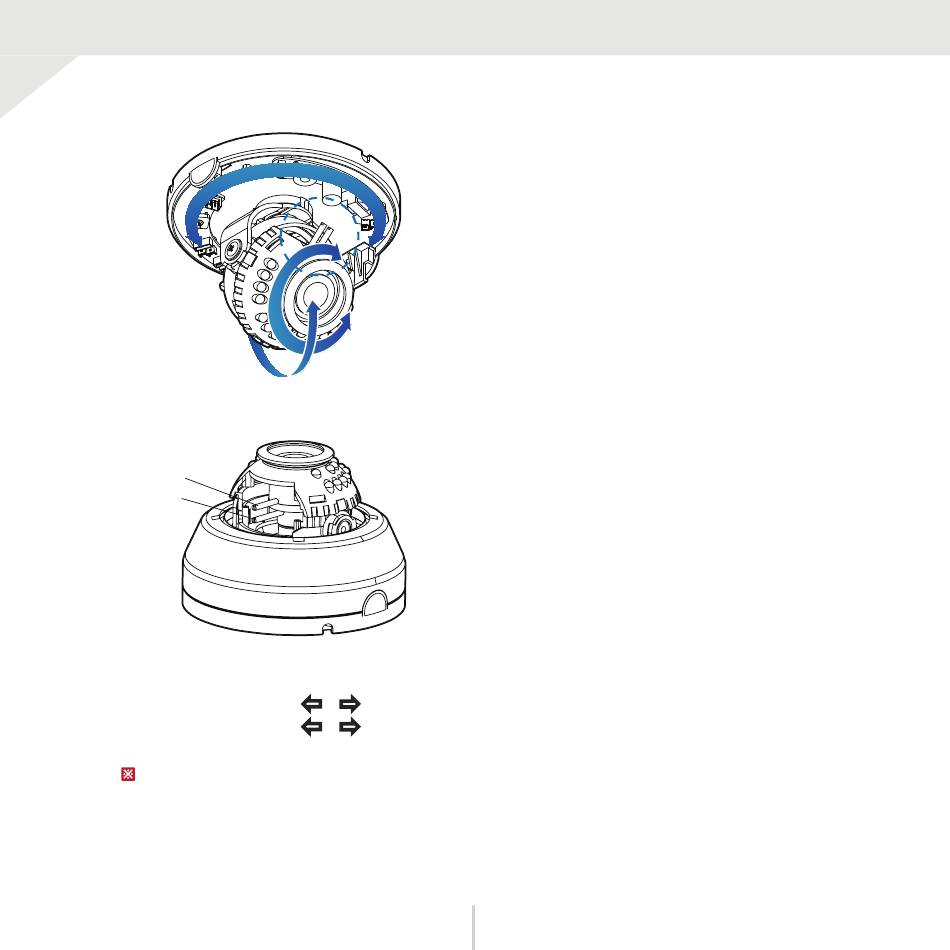

Adjusting the Camera angle
Panning 360°
Rotation 360°
Tilting 70°
FOCUS
ZOOM
Focus: Far
Zoom: Wide
Warning:
- Do not rotate more than 360 ˚
- Do not twist the camera's bracket too
many times.
Adjusting the camera angle
Adjust the camera angle while the camera is
fixed on the ceiling. Pan is used to rotate the
camera's body to left and right, and Tilt is
used to adjust the tilt. Rotating the lens by
its axis is called Rotation.
- Panning: 360°
- Rotation: 360°
- Tilting: 70°
Adjusting the camera lens
1. Remove the camera's dome by pressing
on the sides of the camera body.
2. Unlock the zoom and focus levers by
rotating them counter-clockwise.
3. Adjust the zoom and focus by moving the
Near
lever. Please refer to the diagram below.
Tele
4. After adjustment, tighten the zoom or
focus levers back into lock position.
