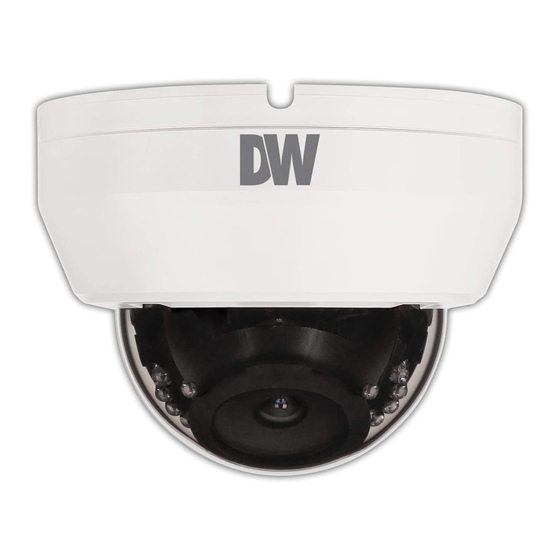

Digital Watchdog Star-Light Plus DWC-D3853WTIRW Quick Start Manual

Quick Start Guide
DWC-D3853WTIRW
WHAT'S IN THE BOX
Screws
Test Video and plastic
1 Set
Cable anchors
Torx Wrench
Torx Wrench DC Plug Cable (2pcs) Test Video Cable
Mounting Quick setup
1
template guide
Template Sheet
Template Sheet Manual
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the
initial setup. It is recommended that the user read the entire instruction
manual for complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday through Friday

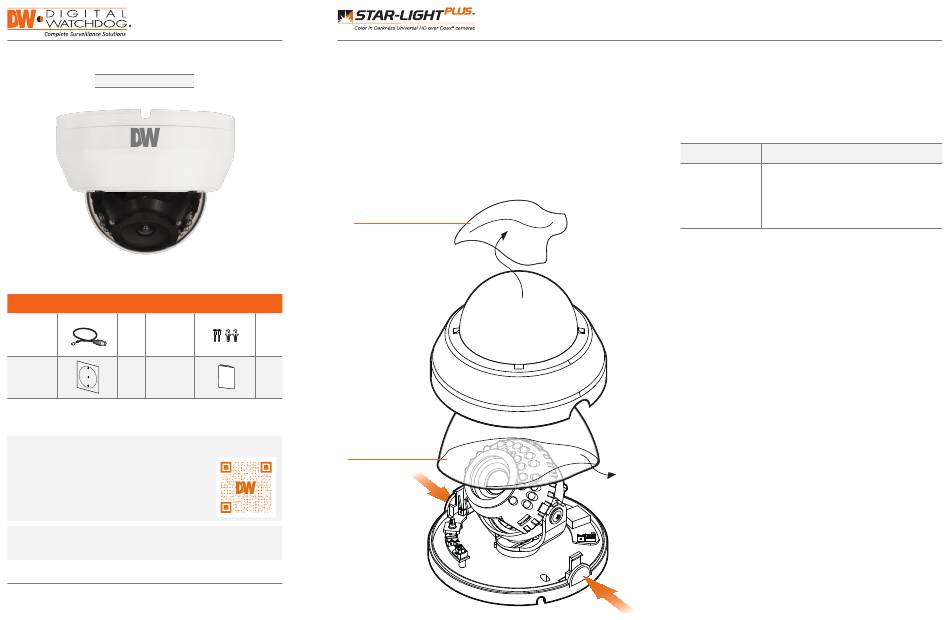

STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the weight of
your camera.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. Detach the camera's dome cover by pressing on the two small
buttons located at each side of the cover dome.
4. Remove the dome protective film before placing the dome back on
the camera base.
Protective cover
1 set
Sunshield cover &
DC Plug Cable
Test Video Cable
Sunshield cover &
1
Screw & Moisture absorber &
Screw & Manual Moisture absorber &
Absorber Guide
Absorber Guide
Protective film
digital-watchdog.com
Quick Start Guide
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the
camera.
Power
Power Consumption
Requirements
DC12V (LED off): 3W, 250mA
DC12V only
DC12V (LED on): 4.04W, 337mA
