Adjusting the Camera angle
Panning
Rotation 360°
Tilting
FOCUS
ZOOM
Focus: Far
Zoom: Wide
360°

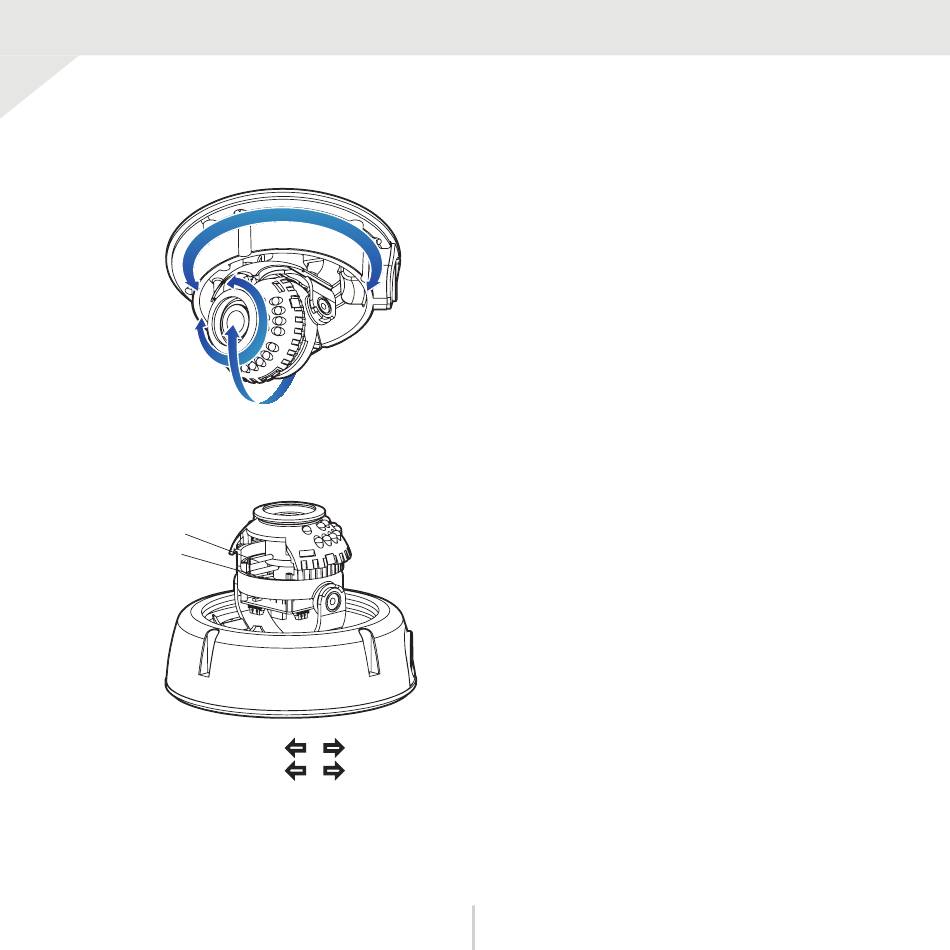

Adjusting the camera angle
Adjust the camera angle while the camera is
fixed on the ceiling. Pan is used to rotate the
camera's body to left and right, and Tilt is
used to adjust the tilt. Rotating the lens by
its axis is called Rotation.
- Panning: 360°
- Rotation: 360°
90°
- Tilting: 70°
Adjusting the camera lens
To adjust the field of view, turn the zoom
screw (-) counter-clockwise and move it to
the left and right to adjust the angle to be
fixed it by turning clockwise.
Adjust the focus the same way as described
above AFTER the desired zoom position is
established.
Near
Tele
