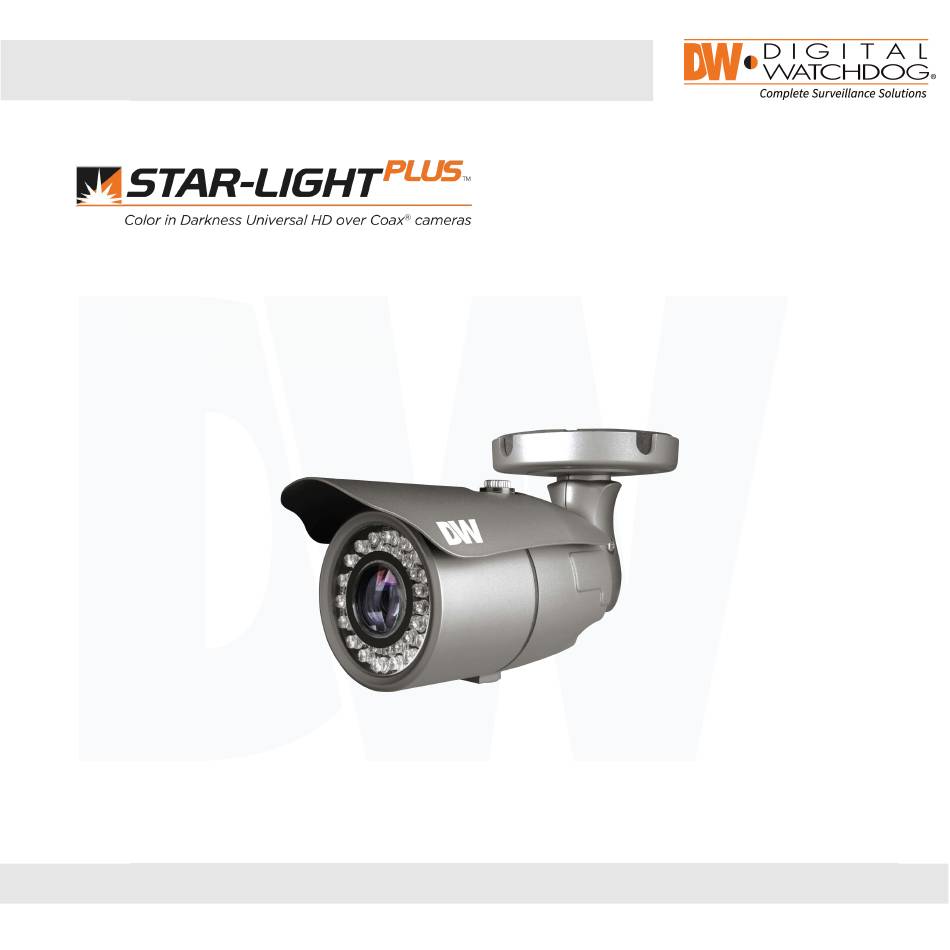

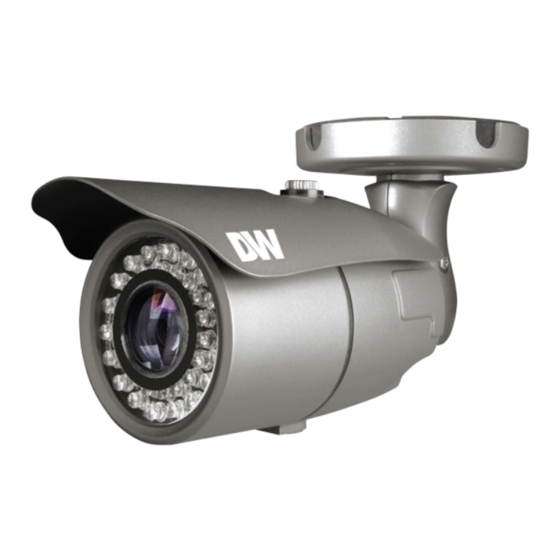

4K Universal HD over Coax
bullet camera
DWC-B6883WTIR
User Manual
ver.: 12/19
Before installing and using the camera, please read this manual carefully.
nstalling and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
to keep it handy for future reference.
®
Advertisement
Table of Contents
Related Manuals for Digital Watchdog Star-light Plus DWC-B6883WTIR
Summary of Contents for Digital Watchdog Star-light Plus DWC-B6883WTIR
- Page 1 4K Universal HD over Coax ® bullet camera DWC-B6883WTIR User Manual ver.: 12/19 Before installing and using the camera, please read this manual carefully. nstalling and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. to keep it handy for future reference.
-
Page 2: Table Of Contents
Contents INTRODUCTION Safety information Features Product and accessories Part names Dimensions INSTALLATION Installation Connecting the camera to monitors Control board Adjusting the camera's angle OSD MENU Menu tree OSD menu - Exposure OSD menu - Color OSD menu - Day and night OSD menu - Function OSD menu - Motion OSD menu - Privacy... -
Page 3: Safety Information
Safety Information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous This exclamation point symbol is intended to alert voltage consisting of a risk of electric shock the user to the presence of important operating... - Page 4 Safety Information 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. If any unusual smells or smoke come from the unit, stop using the product. In such a case, immediately disconnect the power source and contact the service center.
- Page 5 Important Safety Instructions 1. Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated. 2. Keep these instructions. The safety, operating and use instructions should be retained for future reference. 3.
- Page 6 Important Safety Instructions 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Page 7 Disposal of Old Appliances All electrical and electronic products should be disposed of separately from the municipal waste stream in accordance with laws designated by the government or the local authorities. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
-
Page 8: Features
Features Universal HD over Coax ® technology with HD-Analog, HD-TVI, █ HD-CVI and all legacy analog signal support Star-Light Plus™ color in near-total darkness technology █ 1/1.8" image sensor █ 4K at 15fps, 4MP at 30fps, 2.1MP/1080p at 30fps █ 3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus █... -
Page 9: Product And Accessories
Product and accessories Please check if all the camera and accessories are included in the package. Hex Allen wrench DC plug cable Camera Hex Allen DC plug cable Test video cable Sun-shield cover and wrench adjusting screws Mounting template Quick setup Screws and Moisture absorber and absorber guide... -
Page 10: Part Names
Part names Sun-shield adjusting screws Pan/tilt/rotate stopper screw Sun-shield cover Mounting bracket IR module Lens Power cable BNC cable Front case OSD joystick controller Test video output... -
Page 11: Dimensions
Dimensions Unit: inches (mm) 9.92" (252mm) 3.62" (92.2mm) 3.28" 3.8" (96.7mm) (83.5mm) 5.07" (129mm) 3.68" (93.5mm) 8.75" (222.5mm) 3.8" (96.7mm) 3.07" (78mm) - Page 12 Installation - Disassemble the camera Before installing your camera, read the following cautions. 1. The mounting surface must withstand five times the camera weight. 2. Do not let the cables get caught in improper places or the electric line cover can be damaged.
- Page 13 Installation - Instructions Using the mounting template or your camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Pull all necessary wires through and make the proper connections. See page 14. Use the four (4) mounting screws to install the camera onto the mounting surface. See page 15 for tilting and pan adjustment options.
- Page 14 Connecting to Monitors Use the diagram below to connect the camera to a Universal HD over Coax ® or CRT monitor. Universal HD over 12VDC Coax Coax ® Right Left Test video output Monitor Power connection - 12V DC/ 24V AC dual-voltage with auto polarity detection and protection.
-
Page 15: Adjusting The Camera's Angle
Adjusting the Camera angle Pan 360˚ Rotate 360˚ Tilt 90˚ Warning: - Do not rotate more than 360 ˚ - Do not unnecessarily twist too many times. - Page 16 OSD Menu Tree EXPOSURE DAY & NIGHT (IR OPTION) EXPO D&N LENS MANUAL / AUTO MODE AUTO / COLOR / B&W AF MODE / D&N IR LED ON / OFF 2-MOTOR FILTER /INITIAL SMART IR 0 ~ 20 BRIGHTNESS 0 ~ 20 D>N THRES 0 ~ 20 SHUTTER...
- Page 17 OSD Menu Tree MOTION SETUP MOTI DET WINDOWS COMM. CAM ID / BAUDRATE / CONFIRM FRAME RATE / FREQ / SENSITIVITY 0 ~ 10 OUTPUT ANALOG MODE / CONFIRM MOTION OSD OFF / ON LANGUAGE ENG / CHN / CHN(S) / JPN / KOR TEXT ALARM OFF / ON CAM TITLE...
-
Page 18: Osd Menu_Exposure
OSD Menu_Exposure LENS Manual: Manual mode supports the fixed board lens or the manual iris lens. Auto: AUTO mode sets the camera’s iris automatically. EXPOSURE EXPO LENS AUTO 2-MOTOR 2-MOTOR AF MODE ONESHOT BRIGHTNESS D&N FILTER SYNC OFF SHUTTER AUTO INITIAL BACKLIGHT RETURN... - Page 19 OSD Menu_Exposure (cont.) BACKLIGHT EXPOSURE EXPO HME (highlight masking exposure) HME LENS AUTO 2-MOTOR allows objects to appear clearly on the screen by BRIGHTNESS SHUTTER AUTO masking extremely bright areas. To setup BACKLIGHT HME, set the level and color of the HME mask.
- Page 20 OSD Menu_Exposure (cont.) EXPOSURE EXPO LENS AUTO 2-MOTOR BRIGHTNESS SHUTTER AUTO BACKLIGHT STARLIGHT 3D DNR HIGH RETURN Star-Light Plus™ (disabled at 4K/15fps) Off / x2 ~ x32 (default: x4) - Automatically activate the camera’s slow shutter when the image is too dark. High values are not recommended as they may cause the image to lag and increase digital noise.
-
Page 21: Osd Menu_Color
OSD Menu_Color WB MODE COLOR WHITE BAL. C-TEMP 5000K WHITE BAL. AUTO R-GAIN COLOR GAIN B-GAIN RETURN RETURN Auto Compensates for color temperature change between 2400K° and 12000K° . Compensates for color temperature change under 2400K° and over 12000K°. AUTOext Automatically set the white balance based on the current lighting conditions. -
Page 22: Osd Menu - Day And Night
OSD Menu_Day & Night DAY / NIGHT D&N DAY & NIGHT DAY & NIGHT MODE AUTO IR LED MODE COLOR MODE B&W SMART IR IR LED NOT USED IR LED D>N THRES SMART IR NOT USED SMART IR N>D THRES RETURN RETURN D>N THRES... -
Page 23: Osd Menu_Function
OSD Menu_Function FUNCTION FUNC DEFOG SHARPNESS GAMMA 0.55 MODE MANUAL MIRROR LEVEL MIDDLE FLIP RETURN D-ZOOM 1.0X DEFOG RETURN Sharpness 0 ~ 10: Set the image’s sharpness. The higher the number, the sharper the image. Gamma 0.45 ~ 0.75: Select the desired gamma level. 0.55 is the default setting. Mirror, flip Mirror: Reflects the camera horizontally. -
Page 24: Osd Menu_Motion
OSD Menu_Motion The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW DET WINDOW SENSITIVITY WINDOW USE MOTION OSD WINDOW ZONE TEXT ALARM DET H-POS SIGNAL OUT DET V-POS RETURN DET H-SIZE DET V-SIZE RETURN... - Page 25 OSD Menu_Motion (cont.) The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW DET WINDOW SENSITIVITY WINDOW USE MOTION OSD WINDOW ZONE TEXT ALARM DET H-POS SIGNAL OUT DET V-POS RETURN DET H-SIZE DET V-SIZE...
-
Page 26: Osd Menu_Privacy
OSD Menu_Privacy You can hide some parts of the camera’s view to protect your privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon-shaped zones. PRIVACY PRIV ZONE NUM POLYGON ZONE DISP RETURN H-POS... - Page 27 OSD Menu_Privacy (cont.) You can hide some parts of the camera’s view to protect your privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon- shaped zones. PRIVACY POLYGON PRIV ZONE NUM POLYGON ZONE DISP...
-
Page 28: Osd Menu_Setup
OSD Menu_Setup SETUP COMM OUTPUT COMM OUTPUT CAM ID FRAME RATE 2160p 15 LANGUAGE BAUDRATE 9600 FREQ 60HZ CAM TITLE CONFIRM ANALOG MODE HD_T RESET RETURN CONFIRM RETURN RETURN COMM Adjust the camera’s ID and Baudrate. Default Protocol is Pelco-D. CAM ID: Provide an ID number for the camera (0 ~ 255). - Page 29 OSD Menu_Setup (cont.) SETUP COMM OUTPUT LANGUAGE CAM TITLE RIGHT UP RESET RETURN LANGUAGE Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Korea. CAM TITLE Add a name to the camera. Set the title by using the OSD joystick. RIGHT UP / LEFT DOWN RESET Reset the camera to its default settings.
-
Page 30: Osd Menu_Exit
OSD Menu_Exit EXIT EXIT SAVE&EXIT EXIT RETURN SAVE & EXIT Exit the OSD menu after saving the recent changes. EXIT Exit the OSD menu without saving any changes. -
Page 31: Troubleshooting
Troubleshooting Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. -
Page 32: Specifications
Specifications VIDEO Image sensor 1/1.8” CMOS sensors Active pixels 3864(H) x 2176(V) Scanning system Progressive scan Fr equency 60Hz Signal technology Max 4K Synchronization Internal 2160p @ 15fps, 1440p @ 30fps, Resolution 2.1MP/1080p @ 30fps 0.09 lux (color) Minimum scene illumina tion 0 lux (B/W) Video output (Universal: HD-A / HD-TVI / HD-CVI / CVBS) - Page 33 Specifications OPERATIONAL (CONT.) Digital Noise Reduction OFF / LOW / MIDDLE / HIGH White balance AUTO / AUTOext / PRESET / MANUAL Day and night AUTO / COLOR / BW Auto gain control 0 ~ 10 Motion detection ON / OFF (4 zones) Privacy zones ON / OFF (16 boxed zones / 8 polygon zones) Sharpness...
-
Page 34: Limits And Exclusions
This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 16220 Bloomfield Ave... - Page 35 Warranty Information Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
- Page 36 East Coast office and warehouse: 5436 W Crenshaw St., Tampa, FL 33634 ® ® West Coast office and warehouse: 16220 Bloomfield Ave., Cerritos, CA 90703 Phone: 866-446-3595 | Fax: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical support phone: USA and Canada: 866-446-3595 International: +1-813-888-9555 French Canadian: +1-904-999-1309 Technical support hours: Monday-Friday 9:00 AM to 8:00 PM EST...
