Datavideo SE-800 Quick Manual

Transitions with Parameter

Zoom and Wipe Effects

Zoom

(works in conjunction with Border controls)
1: Zoom off to
upper left
3: Zoom off to
upper right
5: Zoom off to
lower left
7: Zoom off to
lower right
9: Zoom off to
center

Wipe

(works in conjunction with Border controls except Soft)
1: Horizontal wipe,
top to bottom
2: Horizontal wipe,
bottom to top
3: Vertical wipe,
left to right
4: Vertical wipe,
right to left
5: Horizontal compress,
top to bottom
6: Horizontal compress,
bottom to top
7: Vertical compress,
left to right
8: Vertical compress,
right to left
www.datavideo-tek.com
Datavideo Technologies Co., LTD
7F, No. 352, Sec.2 Chung Shan Road
Chung Ho City, Taipei Hsien, Taiwan R.O.C.

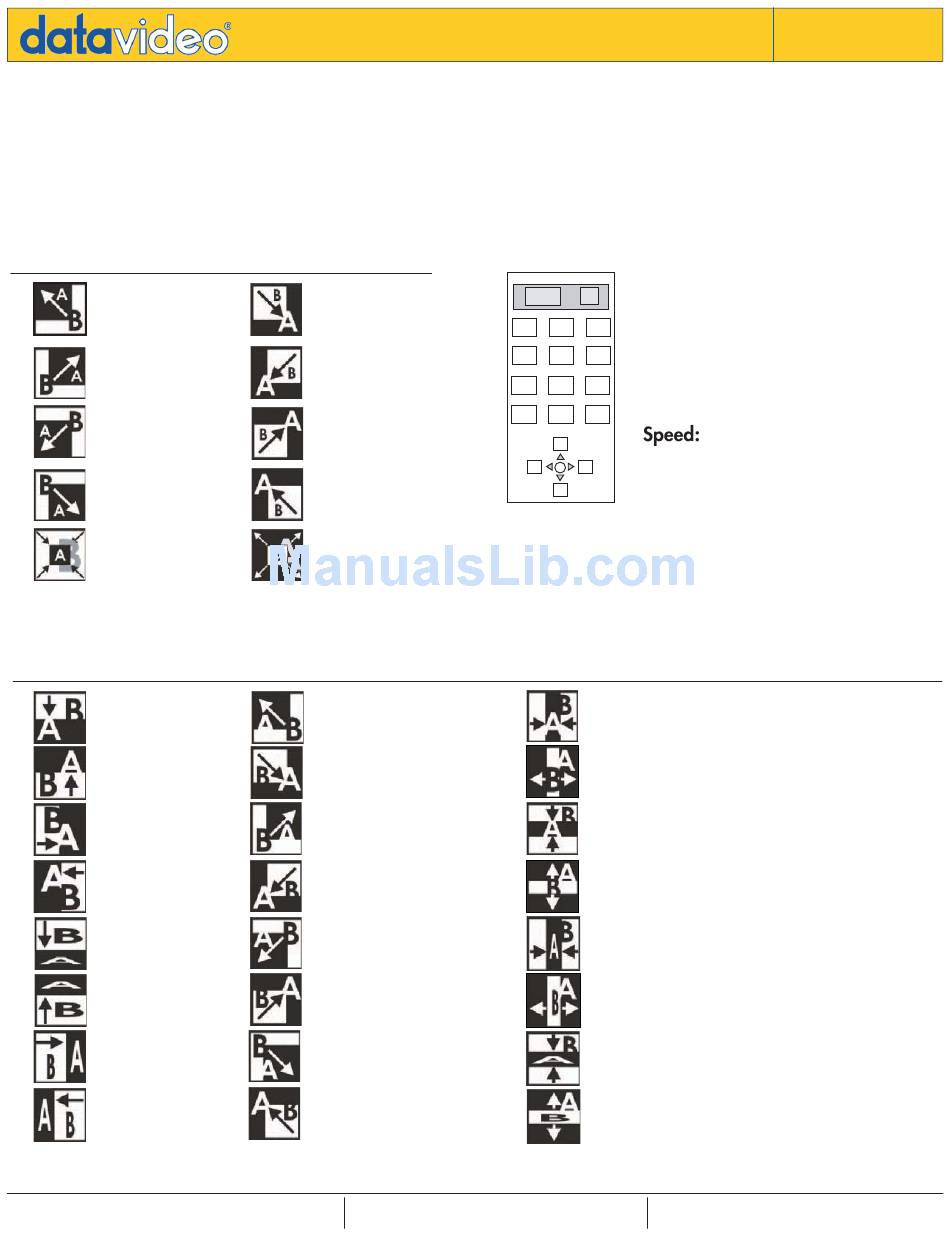

SE-800 Effects: Zoom and Wipe
2: Zoom on from
upper left
4: Zoom on from
upper right
6: Zoom on from
lower left
8: Zoom on from
lower right
10: Zoom on from
center
9: Right angle wipe off,
lower right to upper left
10: Right angle wipe on,
upper left to lower right
11: Right angle wipe off,
lower left to upper right
12: Right angle wipe off,
upper right lower left
13: Right angle reveal,
upper right to lower left
14: Right angle reveal,
lower left to upper right
15: Right angle reveal,
upper left to lower right
16: Right angle reveal,
lower right to upper left
Datavideo Technologies Europe BV
Tel: 866.2.2246.797 9 Californiedreef 26, 3565 BL Ultrecht,
Email: info@datavideo.com.tw The Netherlands
EFFECTS SPEED
1. Select the Zoom or Wipe button
2 3
1
Enter the number of the effect
2.
4 5 6
Press play or use the manual T-bar
3.
8 9
7
to view your effect.
0
ENT SPD
17: Vertical wipe,
left and right to middle
18: Vertical wipe,
middle to left and right
19: Horizontal wipe,
top and bottom to middle
20: Horizontal wipe,
middle to top and bottom
21: Vertical compress,
left and right to middle
22: Vertical expand,
middle to left and right
23: Horizontal compress,
top and bottom to middle
24: Horizontal expand,
middle to top and bottom
Datavideo Corporation USA
Tel: +31.30.261.96.56 12300-U East Washington Blvd.
Email: info@datavideo.nl Whittier, CA 90606 USA
SE-800

Quick Guide

increases or decreases
transition rate
Tel: 562.696.2324
Email: info@datavideo-tek.com
