Front Panel Connections - Datavideo ITC-100 User Manual

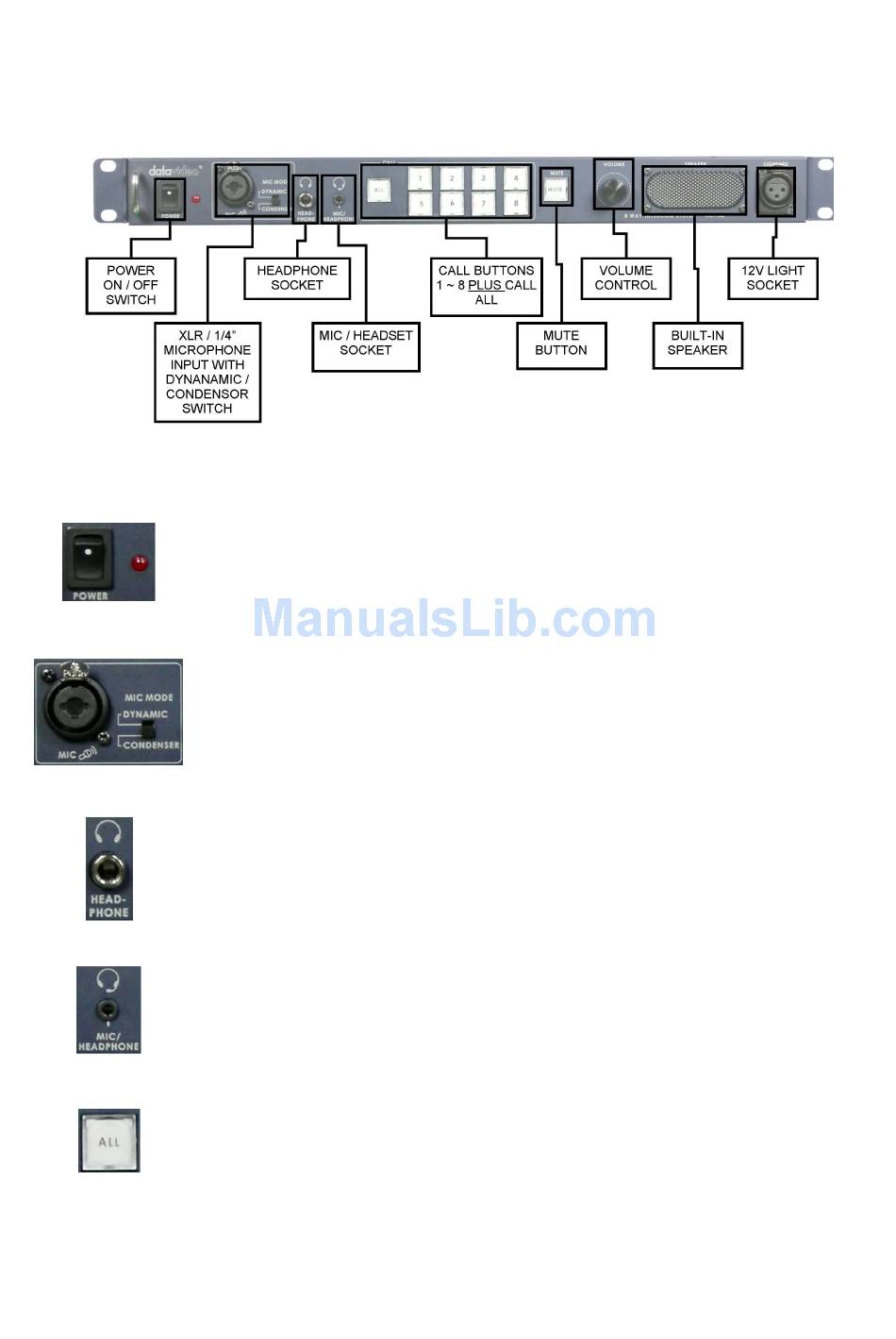

Front Panel:
On / Off Switch
Powers the ITC­100 On / Off. Red LED indicates that unit is switched
on.
XLR Microphone Socket
Combined XLR / ¼" (6.3mm) Jack Microphone Input for either a
Condenser or Dynamic Gooseneck Microphone. XLR supports
Condenser Microphones ¼" (6.3mm) Jack supports Dynamic.
Headphone Socket
¼ " / 6.3mm Stereo Headphone Socket for conventional headphones.
Plugging in headphones will disable the built­in speaker
Microphone / Headset Socket
3.5mm Stereo Socket for combined Microphone Headset.
Plugging in a Microphone / Headset will disable the built­in speaker and
the XLR Microphone Input.
ALL Button
Opens communication with all channels. All channels will hear
communication from the operator, or from any other channel using the
TALK button.
