Using the ITC­100 with the SE­800 / RMC­90:
Using the Datavideo SE­800 / SE­800AV Vision Mixer in combination with the
RMC­90 remote control makes live production really simple.

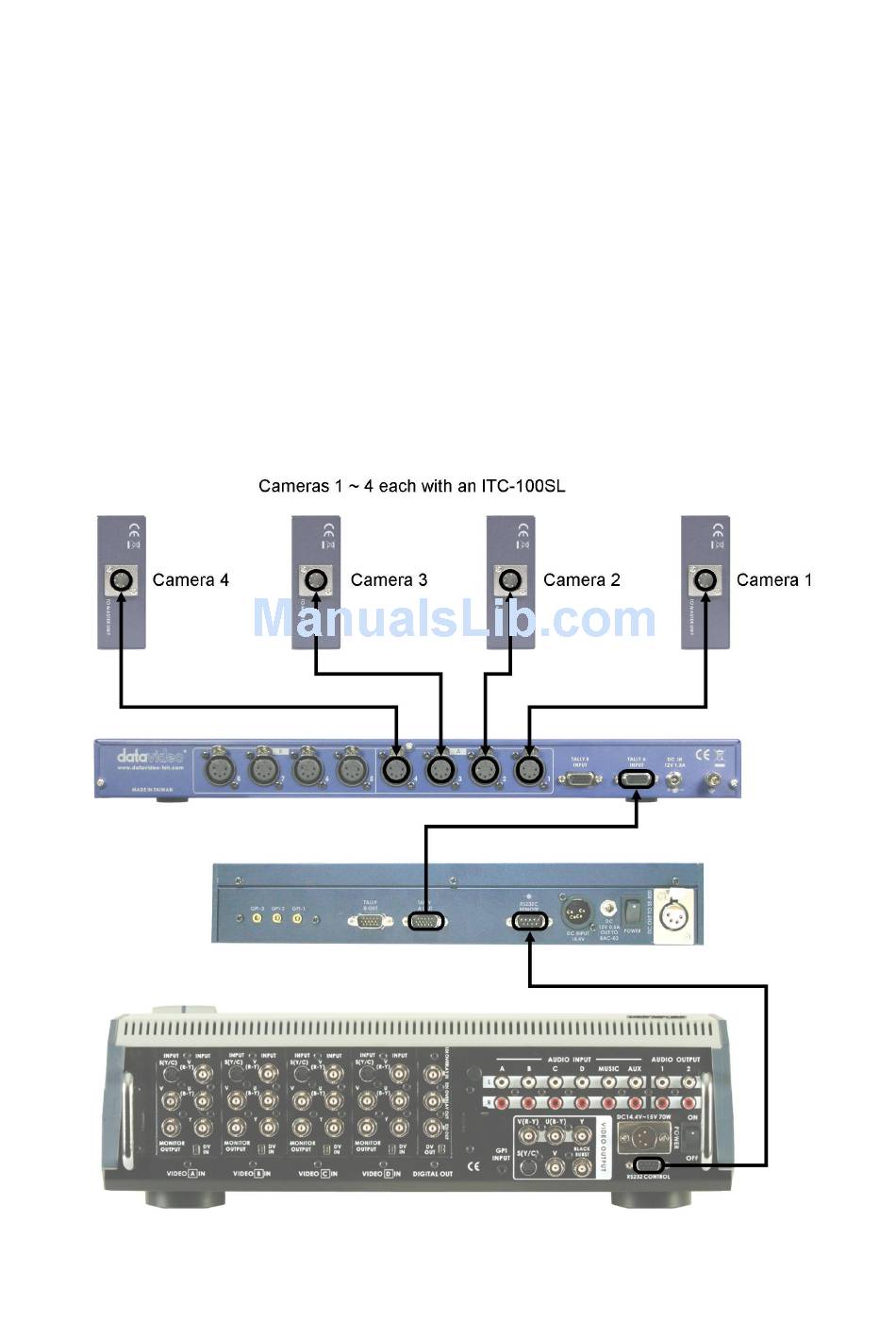

The RS­232 output from the SE­800 connects to the RMC­90; this provides the
status of the SE­800. The RMC­90 Tally Out connects to the ITC­100 Tally Input A.
Tally Input A provides tally information to channels 1 ~ 4. When the camera is live
the cameraman will see a red light, when a camera is cued up the cameraman will
see an amber light.
