Feiss Galena Installation Instructions

Installation Instructions for
Galena Outdoor Post
Outdoor
G ENERAL RODUCT NFORMATION P
This product is safety listed for wet locations.
This instruction shows a typical installation.
1A
Connect the fixture to a suitable ground in accordance to local electrical codes.
1
Connect the white fixture wire to the neutral power line wire with a wire nut.
2
Connect the black fixture wire to the hot power line wire with a wire nut.
3
Secure the fixture to the post with the post screws making sure to neatly tuck in all wiring.
4
Screw the fixture loop to the top of the fixture.
5
Install the candle tube by sliding it over the socket.
6
7 Screw the lamp into the socket. Refer to the label on the socket for Max Wattage Information.
Place the housing over the housing base, and secure it in place using the housing screws.
8
I :

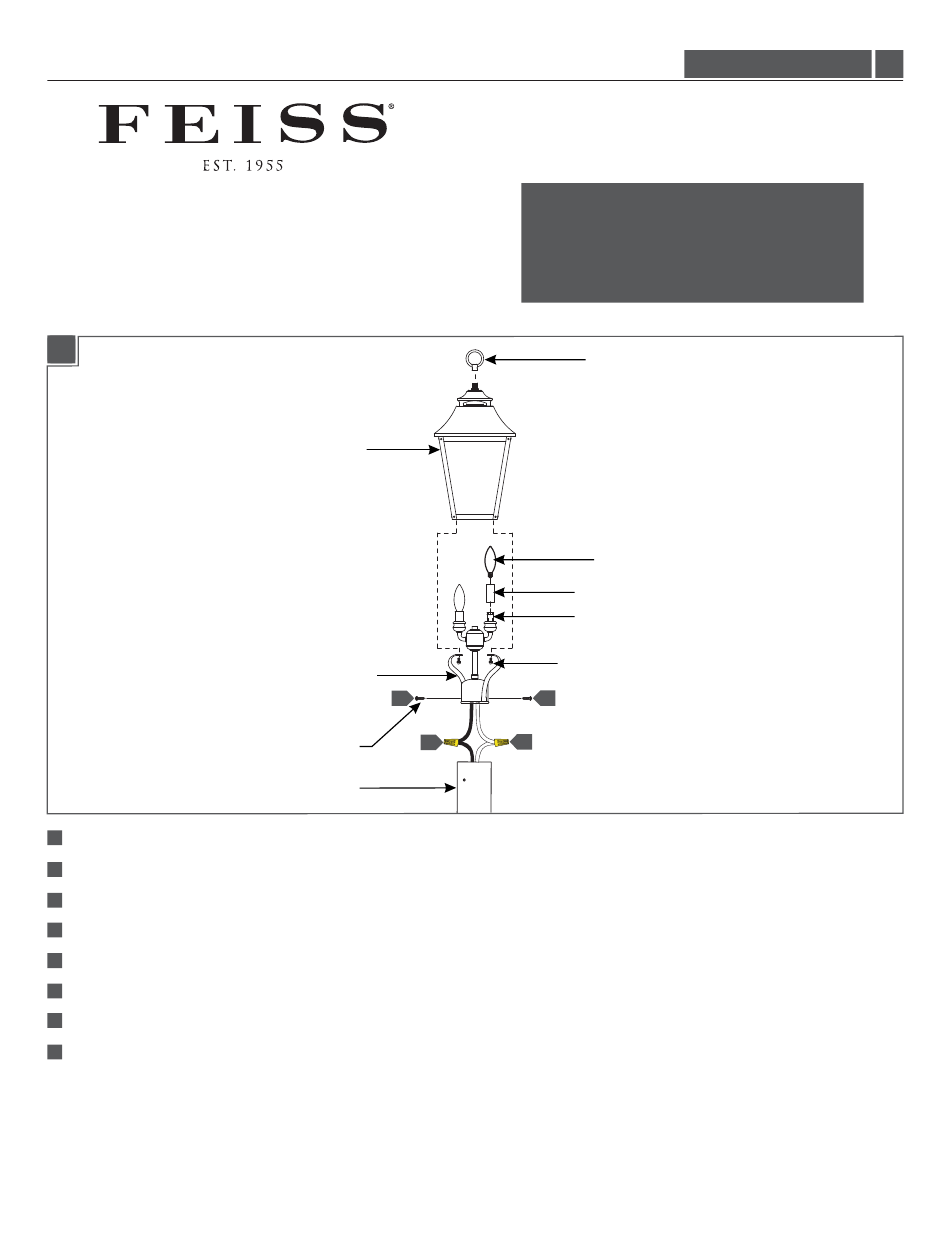

HOUSING
HOUSING BASE
4
3
POST SCREW
POST
CAUTION RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
FIXTURE LOOP
LAMP
CANDLE TUBE
SOCKET
HOUSING SCREW
4
2
1
O 14406- L
OL14406, OL14407
-
OL14407
