Feiss OL10608 Installation Instructions

Installation Instructions for
Shepherd 1 Light Outdoor Post
Outdoor
G ENERAL RODUCT NFORMATION P
This product is safety listed for wet locations.
This product may be dimmed with a standard incandescent dimmer.

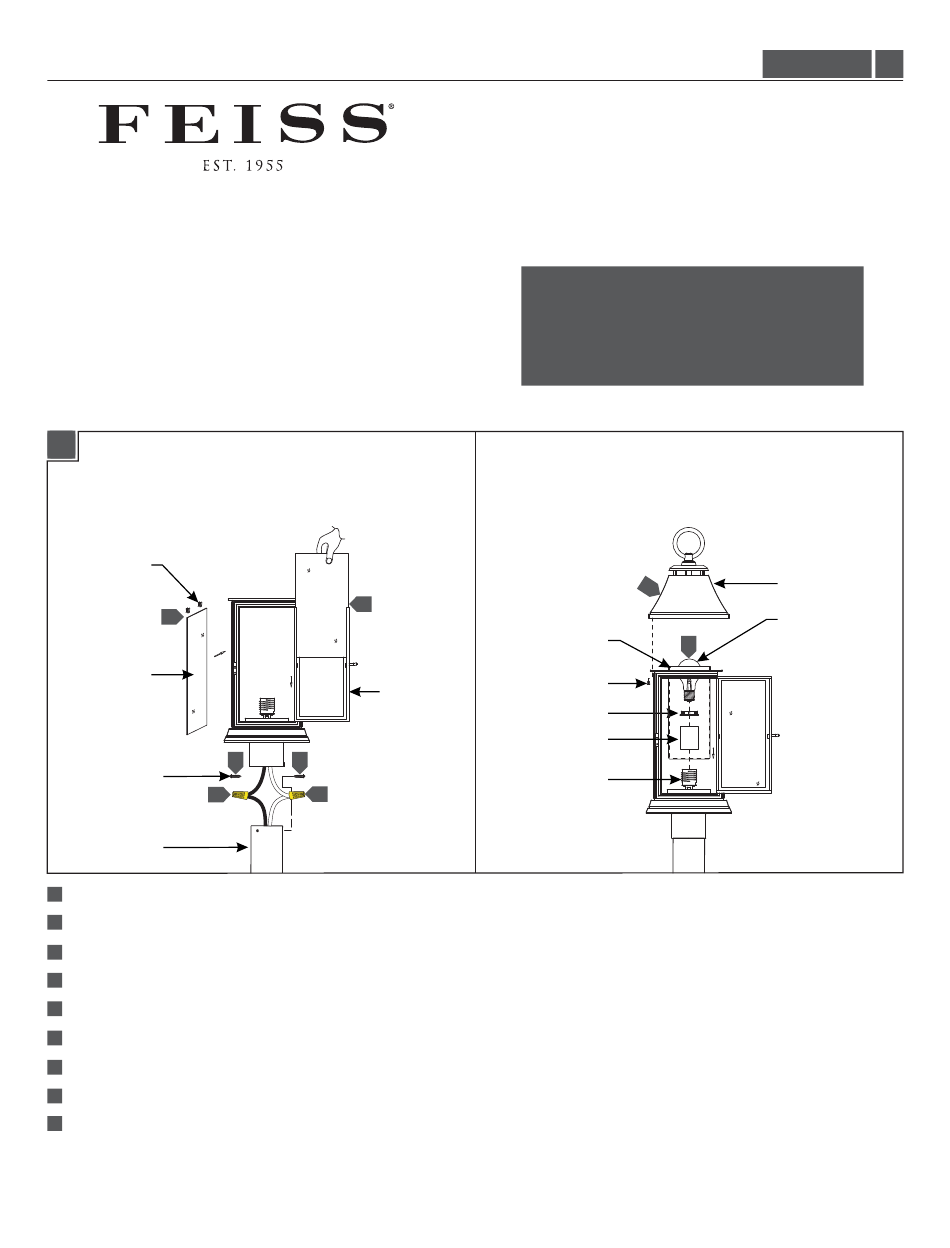

This instruction shows a typical installation.
1A
CLIP
5
GLASS PANEL
POST SCREW
3
POST
1 Connect the fixture to a suitable ground in accordance to local electrical codes.
2 Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
3
4 Secure the fixture to the post with the post screws making sure to neatly tuck in all wiring.
Install all glass panels (except the door) by carefully sliding them into the fixture and securing them using the clips.
5
Place the shade and spacer over the socket and secure them in place by screwing the collar nut onto the socket.
6
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
7
Install the cover to the top of the fixture and secure it using the cover screws.
8
9 Install the door glass panel by carefully sliding it into the door as shown.
I :
9
DOOR
4 4
2
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
8
SHADE
COVER SCREW
COLLAR NUT
SPACER
SOCKET
1
OL10608
OL10608
COVER
LAMP
7
1.1
