Feiss Roscoe OL12907 Installation Instructions

Installation Instructions for
Roscoe Outdoor Post
Outdoor
G ENERAL RODUCT NFORMATION P
This product is safety listed for wet locations.
This instruction shows a typical installation.
1A
Connect the fixture to a suitable ground in accordance to local electrical codes.
1
Connect the white fixture wire to the neutral power line wire with a wire nut.
2
Connect the black fixture wire to the hot power line wire with a wire nut.
3
Secure the fixture to the post with the post screws making sure to neatly tuck in all wiring.
4
Screw the lamp into the socket. Refer to the label on the socket for Max Wattage Information.
5
Insert the diffuser into the diffuser base, place the housing over the diffuser, and secure it in place using the housing
6
screws.
I :

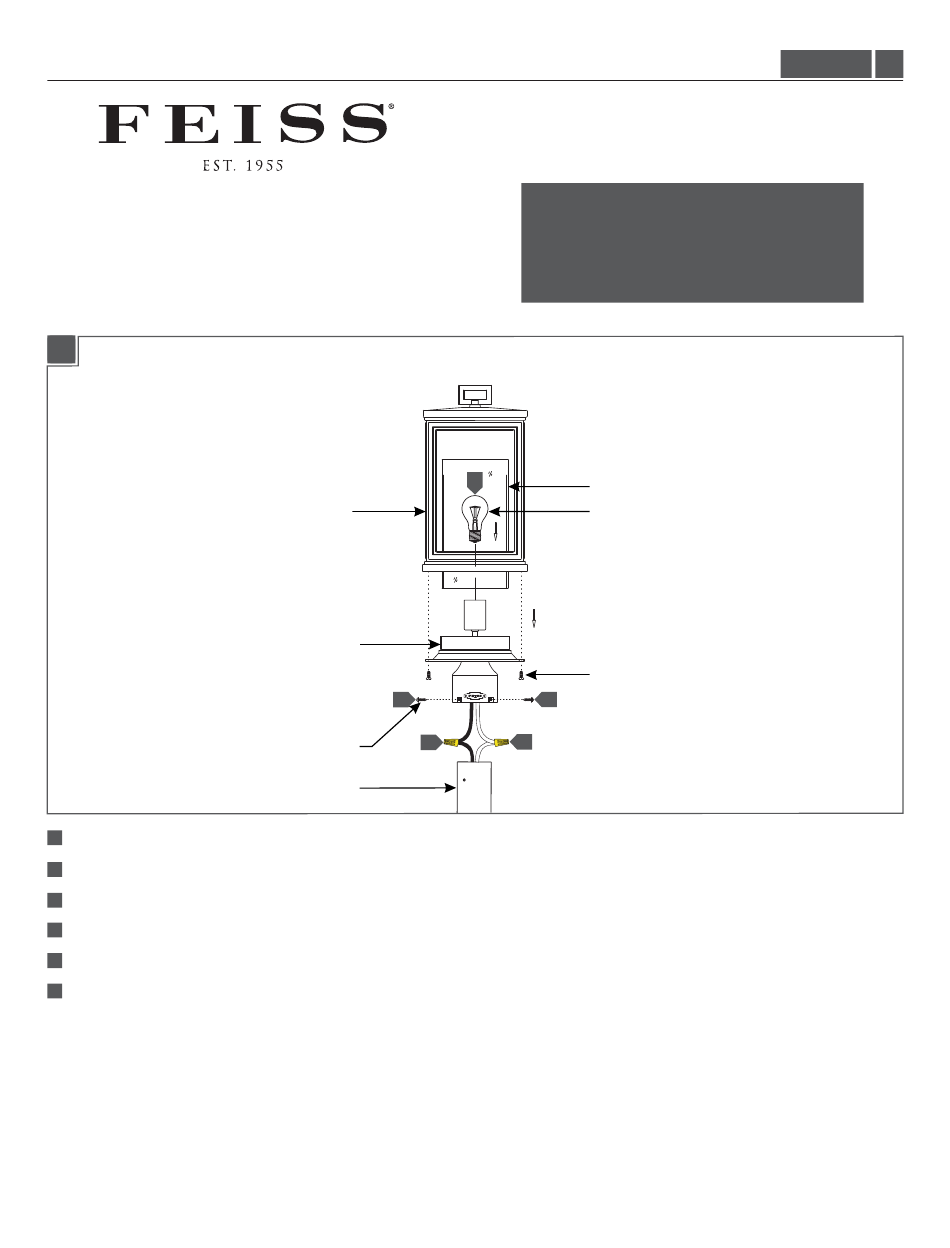

HOUSING
DIFFUSER BASE
4
3
POST SCREW
POST
CAUTION RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
5
DIFFUSER
LAMP
HOUSING SCREW
4
2
1
