Feiss McHenry Installation Instructions

Installation Instructions for
McHenry Outdoor Flush Mount (LED)
Outdoor
G ENERAL RODUCT NFORMATION P
These fixtures are intended to be installed utilizing
junction boxes.
This product is safety listed for damp locations.
For a complete list of dimmers, visit out website at

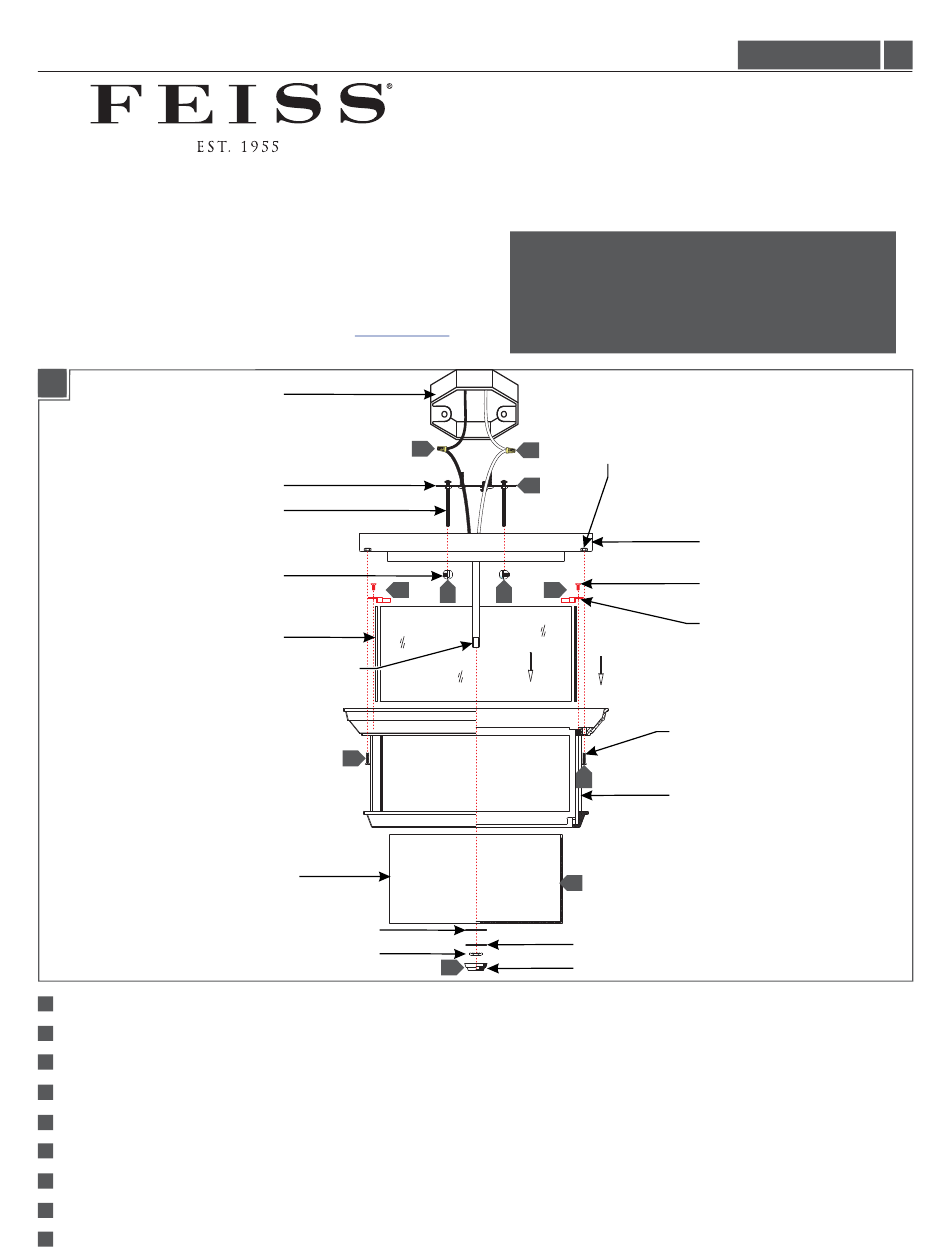

1A

JUNCTION BOX

MOUNTING PLATE

MOUNTING PLATE STUD
OUTER GLASS PANEL
Secure the mounting plate to the junction box.
1 1
Connect the fixture to a suitable ground in accordance with local electrical codes.
2
3 Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
4
Place the fixture base onto the mounting plate studs and secure it with the two cap nuts.
5
Install the outer glass panels by inserting them into the fixture and securing them with the brackets and bracket screws.
6
Install the fixture to the fixture base by screwing the fixture screws into the hex nuts in the fixture base.
7
Place the diffuser, rubber washer, and steel washer onto the threaded pipe (in that order) and secure in place with the hex nut.
8
Screw the finial onto the threaded pipe.
9
I :
NEC compliant
www.Feiss.com
CAP NUT
6
THREADED PIPE
7
DIFFUSER
RUBBER WASHER
HEX NUT
This product must be installed in accordance with the
applicable installation code by a person familiar with the
construction and operation of the product and the hazards
involved.
Use minimum 90°c supply conductors.
4
3
HEX NUT
1
6
5 5
7
8
STEEL WASHER
FINIAL
9
1
OL12813-LED
CAUTION RISK OF FIRE -
FIXTURE BASE
BRACKET SCREW
BRACKET
FIXTURE SCREW
FIXTURE
OL12813-LED
1.0
1
