Feiss Ledgend OL11200 Installation Instructions

Installation Instructions for
Ledgend Outdoor Wall
Wall
G ENERAL RODUCT NFORMATION P
This product is listed by one of the following
" ationally ecognized esting aboratory" N R T
These fixtures are intended to be installed utilizing NEC compliant
junction boxes.
This product is suitable for wet locations.
This product may be dimmed with a low voltage electronic dimmer.

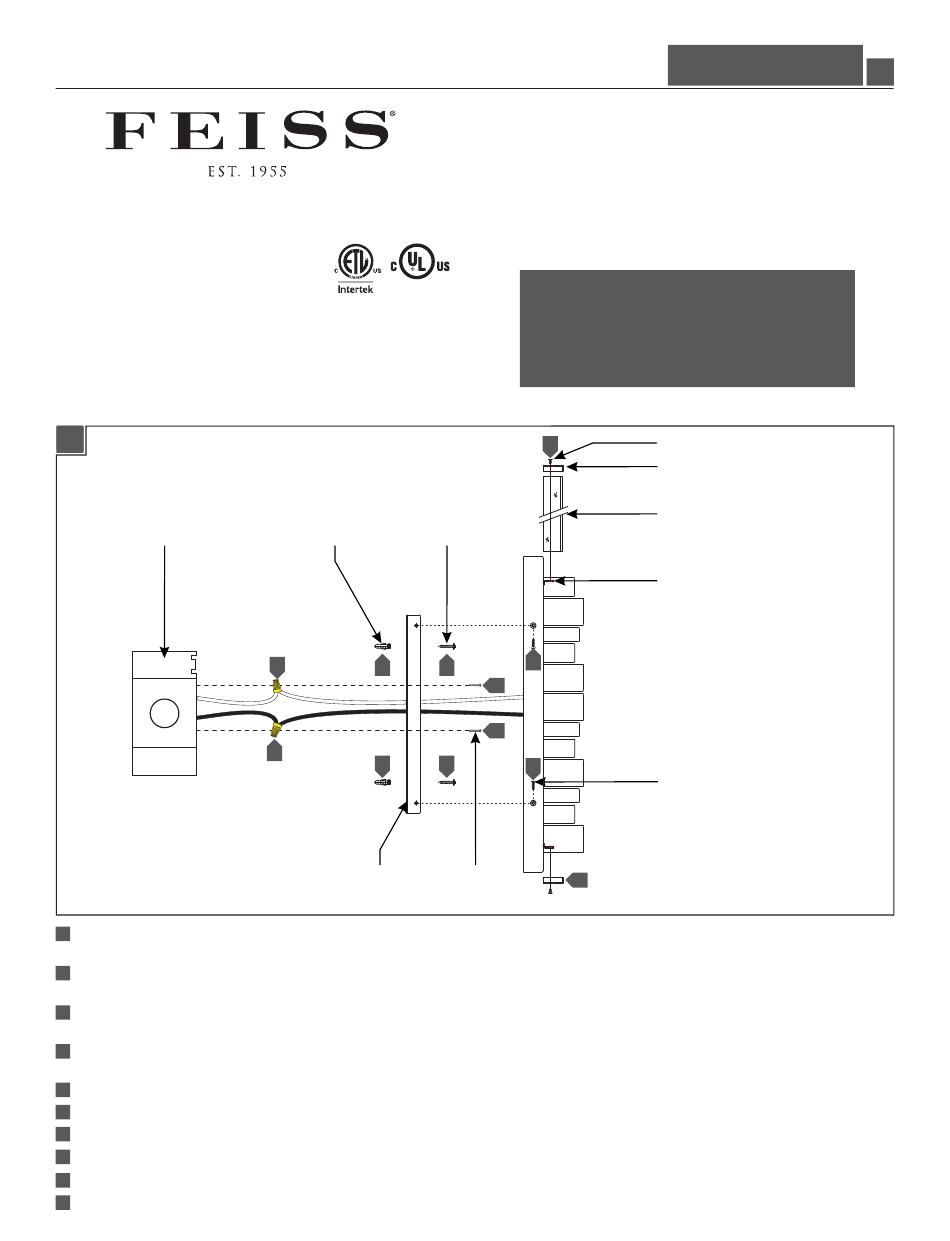

This instruction shows a typical installation.
1A
JUNCTION BOX
Insert the shade into the fixture and onto the brackets, then install the endcaps to both ends of the shade and secure them
1
in place by screwing the endcap screws into the brackets.
For Models OL11201, OL11202, OL11203 Only: Temporarily install the mounting plate to the electrical box with two
2
mounting plate screws.
For Models OL11201, OL11202, OL11203 Only: Mark the anchor hole locations on the mounting plate and remove the
3
mounting plate.
For Models OL11201, OL11202, OL11203 Only: Drill appropriate size holes at the marked locations and install the
4
anchors.
Secure the mounting plate to the electrical box with two mounting plate screws.
5
For Model Numbers OL11201, OL11202, OL11203 Only: Screw the anchor screws into the anchors.
6
7 Connect the fixture to a suitable ground in accordance to local electrical codes.
8 Connect the white driver wire to the neutral power line wire with a wire nut.
Connect the black driver wire to the hot power line wire with a wire nut.
9
Mount the fixture base onto the mounting plate and secure it with the fixture screws.
10
I :
L
ANCHOR ANCHOR SCREW
8
4
9
4
MOUNTING
PLATE
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
1
10
6
5
5
6
10
MOUNTING
1
PLATE SCREW
1
O 11200_OL11201_OL11202_OL11203 L
O 11200, O 11201, L L
O 11202, O 11203 L L
ENDCAP SCREW
ENDCAP
SHADE
BRACKET
FIXTURE SCREW
1.0
