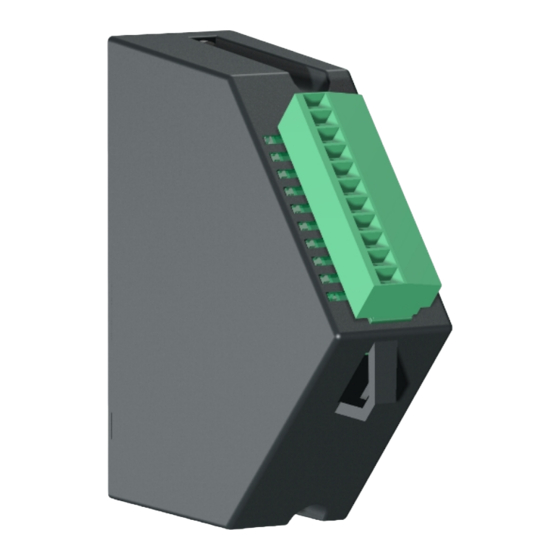

Module Description:
General
Isolation
Power Supply
1
Baud rate
1
Parity bit
1
Data bits
1
Stop Bits
1,3
DTR
1,4
Termination
Note 1: Instrument may not support all options.
Note 2: TX-only transmitter is always active.
Note 3: RS-232 only.
Note 4: RS-485 only.
Module Connections
1 x isolated duplex RS-232 with DTR
1 x isolated TX-only
>500V from indicator to module
Internal
2400, 4800, 9600, 19200, 38400, 57600
None, Even, Odd
7, 8
1, 2
OFF, ON
OFF, ON (Internal)

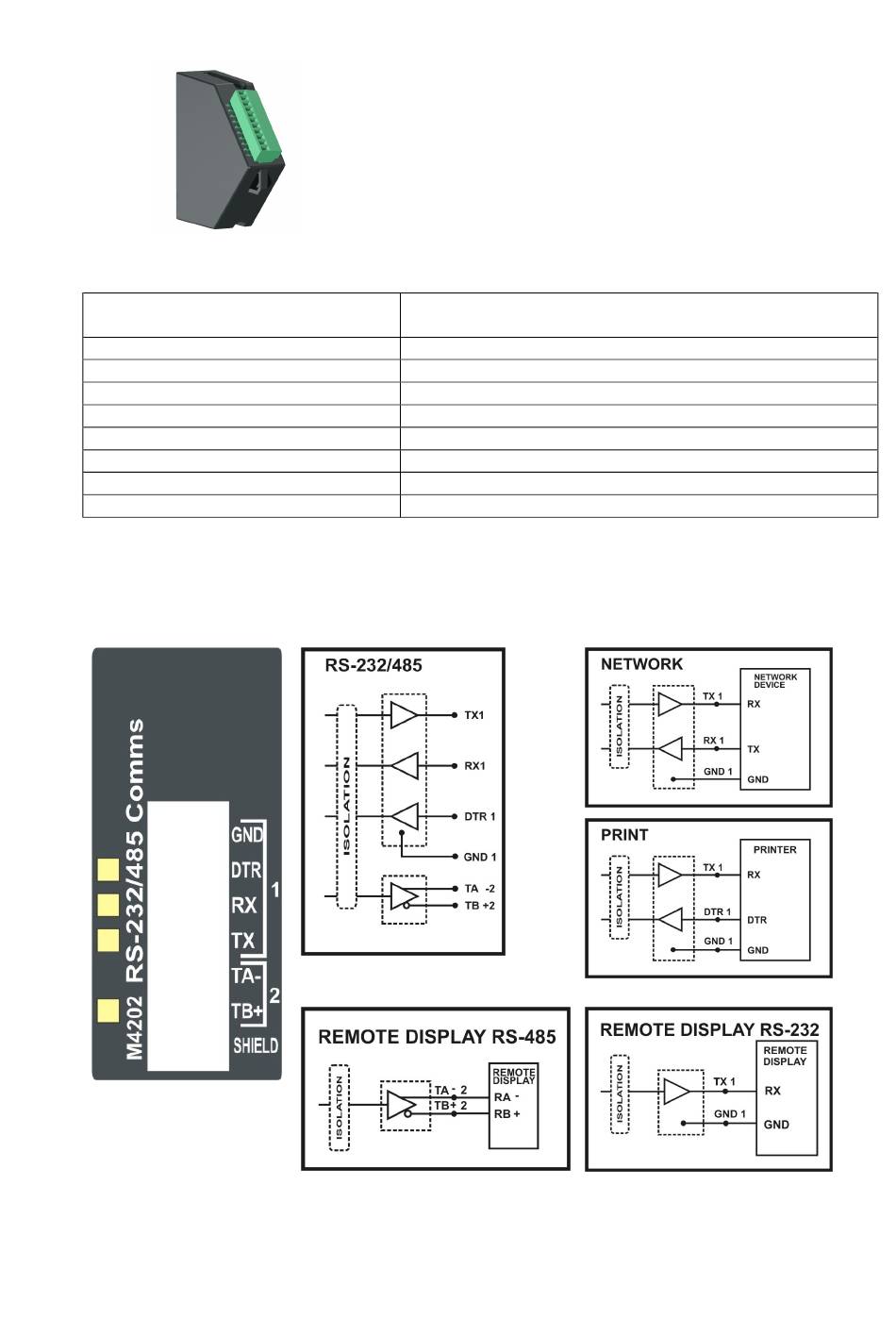

Interface Diagram:
Example Use:
M4202
RS-232/485 Comms
2
RS-485
Example Use:
004M-610-110
Advertisement
Related Manuals for Rinstrum M4202
Summary of Contents for Rinstrum M4202
- Page 1 M4202 RS-232/485 Comms Module Description: General 1 x isolated duplex RS-232 with DTR 1 x isolated TX-only RS-485 Isolation >500V from indicator to module Power Supply Internal Baud rate 2400, 4800, 9600, 19200, 38400, 57600 Parity bit None, Even, Odd...
- Page 2 An overview of the setup is given below; see the indicator Quick Start or Reference manuals for detailed setup information. The indicator provides configuration checking capabilities for the M4202. This is found in the H.WARE setup menu. See the indicator Quick Start or Reference manuals.
