Summary of Contents for Rinstrum 5200

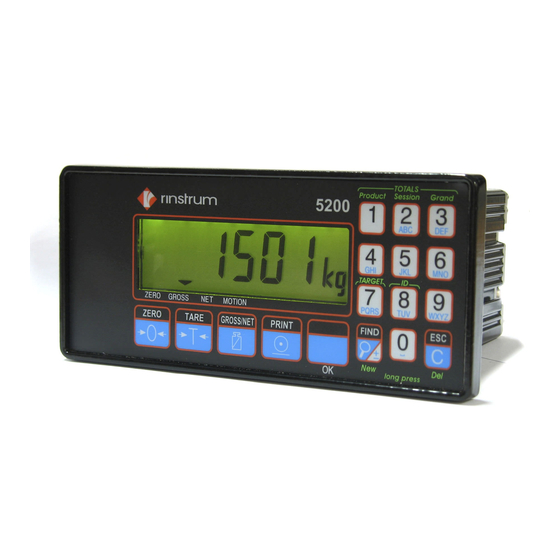

- Page 1 5200 (Totaliser/Checkweigher) Digital Indicator Communications Manual For use with Software Versions 1.0 and above 0025-605-120...
- Page 2 This manual may occasionally make reference to Trade Use settings of the 5200. Only properly marked Trade Certified versions of the 5200 can be used in Legal for Trade applications. Trade Certification is available only on 5200 instruments with software Versions 1.0 and above.
-
Page 3: Table Of Contents
Rinstrum - 5200 Communications Manual Rev 1.2 Table of Contents INTRODUCTION....................... 5 1.1. Audience......................5 1.2. Scope......................5 1.3. Manuals ......................5 1.4. Document Conventions................... 5 CONNECTION OF THE 5200 NETWORK..............6 2.1. RS-232 Connection..................6 2.2. RS-485 Connection..................7 2.3. - Page 4 Rinstrum - 5200 Communications Manual Rev 1.2 2.4.39. TAV: Set Tare Value ..............51 2.4.40. TDD: Load/Save Setup ..............52 2.4.41. VAL?: mV/V Value Query............... 53 2.4.42. WMD: Set Weighing Mode............. 54 2.4.43. ZST: Zero Settings ................. 55 COMMAND SUMMARY..................56 3.1.
-
Page 5: Introduction
The extended protocol allows for complete calibration and control of a multi-drop network of up to 32 5200 instruments. This protocol is used by the View5200 program to calibrate and configure the 5200 instruments. The Viewer TEST tab can be used as a convenient terminal to test the 5200 communications. -
Page 6: Connection Of The 5200 Network
Rinstrum - 5200 Communications Manual Rev 1.2 Connection of the 5200 Network 2.1. RS-232 Connection Figure 2: RS-232 Network Connection - 5200 to PC Using COM1 Figure 3: RS-232 Network Connection - 5200 to PC Using COM2 Page 6 0025-605-120... -
Page 7: Rs-485 Connection
Rinstrum - 5200 Communications Manual Rev 1.2 2.2. RS-485 Connection Figure 4: Multi-Drop Networking Connections - Connecting to First Instrument Figure 5: Multi-Drop Networking Connections - Connecting to Next Instrument Page 7 0025-605-120... -
Page 8: Overview
Indicates that the command was either not understood or could not be performed. Specific queries cause the 5200 to respond with the data requested by the query. For example, if the 5200 was setup with address 4 it would respond with 04 to the ADR? query. 2.3.3. Parameters The following rules apply to parameters: •... -
Page 9: Termination
60000 the 5200 operation is blocked and it must be returned to the factory. Note that the 5200 does not check to see if the new data is different from the old data before incrementing the Trade Counter, so sending IAD1,6000 will increment the counter even if the 5200 is already setup with a fullscale of 6000 kg. -
Page 10: Command Details
0 to 1 (0: Off, 1: On) calibration during motion The 5200 performs an automatic temperature calibration to ensure that changes in ambient temperature do not affect accuracy. During this calibration no new data is received. The time taken for this calibration depends on the sync frequency according to the following formula: 6 / sync frequency (seconds). -
Page 11: Adr: Set Address
The ADR command is used to assign the instrument address via the communications network. The following procedure can be used if a 5200 (with a known serial number) and an unknown (or not unique) address is attached to a multi-drop network. -
Page 12: Asf: Set Filtering
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.3. ASF: Set Filtering This is used to set the filtering characteristics of an instrument. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 On TDD1 Parameter Details... -
Page 13: Bdr: Set Baud Rate
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.4. BDR: Set Baud Rate This is used to set the communication parameters, baud rate, parity, etc. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details... -
Page 14: Cdl: Set Zero
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.5. CDL: Set Zero Set the zero dead load cancellation. This is equivalent with pressing the <ZERO> key on the front of the instrument. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 15: Chk: Set Checkweigh (Catchweigh) Options
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.6. CHK: Set Checkweigh (Catchweigh) Options Set the checkweigh options. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description Range Default Required Trigger Option... -
Page 16: Clk: Set Clock
1 to 31 Month 1 to 12 Year 0 to 99 (or 2000 to 2099) The year may be in 2 digit or 4 digit format. The 5200 will always respond to queries in 2 digit format. Example Command Response Details S01;... -
Page 17: Cof: Set Output Format
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.8. COF: Set Output Format This is used to set the default output format and reading of the MSV? query. It also sets the format for the automatic serial outputs. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... - Page 18 Rinstrum - 5200 Communications Manual Rev 1.2 Note: The status bits are added together. For example, a status of 6 (4+2) means the weight reading is gross, not within centre of zero, there is no motion and all limit values are inactive.
-
Page 19: Cwt: Set Calibration Weight
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.9. CWT: Set Calibration Weight Set the calibration weight to be used for span calibration. This must be set before using the LWT; span calibration command. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 20: Dsp: Set Display Options
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.10. DSP: Set Display Options Set the backlight and auxiliary display operation. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description Range Default... -
Page 21: Dtf: Set Time And Date Format
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.11. DTF: Set time and date format Sets the time and date default formats for printing. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details... -
Page 22: Enu: Set Units
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.12. ENU: Set Units Sets the units of weight to be displayed and printed. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description... -
Page 23: Esr: Query Error Status
Status Information Latched The 5200 contains both current and latched error status flags. The latched errors are only cleared by resetting the instrument (ie. using the RES command or powering off). The response string is four hexadecimal characters representing the 16 error bits. - Page 24 Rinstrum - 5200 Communications Manual Rev 1.2 The status bits are additive. For example, if the load cell cable is disconnected and therefore neither sense line is connected, the resulting status setting will be 00C0 (0040 + 0080). The numbers add in hexadecimal as follows:...
-
Page 25: Fcn: Function Key Setting
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.14. FCN: Function Key Setting Alter the role of the front panel function key. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description... -
Page 26: Fop: Force Output
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.15. FOP: Force Output Use this command to force an output either On or Off. This is only available for outputs that are setup with no other function. Use the query to obtain the state of the four outputs. -
Page 27: Iad: Set Scale Build
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.16. IAD: Set Scale Build This is used to set the scale build parameters. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description... -
Page 28: Icr: Set Measurement Rate
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.17. ICR: Set Measurement Rate Set the fundamental measurement frequency of the instrument. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description Range... -
Page 29: Idn: Set Identification
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.18. IDN: Set Identification This is used to set the instrument identification string. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Command Parameter Details Parameter Description... -
Page 30: Lbt: Button Lock Settings
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.19. LBT: Button lock settings Sets the operation status of each of the four front panel buttons. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details... -
Page 31: Ldw: Calibrate Zero Dead Weight
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.20. LDW: Calibrate Zero Dead Weight This command is used to calibrate the zero dead weight. It is possible to calibrate the zero dead weight by either having no load on the scale base or by entering the calculated signal directly. -
Page 32: Lic: Linearisation
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.21. LIC: Linearisation This command gives access to the multi-point linearisation functions. A special query, LIC?;, is available to verify the linearisation correction. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 33: Liv: Set Limit Value
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.22. LIV: Set Limit Value This is used to set parameters for the setpoints. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description... -
Page 34: Lwt: Calibrate Span
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.23. LWT: Calibrate Span This is used to calibrate the span. It is possible to calibrate the span by either having no load on the scale base or by entering the calculated signal directly. -
Page 35: Msv?: Query Measured Weight Value
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.24. MSV?: Query Measured Weight Value This is used to query weight readings. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Parameter Details Parameter Description Range Default Required Type of... -
Page 36: Mtd: Motion Setting
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.25. MTD: Motion Setting Set the motion option. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description Range Default Required Motion setting 0.5d in 1 sec 1.0d in 1 sec... -
Page 37: Pcd: Motion Setting
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.26. PCD: Motion Setting Enter the full passcode to unlock access to the trade specific settings. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Immediately The FULL passcode is used to control access to trade sensitive parameters. If this passcode is used it also blocks communications access to these same parameters. -
Page 38: Pev: Custom Print Events
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.27. PEV: Custom Print Events Set the custom print events. Refer to the 5200 Digital Indicator Reference Manual for more information. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 39: Prd: Product Information
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.28. PRD: Product Information Sets the product information and reads the totals information for each product plus the session and grand totals. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... - Page 40 Rinstrum - 5200 Communications Manual Rev 1.2 Example Command Response Details S01; Select Instrument 1 PRD?”APPLE”; "APPLE",5,0,0,1000,0,0,0,0,0 Query product APPLE ,0,0,0,0,0,0,0,0,0,0,0,0,0 CRLF PRD?,2; "APPLE",5,0,0,1000,0,0,0,0,0 Query product APPLE using its ,0,0,0,0,0,0,0,0,0,0,0,0,0 CRLF PRD”APPLE”,,, 0 CRLF Set product “APPLE” for: • Pallet weight (Preset Tare): 10,500,20;...
-
Page 41: Prs: Printer Settings
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.29. PRS: Printer Settings General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Parameter Details Parameter Description Range Default Required Page Height 0 to 255 (0: unlimited) -
Page 42: Prt: Print
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.30. PRT: Print Force the instrument to print, query the print log or query the unique print id. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Parameter Details Parameter Description... -
Page 43: Pst: Print Strings
PST: Print strings Set the print strings. Print strings include the header, footer and the three user strings. Refer to the 5200 Digital Indicator Reference Manual for more information. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 44: Rbt: Remote Button Settings
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.32. RBT: Remote Button Settings Setup the function of each of the remote inputs or artificially simulate a remote input. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1... -
Page 45: Res: Reset
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.33. RES: Reset This is used to simulate a power-on reset. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Example Command Response Details S01; Select Instrument 1 RES; Reset Instrument... -
Page 46: Ser: Set Serial Communications Settings
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.34. SER: Set Serial Communications Settings This is used to set the serial mode settings for each serial port. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1... -
Page 47: Stp: Stop Continuous Transfer
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.35. STP: Stop Continuous Transfer This is used to stop continuous weight transmission started by MSV?0. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Example Command Response Details S01;... -
Page 48: Sxx: Select Instrument
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.36. Sxx: Select Instrument This is used to select one or more instruments with which to communicate. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Special case xx Range Options... -
Page 49: Tar: Tare
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.37. TAR: Tare Force a Tare operation. This command is the same as pressing the <TARE> key on the instrument except that it does not wait for no motion. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 50: Tas: Gross/Net
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.38. TAS: Gross/Net Select Gross or Net weight display. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Automatic Immediately Parameter Details Parameter Description Range Default Required Gross/Net Gross Example:... -
Page 51: Tav: Set Tare Value
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.39. TAV: Set Tare Value Set a numeric tare value directly. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Automatic Immediately Parameter Details Parameter Description Range Default Required Tare Value... -
Page 52: Tdd: Load/Save Setup
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.40. TDD: Load/Save Setup This is used to save or restore instrument settings. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter Yes (TDD0 only) Parameter Details Parameter Description Range... -
Page 53: Val?: Mv/V Value Query
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.41. VAL?: mV/V Value Query Query the current mV/V signal value. The result is returned such that 20000 = 2.0000 mV/V. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 54: Wmd: Set Weighing Mode
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.42. WMD: Set Weighing Mode Set the weighting mode of the instrument. This selects between Single Range, Dual Range and Dual Interval weighing modes. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter... -
Page 55: Zst: Zero Settings
Rinstrum - 5200 Communications Manual Rev 1.2 2.4.43. ZST: Zero Settings Set the various options associated with zero balance. General Details No. of Parameters Save Changes Changes Used Increment Trade Counter With TDD1 Immediately Yes (except for Zero on Startup) -
Page 56: Command Summary
Rinstrum - 5200 Communications Manual Rev 1.2 Command Summary 3.1. Set Communication Parameters Command Description Page Set instrument address Set communications parameters Set instrument identification Serial options Select instrument for communication 3.2. Set Scale Build Command Description Page Set max1,e1,max2,e2,decimal point,x10 mode... -
Page 57: General Commands
Rinstrum - 5200 Communications Manual Rev 1.2 3.6. General Commands Command Description Page Set Zero Dead Load. Force print Tare instrument Select Gross or Net Set numeric Tare Save or restore instruments settings 3.7. Queries Command Description Page ESR? Query error status... - Page 58 Rinstrum - 5200 Communications Manual Rev 1.2 Notes: Page 58 0025-605-120...
- Page 59 Rinstrum - 5200 Communications Manual Rev 1.2 Notes: Page 59 0025-605-120...
