Module Description:
General
Isolation
Power Supply
1
Baud rate
1
Parity bit
1
Data bits
1
Stop Bits
1
DTR
Note 1: Instrument may not support all options.
Module Connections
1 x isolated duplex RS-232 with DTR
1 x isolated TX-only RS-232
>500V from indicator to module
Internal
2400, 4800, 9600, 19200, 38400, 57600
None, Even, Odd
7, 8
1, 2
OFF, ON

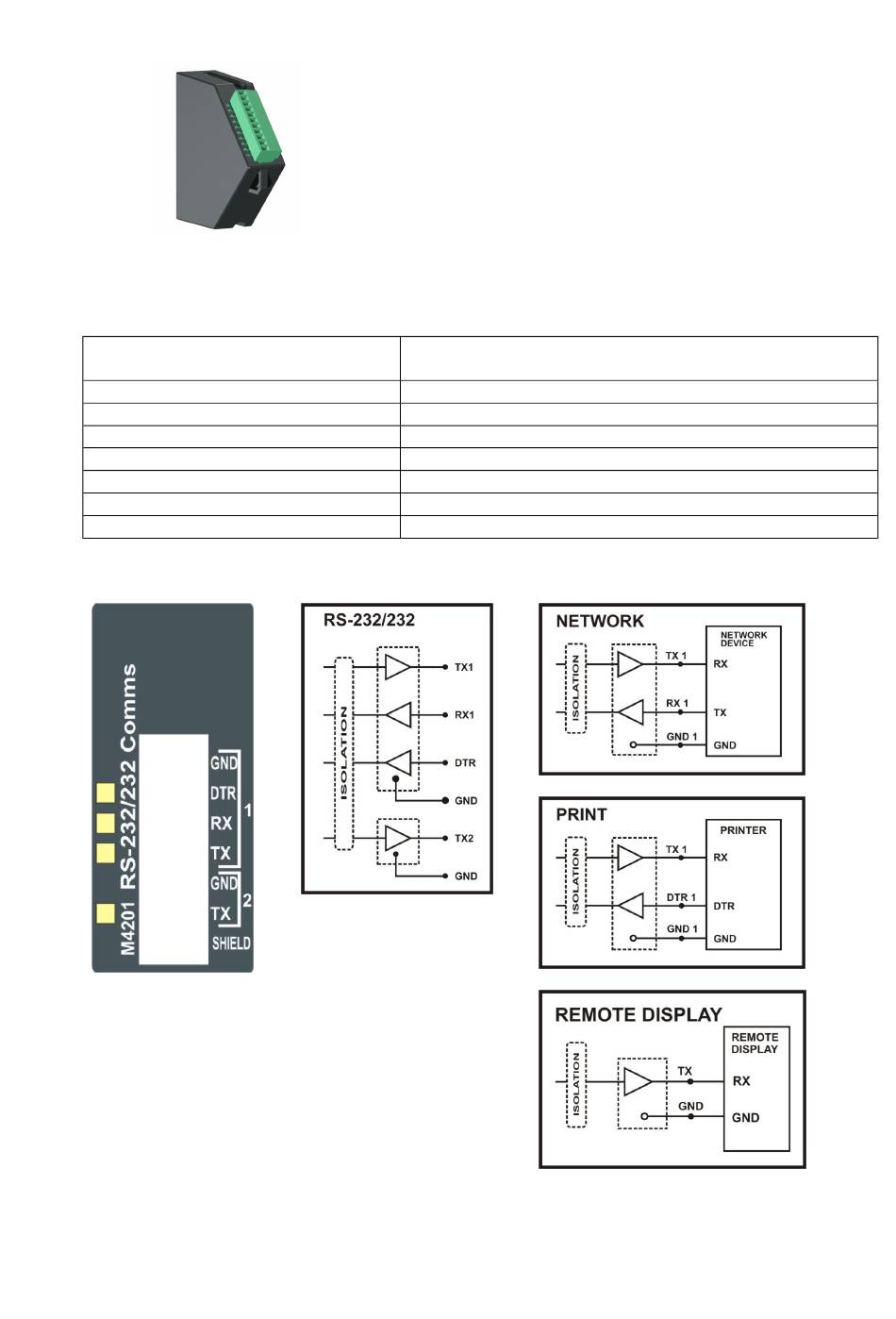

Interface Diagram:

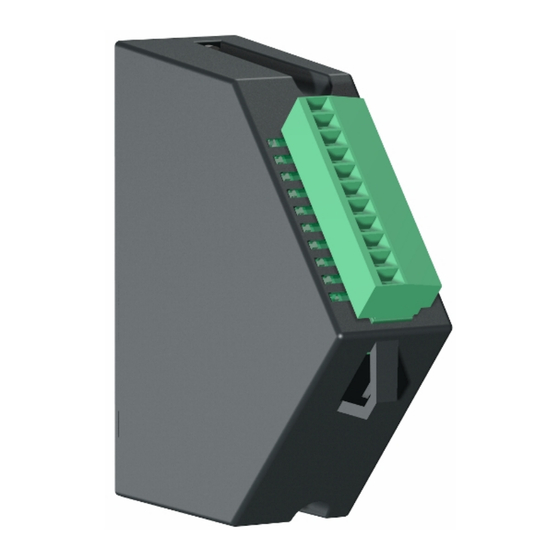

M4201
RS-232/232 Comms
Example Use:
004M-609-110
Advertisement
Table of Contents
Related Manuals for Rinstrum M4201
Summary of Contents for Rinstrum M4201
- Page 1 M4201 RS-232/232 Comms Module Description: General 1 x isolated duplex RS-232 with DTR 1 x isolated TX-only RS-232 Isolation >500V from indicator to module Power Supply Internal Baud rate 2400, 4800, 9600, 19200, 38400, 57600 Parity bit None, Even, Odd...
- Page 2 An overview of setup is given below; see the indicator Quick Start or Reference manuals for detailed setup information. The indicator provides configuration checking capabilities for the M4201. This is found in the H.WARE setup menu. See the indicator Quick Start or Reference manuals.
