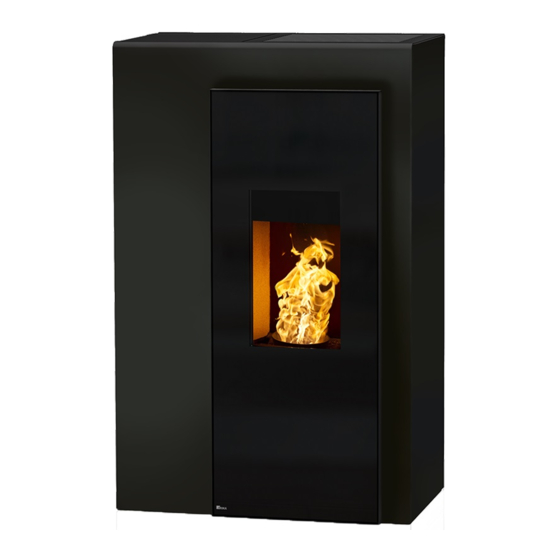

Summary of Contents for RIKA MIRO

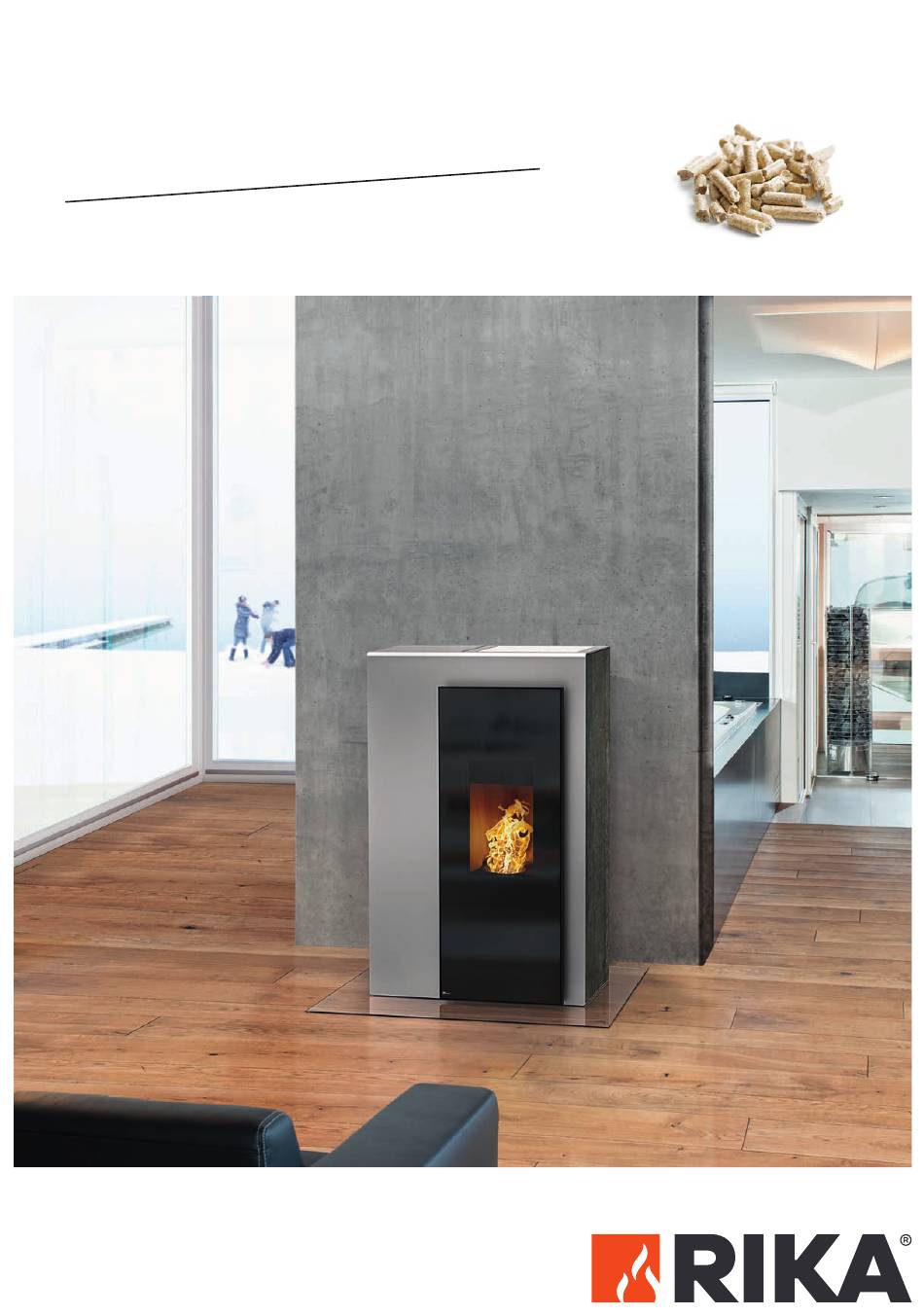

  • Page 1 MIRO Operating Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENT 1. PREFACE Explanations to symbols ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 Spare part overview exploded diagram �����������������������������������������������������������������������������������������������������������������������������������������������������4 Spare part overview article numbers ���������������������������������������������������������������������������������������������������������������������������������������������������������6 Dimensions ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Amount of fuel 4 kW �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Amount of fuel 6 kW �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical Data �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Packaging �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 Electrical connection ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 2.
  • Page 3: Preface

    8. MAINTENANCE Open the combustion chamber door ������������������������������������������������������������������������������������������������������������������������������������������������������15 Cleaning of the burn pot - daily �������������������������������������������������������������������������������������������������������������������������������������������������������������15 Cleaning the flame temperature sensor ��������������������������������������������������������������������������������������������������������������������������������������������������15 Empty the ash drawer �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Cleaning the door glass ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������15 Cleaning painted surfaces �����������������������������������������������������������������������������������������������������������������������������������������������������������������������15 9. CLEANING Cleaning the convection air openings �����������������������������������������������������������������������������������������������������������������������������������������������������16 Combustion air - intake �������������������������������������������������������������������������������������������������������������������������������������������������������������������������16 Cleaning the pellet container ������������������������������������������������������������������������������������������������������������������������������������������������������������������16 Bearings ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������16...
  • Page 4: Spare Part Overview Exploded Diagram

    Spare part overview exploded diagram...
  • Page 6: Spare Part Overview Article Numbers

    Spare part overview article numbers Art.Nr. Description Art.Nr. Description B17160 Decorative door 48 *6 N112490 Levelling screw black N100173 Washer M06 LB00553 Front panel black (from serial no. 1317485) N103964 Hexagonal screw B17315 Front panel black (till serial no. 1317484) N112551 Round sealing strip grey D11 LB00557...
  • Page 7: Dimensions

    Dimensions Technical Data Technical data 4 kW 6 kW Heating power range [kW] 2,5 - 4 2,5 - 6 Room heating capacity (depending [m³] 50 - 110 50 - 160 on house insulation) 6 kW / 4 kW Fuel consumption [kg/h] till 1 till 1,3...
  • Page 8: Important Information

    First heating RIKA stoves should only be installed in rooms with normal humidity (dry The stove body, just as various steel parts, cast iron parts and the flue pipes areas according to VDE 0100 Part 200). The furnaces are not splash water are painted with a heat resistant paint.
  • Page 9: Prior To Set

    Prior to set up Stoves type 1 (BA 1): Suitable for multiple occupancy. (Note the different country regulations.) Floor bearing capacity Ensure that the substructure is capable of bearing the weight of the stove prior These may only be operated with the combustion chamber door closed. to set-up.
  • Page 10: Brief Information On Fuel - Pellets

    3. BRIEF INFORMATION ON FUEL - PELLETS Your pellet stove is only approved for the burning of pellets of tested quality. What are pellets? Please ask your pellet stove dealer for tested fuel and a list of monitored fuel manufacturers. Wood pellets are a standardised fuel.
  • Page 11: Technology And Safet Y Functions

    4. TECHNOLOGY AND SAFET Y FUNCTIONS The technological advances in your new combi stove are the result of years of Automatic cleaning cycle testing and practical experience. The practical advantages of your pellet stove are convincing: The speed of the flue gas fan is increased every hour for a short period to blow ash from the burn pot, increasing the operational safety.
  • Page 12: Installing The Stove

    Ø50mm (pellet stoves) and fix it with a hose clamp (not included!). We recommend original flue pipes from RIKA for proper connection. At pellet stoves with longer intake pipes than 1m the diameter should be increased to 100mm. (see RIKA range).
  • Page 13: Assembly/Dismantling

    6. ASSEMBLY/DISMANTLING The side metal casing is secured with 2 hex screws. Remove these and lift the Note side panels up and away. Only work on the unit when the mains plug has been disconnected and the stove has cooled completely. Note During assembly / dismantling do not allow objects (screws etc.) to fall into the pellet container –...
  • Page 14: Comfort Options

    7. COMFORT OPTIONS Room sensor, Radio room sensor External room thermostat This option permits control of your stove via room temperature. You can set Your stove has an interface on the rear wall to which you can connect a both the room temperature and the heating times required. A room temperature customary room thermostat.
  • Page 15: Maintenance

    Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer. Note Ash may contain embers – only place ash in steel sheet containers! Empty the ash drawer Open the combustion chamber door Empty the ash drawer regularly.
  • Page 16: Cleaning

    9. CLEANING Cleaning the pellet container Your RIKA dealer will gladly advise you about their service and maintenance Do not refill the completely empty container immediately; remove the residues offers. (dust, chippings etc.) from the empty container. The unit must be disconnected...
  • Page 17: Cleaning Flue Pipes

    Cleaning flue pipes Now clean the flues with the included brush. Suck the combustion residues out of the deflection region. The flues are behind the combustion chamber. Loosen the 4 Allen screws and slide the confection fins to the right. Open the 4 square nuts and remove the cleaning lid.
  • Page 18: Problems - Possible Solutions

    10. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame. Pellets heap up in fire trough, window Flue gas discharge when wood is added and during heating phase. soots up. Cause(s) Cause(s) Leaking cleaning openings Insufficient combustion air Chimney draught too low Poor chimney draught...
  • Page 19: Instructions For Commissioning Protocol

    Note points, is a document. Please return 1 completed protocol for putting into service to RIKA Innovative Ofentechnik GmbH, Müllerviertel 20, 4563 Micheldorf, Austria. Warranty terms Difference between warranty (statutory) and guarantee (voluntary), terms of guarantee, determination of wearing parts, reference to pellet quality to be Electrical periphery used and the consequences of poor quality.
  • Page 20 Please contact your warranty partner for any warranty questions or claims. This is your dealer or installation company. No warranty claims can be accepted without proper putting into operation, proper operation according to the operating instructions and the supplements in this information sheet. Protocol for putting into operation for RIKA pellet and combi stoves Date:____________________...
  • Page 21: Warrant Y

    In case of doubt as well as missing or incorrect translations, the German version is the only valid one. For the purpose of timely damage limitation the claimant is required to file the warranty claim with the RIKA dealer in writing, submitting the invoice and stating the purchase date, model name, serial number and reason for complaint.
  • Page 24 In case of doubt as well as missing or incorrect translations, the German version is the only valid one. Technical and design changes, as well as typesetting and printing errors reserved. © 2019 | RIKA Innovative Ofentechnik GmbH RIKA Innovative Ofentechnik GmbH 4563 Micheldorf / Austria, Müllerviertel 20 Telefon: +43 7582 686 - 41, Fax-DW: 43 E-Mail: verkauf@rika.at...
