INDUO III
Installation and operating manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the INDUO III and is the answer not in the manual?

Questions and answers

Summary of Contents for RIKA INDUO III

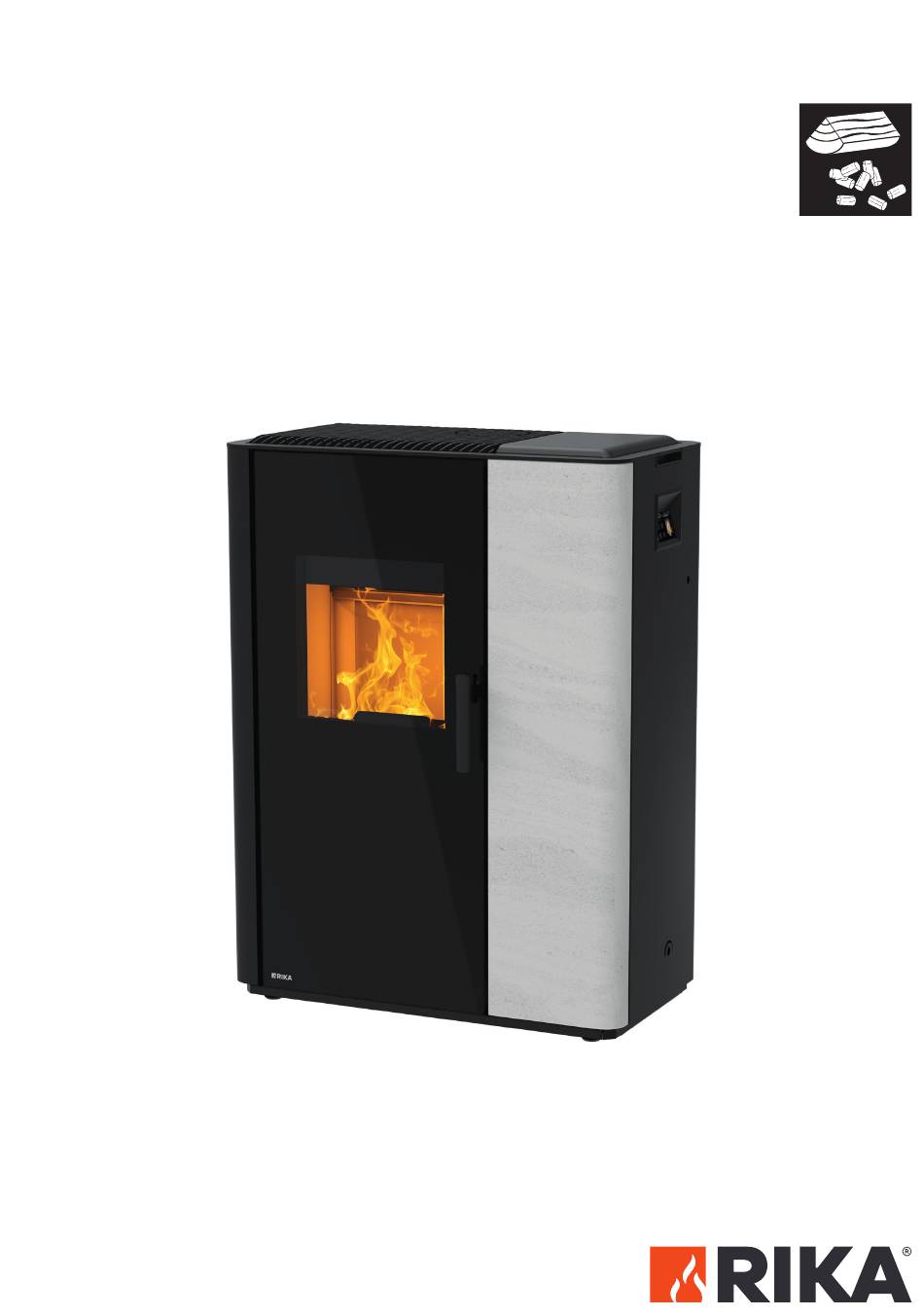

  • Page 1 INDUO III Installation and operating manual...
  • Page 2: Table Of Contents

    External request �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 Serial interface ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 USB connection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 External room thermostat ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 External connection cable bridge ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 Option RIKA FIRENET 2nd Generation �����������������������������������������������������������������������������������������������������������������������������������������������������������������11 RIKA VOICE �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11 6. COMBUSTIBLES Time-burning fireplace (INT)���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12 Brief information on fuel - pellets ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������12 Amount of fuel ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12 Brief information on FUEL - logs �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Explanations To Symbols

    9. INSTRUCTIONS FOR COMMISSIONING PROTOCOL Operator instruction �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������17 10. OPERATION Backfire and flue gas damper ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 Refill function ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 flow diagram Pellet - log operation ���������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 11. MAINTENANCE Cleaning the fire trough ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 20 Checking the door contact ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 20 Cleaning the flame temperature sensor ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4 A STOVE IS ALWAYS MORE THAN „JUST“ A SOURCE OF HEAT. Dear customer, We would like to thank you for purchasing our high-quality stove� With this quality product, we not only want to bring warmth into your home, but also create cosiness and comfort� We are proud to be able to offer you a product that is not only functional, but also impresses with its attractive design�...
  • Page 5: Important Information

    Under no circumstances may the stove be operated with defective door seals� The seals must be replaced with original RIKA seals by Danger to life! a specialised company� Operation with a damaged connection cable is not permitted!
  • Page 6: The Correct Chimney Connection

    The correct chimney connection Note on ROOM-AIR DEPENDENT and To select the connection and to ensure a correct connection ROOM-AIR INDEPENDENT OPERATION: between the stove and the chimney (flue), please read the section on INSTALLING THE STOVE or ask your local master chimney sweep� Your stove has been tested as a room-air independent stove according to EN13240 and to EN14785 and can be installed as well Flue pipes pose a particular source of hazard regarding gas leaks...
  • Page 7: Installing The Stove

    We recommend original flue pipes from RIKA for proper connection� Connect at the air intake either a pipe Ø 125 mm for log wood and combi stoves, or Ø 50 mm or Ø 60 mm for pellet stoves� Fix it with Connection to the chimney a hose clamp (not included!)�...
  • Page 8: Fire Protection

    3. FIRE PROTECTION Minimum distances Minimum distance..from the back to combustible materials [mm] ... from the sides to flammable materials [mm] ... from the top to flammable materials in the ceiling [mm] ... from above onto flammable materials on the ceiling [mm] ...
  • Page 9: Radiation Range

    Radiation range TO COMBUSTIBLE MATERIALS TO NON-COMBUSTIBLE MATERIALS 40° 40° Floor protection Combustible floors (wood, carpet, etc�) must be protected by a covering of non-combustible building materials (glass, sheet steel or ceramics)� How this floor protection is to be implemented varies from country to country� The maximum temperature at the bottom of your oven model does not exceed 60 °C above room temperature�...
  • Page 10: Technology And Safety Functions

    4. TECHNOLOGY AND SAFETY FUNCTIONS The technological advances in your new combi stove are the result of Overheating years of testing and practical experience� The practical advantages of your pellet/log stove are convincing: A safety temperature limiter (STL) switches the stove off automatically on overheating�...
  • Page 11: Comfort Options

    RIKA Firenet module and Amazon Alexa RIKA VOICE allows you to control your RIKA stove by simply speaking Note to it� Power on or off, switching between modes or adjusting the...
  • Page 12: Combustibles

    6. COMBUSTIBLES Wood pellet specification according to Amount of fuel ENplus – A1 Nominal Load Part Load Parameter Measure ENplus-A1 Log operation 2,8 kg 1,4 kg Diameter 6 (±1) Pellet operation ~2,2 kg/h* ~0,7 kg/h* Length 3,15–40 Burn time at full pellet ~14 h* ~53 h* hopper...
  • Page 13: Brief Information On Fuel - Logs

    Pellet container refilling during operation Wood types Different types of wood have different calorific values� Wood from Note deciduous trees is particularly suitable� It burns with a constant CAUTION when filling! Avoid direct contact between the plastic flame and forms long-lasting embers� Coniferous wood has higher bag and the hot stove�...
  • Page 14: Assembly/Dismantling Stone

    7. ASSEMBLY/DISMANTLING STONE Loosen the hexagon head screw and remove the disc� Note Only work on the unit when the mains plug has been disconnected and the stove has cooled completely� Note During assembly / dismantling do not allow objects (screws etc�) to fall into the pellet container –...
  • Page 15: Assembly Option Rika Multiair

    8. ASSEMBLY OPTION RIKA MULTIAIR Depending on the desired option, cut out the top two markings for Scope of Delivery E17011 one blower and the bottom two markings for the second blower� B17527 Convection fan Complete 3x N112040 Duo Taptite...
  • Page 16: Function Test And Adjustment

    Guide the cable of the MULTIAIR fan vertically downwards and then Next to it are the three-pin connectors M3 for the upper MULTIAIR further along the base plate in the direction of the designated slots� fan 1 and M4 for the lower MULTIAIR fan 2� Plug in the correct cable and re-route all cables and connectors�...
  • Page 17: Instructions For Commissioning Protocol

    Explanation of the processes in the stove during ignition, normal Note operation, cleaning phase etc� We recommend at least once a year to have all maintenance carried out by your RIKA dealer� Control Refilling the pellet container Combustion Functions and settings...
  • Page 18: Operation

    10. OPERATION Backfire and flue gas damper Refill function The following message appears after powering your combi oven� To reduce flue gas emissions during the reheating process, your combi oven has an additional reheating function in addition to the standard functions� W0080 Flue gas ap open...
  • Page 19: Flow Diagram Pellet - Log Operation

    flow diagram Pellet - log operation...
  • Page 20: Maintenance

    FIRE RISK! In a cold state, dispose it of in the household waste� Note We recommend at least once a year to have all maintenance carried out by your RIKA dealer� Cleaning the fire trough at least weekly Empty the ash drawer...
  • Page 21: Cleaning

    12. CLEANING Depending on pellet consumption, a message prompting cleaning of Remove the two upper cleaning covers� the stove appears on the display in regular intervals� This message can be acknowledged on the Touch Display, while continuing operation� Perform a cleaning cycle at the next opportunity� Subsequently, reset the counter in the SETTINGS menu / RESETS submenu, as per operating instructions of TOUCH DISPLAY�...
  • Page 22: Combustion Air - Intake Manifold

    Clean the side flues and flue gas ducts with the brush supplied� Cleaning the pellet hopper Do not refill the completely emptied container immediately, but remove residues (dust, chips, etc�) from the empty container� The appliance must be disconnected from the power supply during this process! Cleaning the flue gas ducts annually...
  • Page 23: Problems - Possible Solutions

    13. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 3 Fire burns with weak, orange flame� Pellets heap up in fire trough, Flue gas discharge when wood is added and during heating phase� window sooted up� Cause(s) pellet / log operation Cause(s) pellet operation Flue gas flap is not open for refueling Insufficient combustion air...
  • Page 24: Technical Data

    14. TECHNICAL DATA TECHNICAL DOCUMENTATION according to commission regulation (EU) 2015/1185 und 2015/1186 Ecodesign Contact details of the manufacturer RIKA Innovative Ofentechnik GmbH Manufacturer: Contact: Andreas Bloderer Müllerviertel 20 Address: 4563 Micheldorf Austria Details of the device Model Identifier: INDUO III PELLET Equivalent models: Technische Universität Wien, Getreidemarkt 9/166,...
  • Page 25 Micheldorf, 26.08.2024 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 26 TECHNICAL DOCUMENTATION according to commission regulation (EU) 2015/1185 und 2015/1186 Ecodesign Contact details of the manufacturer RIKA Innovative Ofentechnik GmbH Manufacturer: Andreas Bloderer Contact: Müllerviertel 20 Address: 4563 Micheldorf Austria Details of the device Model Identifier: INDUO III WOOD Equivalent models: Technische Universität Wien, Getreidemarkt 9/166,...
  • Page 27 Micheldorf, 26.08.2024 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 28: Dimensions, Weight And Connection

    Dimensions, weight and connection Dimensions Height [mm] 1145 Length [mm] Width [mm] Weight Mass of fireplace without soapstone [kg] Mass of fireplace with soapstone [kg] 300/340 Mass of fireplace with soapstone on the side (optional) [kg] Maximum load through the chimney [kg] n.a.
  • Page 29: Technical Details

    Technical Details General E, f Supply voltage, frequency [V]/[Hz] 230/50 Maximum electrical power consumption Average electrical power consumption ~ 20 Ø Fuse 2,5 AT Consumption of electrical auxiliary energy in standby mode [kW] 0,003 Consumption of electrical auxiliary energy at nominal heat output [kW] 0,02 Consumption of electrical auxiliary energy at partial load heat output...
  • Page 30 in split log operation Nominal heat output [kW] Nominal room heat output [kW] SHnom Part-load heat output [kW] part Part-load room heat output [kW] SHpart under Fresh air requirement examination Space heating capacity depending on the house insulation 70 - 260 η...
  • Page 31: Guarantee Conditions

    In cases of doubt, or in the case of missing or incorrect translations, the German version is always the sole valid version. In the interest of ensuring damage limitation in good time, the guarantee claim should be sent in writing to the RIKA specialist or contract dealer.
  • Page 32: Disposal Information

    17. DISPOSAL INFORMATION RIKA Innovative Ofentechnik GmbH is ensuring that its products Extract from the waste code of the are eco-friendly throughout the product life cycle� This is why our European Waste List Regulation commitment for electronic products goes beyond the end of their product life cycle�...
  • Page 36 German version is the only Müllerviertel 20 valid one. Subject to technical and visual 4563 Micheldorf / AUSTRIA changes as well as layout and printing errors.. Tel.: +43 (0)7582/686 - 41, Fax: -43 © 2024 | RIKA Innovative Ofentechnik GmbH verkauf@rika.at www.rika.at...
