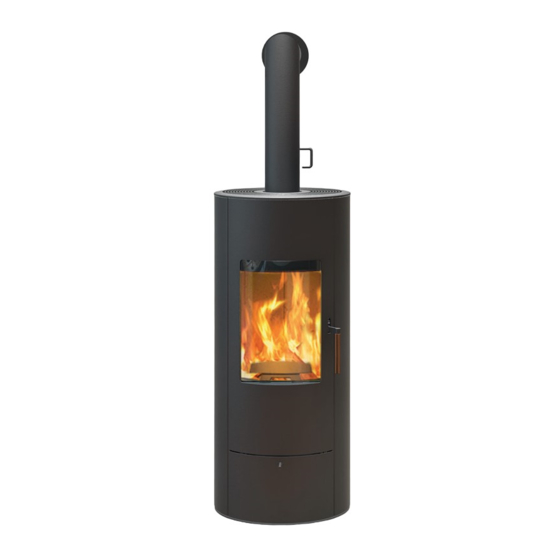

Summary of Contents for RIKA STEP

  • Page 1 STEP Operating manual...
  • Page 2: Table Of Contents

    Feeding in external combustion air ����������������������������������������������������������������������������������������������������������������������������������������������������������������������15 7. OPTION REAR CONNECTION Converting to rear flue pipe connection ��������������������������������������������������������������������������������������������������������������������������������������������������������� 16 8. VARIATION ROTATION 9. MANUAL OPERATION RIKA firelighter ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 Combustion air regulation ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 18 Correct heating up �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 Refilling ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 19 10. CLEANING AND MAINTENANCE Basic information ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Explanations To Symbols

    12. GUARANTEE CONDITIONS 13. WARRANTY CONDITIONS 14. DISPOSAL INFORMATION Information on the individual components of the device �������������������������������������������������������������������������������������������������������������� 23 Extract from the waste code of the European Waste List Regulation �������������������������������������������������������������������������������� 23 Electronic Waste ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23 1. EXPLANATIONS TO SYMBOLS ...Important ...Hexalobular #25 ...Hacksaw...
  • Page 4: Technical Documentation - Ecodesign

    TECHNICAL DOCUMENTATION 2. TECHNICAL DOCUMENTATION - ECODESIGN according to commission regulation (EU) 2015/1185 und 2015/1186 Ecodesign Contact details of the manufacturer Manufacturer: RIKA Innovative Ofentechnik GmbH Andreas Bloderer Contact: Address: Müllerviertel 20 4563 Micheldorf Austria Details of the device Model Identifier:...
  • Page 5 Micheldorf, 16.12.2021 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 6 TECHNICAL DOCUMENTATION according to commission regulation (EU) 2015/1185 und 2015/1186 Ecodesign Contact details of the manufacturer Manufacturer: RIKA Innovative Ofentechnik GmbH Andreas Bloderer Contact: Address: Müllerviertel 20 4563 Micheldorf Austria Details of the device Model Identifier: STEP 6 kW Equivalent models: Technische Universität Wien, Getreidemarkt 9/166, 1060...
  • Page 7 Micheldorf, 16.12.2021 In case of doubt as well as missing or incorrect translations, the German version is the only valid one.  Subject to technical and visual changes as well as layout and printing errors. © 2021 | RIKA Innovative Ofentechnik GmbH...
  • Page 8: Technical Data

    3. TECHNICAL DATA Spare part overview exploded diagram...
  • Page 10: Spare Part Overview Article Numbers

    Spare part overview article numbers Art.Nr. Description Art.Nr. Description Z37339 Retaining plate B15959 Flue pipe attachments assy rotatable Z37215 Locking bolt E15697 Cover lid AH N111965 Washer M05 B18491 Side casing panel, left N100751 Flat allen screw Z36399 Side casing retaining plate left N109975 Hexagon socket screw N111948...
  • Page 11: Dimensions

    Dimensions Technical data Technical data 8 kW 6 kW Nominal heat output [kW] Partial heat output [kW] Room heating capacity [m3] 90 - 210 70 - 160 (depending on house insulation) Fuel consumption [kg/h] ~2,2 ~1,8 Efficiency 81,9 83,8 10,5 CO-emission on 13% O [mg/m 824,5...
  • Page 12: Important Information

    The hardening of the paint is finished after the first as well as the regulations and rules applicable locally� heating with high power� RIKA stoves should only be installed in rooms with normal humidity (dry areas according to VDE 0100 Part 200)� The furnaces are not Safety distances splash water protected and may not be installed in wet areas�...
  • Page 13: Prior To Set Up

    Stoves type 1 (BA 1): Prior to set up Suitable for multiple occupancy� (Note the different country Floor bearing capacity regulations�) Ensure that the substructure is capable of bearing the weight of the These may only be operated with the combustion chamber door stove prior to set-up�...
  • Page 14: Brief Information On Combustible - Logs

    5. BRIEF INFORMATION ON COMBUSTIBLE - LOGS Suitable fuels and fuel amounts Output controlling Your stove is generally suitable for burning dry firewood� You can The output of your stove is regulated manually or via the Rikatronic- also burn combustibles such as wood briquettes� control�...
  • Page 15: Installing The Stove

    Connect at the air intake either a pipe Ø 125 mm for log wood and We recommend original flue pipes from RIKA for proper connection� combi stoves, or Ø 50 mm or Ø 60 mm for pellet stoves� Fix it with a hose clamp (not included!)�...
  • Page 16: Option Rear Connection

    7. OPTION REAR CONNECTION Replace the flue outlet from the top and the rear cover against each Note other� Only work on the unit when the mains plug has been disconnected and the stove has cooled down completely� Note During any conversion work, take particular care of your fingers and any panels and stove attachments�...
  • Page 17: Variation Rotation

    8. VARIATION ROTATION Lift the locking bolt at the rear side from its initial position using the handle� Swivel the stove� For better handling, put the handle aside for a moment� If you have roughly reached the desired end position, place the handle back in the centre again�...
  • Page 18: Manual Operation

    RIKA firelighter Always ignite the RIKA firelighter on the red tip� One block consists out of 8 ribs which can be divided to the desired size� The amount of RIKA firelighters also depends on the size and humidity of your firewood�...
  • Page 19: Correct Heating Up

    Fire hazard! 2� Now place further pieces of chipboard in crosswise layers on top of the logs and place 2-4 ribs of the RIKA-firelighter on top of the chipboard� Some uncoated paper can be placed underneath the chipboard in case there is no firelighter available�...
  • Page 20: Cleaning And Maintenance

    You could vacuum out embers – FIRE RISK! Note Your stove must be cooled before any maintenance work is performed� Your RIKA dealer will gladly advise you about their service and maintenance offers� The frequency with which the stove requires cleaning and the Cleaning the door glass maintenance intervals depend on the fuel you use�...
  • Page 21: Problems - Possible Solutions

    11. PROBLEMS - POSSIBLE SOLUTIONS Problem 1 Problem 2 Fire burns with weak, orange flame, window is sooted up� Stove smells strongly and / or fumes are emitted� Cause(s) Cause(s) Poor chimney draught Burning-in phase (taking into service) Damp wood Stove has accumulated dust and/or dirt Possible solution(s) Incorrect heating up...
  • Page 22 In cases of doubt, or in the case of missing or incorrect translations, the German version is always the sole valid version. In the interest of ensuring damage limitation in good time, the guarantee claim should be sent in writing to the RIKA specialist or contract dealer.
  • Page 23 14. DISPOSAL INFORMATION RIKA Innovative Ofentechnik GmbH is ensuring that its products Extract from the waste code of the are eco-friendly throughout the product life cycle� This is why our European Waste List Regulation commitment for electronic products goes beyond the end of their product life cycle�...
  • Page 24 German version is the only Müllerviertel 20 valid one. Subject to technical and visual 4563 Micheldorf / AUSTRIA changes as well as layout and printing errors.. Tel.: +43 (0)7582/686 - 41, Fax: -43 © 2021 | RIKA Innovative Ofentechnik GmbH verkauf@rika.at www.rika.at...
