- Page 1 Domoplex drain equipment Instructions for Use Model Year built: 6928 from 06/2015 en_INT...
- Page 2 Domoplex drain equipment 2 from 15...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview 2.2.2 Technical data Handling Assembly information 3.1.1 Mounting conditions 3.1.2 Installation dimensions Assembly... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general approved rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use Notes give you additional helpful tips. About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e. -
Page 6: Product Information

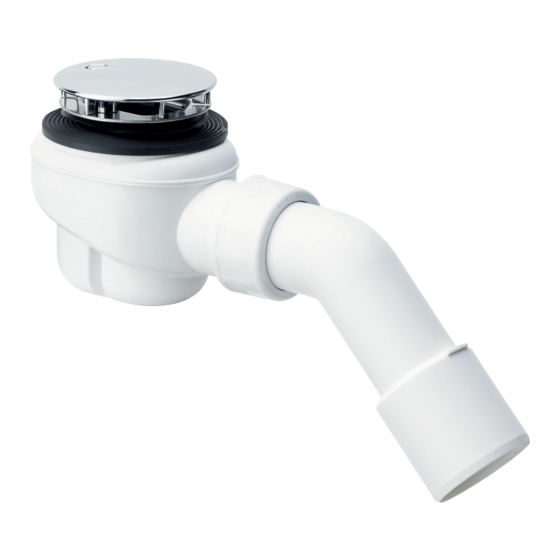

The Domoplex shower drain is a drain with odour trap for shower trays with 52 mm drain holes. Detailed information regarding all shower tray models and the corre- sponding Viega drains can be found in the catalogue or on the Internet. Domoplex drain equipment 6 from 15... -
Page 7: Product Description
Product information Product description 2.2.1 Overview Fig. 1: Components 1 - cover plate 2 - immersion pipe 3 - fixing flange with screws 4 - seal 5 - odour trap 6 - sealing ring 7 - sliding ring 8 - union nut 9 - drain elbow 2.2.2 Technical data... -
Page 8: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting conditions The following requirements exist for the mounting of the drain: The shower tray is installed. The drainage line is installed all the way to the shower tray. The underside of the shower tray is accessible. The drainage capacity is sufficient at an accumulation height of 120 mm. - Page 9 Handling Position the drain unit with seal under the shower tray. Push the upper part of the seal through the drain hole. Secure drain Place fixing flange and insert the screws by hand. NOTICE! Only use a screwdriver, not a cordless screwdriver. Tighten screws evenly.
-
Page 10: Connecting The Wastewater System
Handling Press the cover plate onto the two fixing points. 3.2.2 Connecting the wastewater system Proceed as follows to connect the drain to the waste water system: Requirement: The drain unit is installed onto the shower tray. If the waste water pipe only has a diameter of 40 mm, cut off drain elbow. -
Page 11: Leakage Test
Handling Align the odour trap in such a way that the drain elbow can be con- nected to the waste water pipe. Push waste water pipe onto the drain elbow. 3.2.3 Leakage test The leakage test is only carried out as a visual inspection. Check drain fitting for visible leaks. - Page 12 Handling Remove cover plate. Remove the immersion pipe upwards. For free access to the drain pipe: Grip the closing plug on the lug with pliers and pull off. Clean the drain carefully to avoid damaging the fitting. Domoplex drain equipment 12 from 15...
- Page 13 Handling Insert closing plug flush with the surface. Make sure to position the closing plug properly. The lug must be positioned vertically. Insert immersion pipe. Mount cover plate. Domoplex drain equipment 13 from 15...
-
Page 14: Disposal
Handling Disposal Separate the product and packaging materials (e. g. paper, metal, plastic or non-ferrous metals) and dispose of in accordance with valid national legal requirements. Domoplex drain equipment 14 from 15...
