Altronix SMP10C24X Series Installation Manual page 8

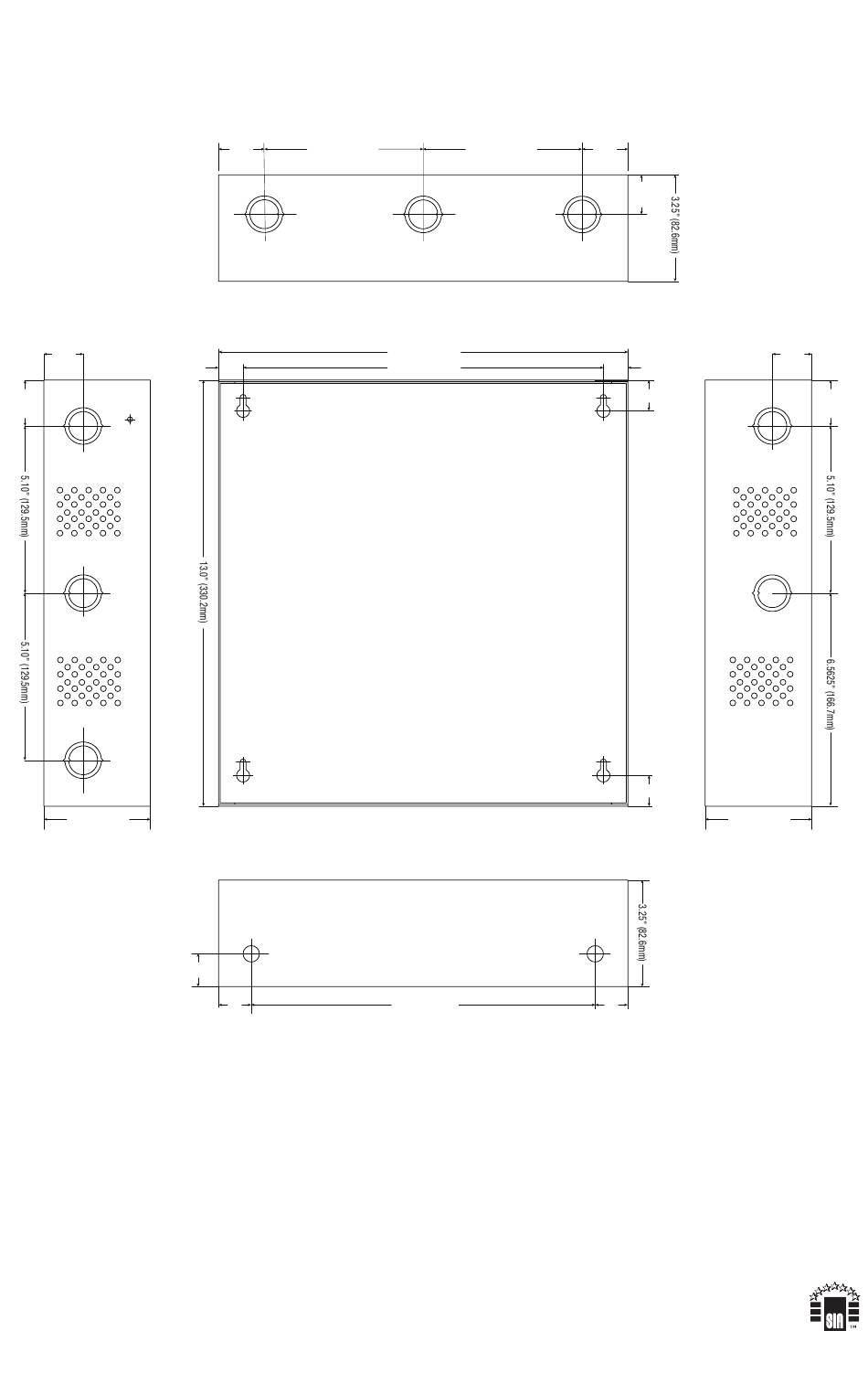

Enclosure Dimensions (BC300):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
Enclosure accommodates up to two (2) 12VDC/7AH batteries.
Also available to accommodate up to two (2) 12VDC/12AH batteries (please contact Altronix).
1.20"
(30.5mm)
1.40"
(35.6mm)
3.25" (82.6mm)
1.0" (25.4mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IISMP10C24X Series
- 8 -
1.40"
4.85" (123.2mm)
(35.6mm)
0.75"
(19.1mm)
1.0"
(25.4mm)
4.85" (123.2mm)
12.5" (317.5mm)
11.0" (279.4mm)
10.5" (266.7mm)
H18U
1.40"
(35.6mm)
1.20"
(30.5mm)
0.75"
(19.1mm)
0.9375" (23.8mm)
0.9375" (23.8mm)
3.25" (82.6mm)
1.0"
(25.4mm)
SMP10C24X Series Installation Guide
1.20"
(30.5mm)
1.40"
(35.6mm)
