- Page 1 Operating instructions and warnings...
-
Page 2: Table Of Contents
WARNING Product use in abnormal conditions not foreseen by the manufacturer may generate hazardous situations; meet the conditions indicated in these instructions. WARNING DEA System reminds all users that the selection, positioning and installa- tion of all materials and devices which make up the complete automation system, must comply with the European Directives 2006/42/CE (Machinery Directive), 2014/53/UE (RED Directive). - Page 3 WARNING Using spare parts not indicated by DEA System and/or incorrect re-assem- bly can create risk to people, animals and property and also damage the product. For this reason, always use only the parts indicated by DEA System and scrupulously follow all assembly instructions.
-
Page 4: Product Description

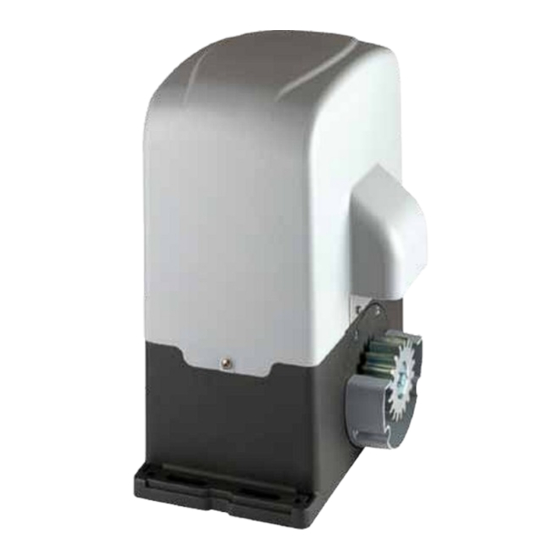

2 PRODUCT DESCRIPTION Models and contents of the package The name REV identifies a series of electromechanical operators for sliding gates with different features as to motor and control board power supply voltage, capacity, mechanical adjustment of force, electronic clutch and built-in limit switch. All automated models involve the use of advanced control units (NET series) equipped with anti-crushing sensor, built-in 433 MHz radio receiver, speed control and slow down in opening and closing. -
Page 5: Installation And Assembly
Adjustment of the limit-switches Some REV models provides a limit-switch whose intervention must be adjusted for each installation. DEA System provides two limit switches cams (Fig. 9) that are installed on the rack of the gate and subsequently regulated in such a way as to ensure the functionality and safety distances in opening and closing of the gate. -
Page 6: Electrical Connections
This means the gate will be self locking in normal operation. Refer to the attached sheet for the correct procedure of cleaning / maintenance of the electro-brake. DEA System reminds that the operations must be performed by qualified personnel. - Page 7 OPEN GATE WARNING LIGHT 24V 15W N.O. N.C. BLUE EN-6...
- Page 8 OPEN GATE WARNING LIGHT 230V max 150W N.O. N.C. BLACK OMNIPOLAR CIRCUIT BRAKER GRAY POWER SUPPLY BROWN 230V~ 50Hz ±10% 3 x 1,5 mm EN-7...
-
Page 9: Start-Up
6.1 Installation test The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper testing of all the automation in 4 easy steps: •... -
Page 10: Product Disposal
8 PRODUCT DISPOSAL REV consists of materials of various types, some of which can be recycled (electrical cables, plastic, aluminum, etc. ..) while others must be disposed of (electronic boards and components). Proceed as follows: 1. Disconnect the power supply; 2. - Page 11 Example of typical installation DEA System provides the following instructions which are valid for a typical system but obviously not complete for every system. For each automatism the installer must carefully evaluate the real conditions existing at the site. The installation requisites in terms of both performance and safety must be based upon such considerations, which will also form the basis for the risk analysis and the detailed design of the automatism.
- Page 13 GATE Fence 105 mm. Base Plate Rack, Cables, Concrete Z15 (Reversible) 100 mm Z18 (Irreversible) 106 mm...
- Page 14 ~15mm...
- Page 15 P063 = 000 P063 = 001 Pos. Description Pos. Description Light blue Green WARNING: In case of use of the parameter P063 (NET control boards only) for an inverted installation (operator on the right), the position of the magnets must not be changed.
- Page 16 Pos. Description Black FCA 1 Blue Brown FCC 1 Conduit for encoder cables and accessories Conduit for operator power supply cables and control panel...
- Page 17 ACCESSORIES Article Code NYLON rack, 619000 ZINC PLATED rack 22x22 126001 ZINC PLATED rack 30x12, 126000 22 pinion to increase speed of REV motors. Pignone Z22 619090...
- Page 18 INSTRUCTIONS FOR THE FINAL USER This guide has been prepared for the final users of the automatism; the installer is required to deliver this gui- de and illustrate its contents to the person in charge of the system. The latter must then provide similar instruc- tion to all the other users.
- Page 19 EU Declaration of Conformity (DoC) and Declaration of Incorporation of "quasi‐machines" (pursuant to the Machinery Directive 2006/42/CE, Att.II, B) Company name: DEA SYSTEM S.p.A. Postal address: Via Della Tecnica, 6 Postcode and City: 36013 Piovene Rocchette (VI) ‐ ITALY Telephone number: +39 0445 550789 E‐Mail address: deasystem@deasystem.com declare that the DoC is issued under our sole responsibility and belongs to the following product: REV220 ‐ REV220/M ‐ REV220/IB ‐ REV220/RF ‐ REV220/RFM ‐ REV220/RF/IB ‐ Apparatus model/Product: REV220/S ‐ REV24/F ‐ REV24/M ‐ REV24/IB ‐ REV24/F/120 Type: REV Batch: See the label on the back of the user manual The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: Directive 2006/42/CE (MD Directive) • It is declared that the relevant technical documentation has been drawn‐up in compliance with attachment VII B. • It is also declared that the following essential health and safety requirements have been respected: 1.1.1 ‐ 1.1.2 ‐ 1.1.3 ‐ 1.1.5 ‐ 1.2.1 ‐ 1.2.6 ‐ 1.3.1 ‐ 1.3.2 ‐ 1.3.3 ‐ 1.3.4 ‐ 1.3.7 ‐ 1.3.9 ‐ 1.5.1 ‐ 1.5.2 ‐ 1.5.4 ‐ 1.5.5 ‐ 1.5.6 ‐ 1.5.7 ‐ 1.5.8 ‐ 1.5.10 ‐ 1.5.11 ‐ 1.5.13 ‐1.6.1 ‐ 1.6.2 ‐ 1.6.4 ‐ 1.7.2 ‐ 1.7.3 ‐ 1.7.4 ‐ 1.7.4.1 ‐ 1.7.4.2 ‐ 1.7.4.3. • The undersigned declares that the afore‐mentioned “partly‐completed machinery” cannot be commissioned until the final machine, into which it has been incorporated, has been declared compliant with the Machinery Directive 2006/42/CE. • On duly justified request, the manufacturer commits to transmitting the information regarding the “partly‐completed machinery” to the national authorities without prejudice to their intellectual proper ty rights. ...
