Summary of Contents for Dea MAC
Page 1

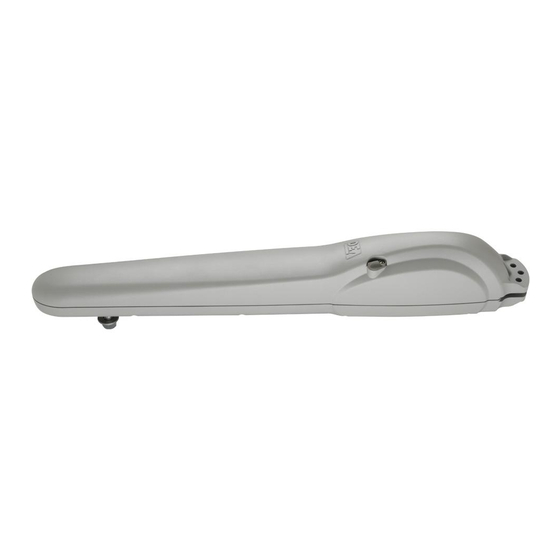

MAC/STING Ope r ator e el ettrom eccanico pe r cancelli ad ant a b at tente I st r u z ioni d’ us o ed avver ten z e El ec t ro - me c h an ical operator fo r swing gates Op e r a t ing in struc tions a nd wa rn in gs Opé...
WARNING Product use in abnormal conditions not foreseen by the manufacturer may generate hazardous situations; meet the conditions indicated in these instructions. WARNING DEA System reminds all users that the selection, positioning and installa- tion of all materials and devices which make up the complete automation system, must comply with the European Directives 2006/42/CE (Machinery Directive), 2014/30/UE (electromagnetic compatibility), 2014/35/UE (low voltage electrical equipment).
Page 3
WARNING Using spare parts not indicated by DEA System and/or incorrect re-assem- bly can create risk to people, animals and property and also damage the product. For this reason, always use only the parts indicated by DEA System and scrupulously follow all assembly instructions.
Inspect the “Contents of the Package” (Pic. 1) and compare it with your product for useful consultation during assembly. Transport MAC/STING is always delivered packed in boxes that provide adequate protection to the product, however, pay attention to all infor- mation that may be provided on the same box for storage and handling.
STANDARD VERSION UNBLOCKING • Turn the cap placed on the back of MAC in order to discover the underlying shaped hole. • Insert the release key inside the shaped hole paying attention to the direction of insertion (Pic. 8.a).
6.1 Installation test The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper testing of all the automation in 4 easy steps: •...
The operator’s front and rear attachments bend or are not fastened correctly. Repair or re- place. 8 PRODUCT DISPOSAL MAC/STING consists of materials of various types, some of which can be recycled (electrical cables, plastic, aluminum, etc. ..) while others must be disposed of (electronic boards and components). Proceed as follows: 1.
Page 8
Esempio di installazion tipica - Example of typical installation - Exemple d’installation typique - Installationsbeispiel - Ejemplo de insta- lación típica - Exemplo de instalação típica - Przyład standardowego systemu automatyzacji - Пример типового монтажа DEA System fornisce queste indicazioni che si possono ritenere valide per un im- System facilita estas indicaciones que pueden considerarse válidas para una pianto tipo ma che non possono essere complete.
Page 9
797 mm 110 mm ≥ 200 mm ≥ 500 mm ≥ 500 mm...
Page 10
éléct ro-serru re pour bloquer l e portail en posit ion de ferme ture. MAC - STING - MAC/EN A C H T U N G Bei re ve rsi erbare n Modelle n u nd gleicher Flügelläng e d as zul ässige Höchst gewicht des Tor s um MAC/24 - STING/24 1/ 3 de s in der Graf ik „Lä...
Page 14
Таблица “АКСЕССУАРЫ ИЗДЕЛИЯ”. Descrizione, Description, Description, Article Beschreibung, Descripción, Descrição, Opis Code Prolunga per motori serie LOOK - MAC/STING - Extension for MAC/ STING and LOOK rams Prolongateur pour vérin MAC/STING et LOOK MAC-LOOK/P Verlängerung für Motoren der Baureihe LOOK - MAC/STING Extensión para pistones MAC/STING y LOOK...
Page 16
All MAC/STING models are equipped with a release device which must be operated as follows: STANDARD VERSION UNBLOCKING • Turn the cap placed on the back of MAC in order to discover the underlying shaped hole. • Insert the release key inside the shaped hole paying attention to the direction of insertion (Pic. 8.a).
Page 18
DEA SYSTEM S.p.A. Via Della Tecnica, 6 - 36013 PIOVENE ROCCHETTE (VI) - ITALY tel: +39 0445 550789 - fax: +39 0445 550265 Internet: http:\\www.deasystem.com - E-mail: deasystem@deasystem.com...
