IP65
DRY/WET LOCATION
Surface Mount Canopy
SAFETY & WARNINGS
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Install in accordance with national and local electrical code
regulations.
3. This product is intended to be installed and serviced by a
qualified, licensed electrician.
4. Do not use if there is any damage to fixture or wiring. Inspect
periodically.
5. Do not submerge fixture in liquids or use the product in the
vicinity of standing water or other liquids.
6. Do not install near areas with exposure to salt water or
chlorinated water.
7. Do not install in direct sunlight or damage to the LED
phosphor will occur.
8. Do not attempt to fix this product in the field.
9. Failure to follow safety warnings, and installation instructions
will be void the warranty for this product.
VOLANTE

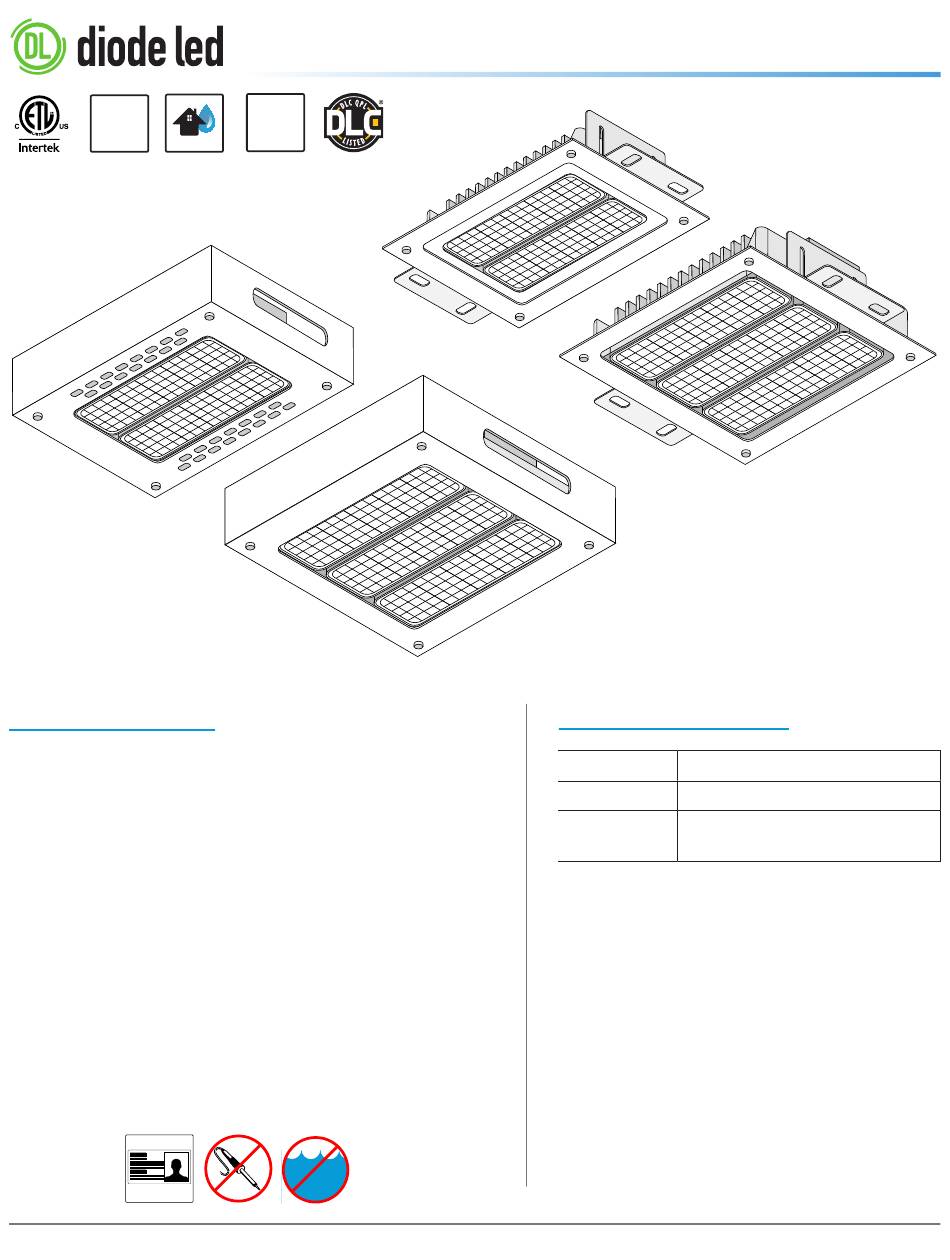

LED Canopy Light INSTALLATION GUIDE
™
®
120V-
277V
AC
®
VOLANTE
QUICK SPECS / MODELS
Input
Power
Ambient
Temp †
† Do not install product in environment outside
listed temperature.
1 OF 5
LED Canopy Light
INSTALLATION GUIDE
Recessed Canopy
120V-277VAC
100w or 200w
-4° - 113°F (-20° - 45°C)
IG112918-3.0
