CHIEF PSM-2155 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
LCD DISPLAY STATIC MOUNT

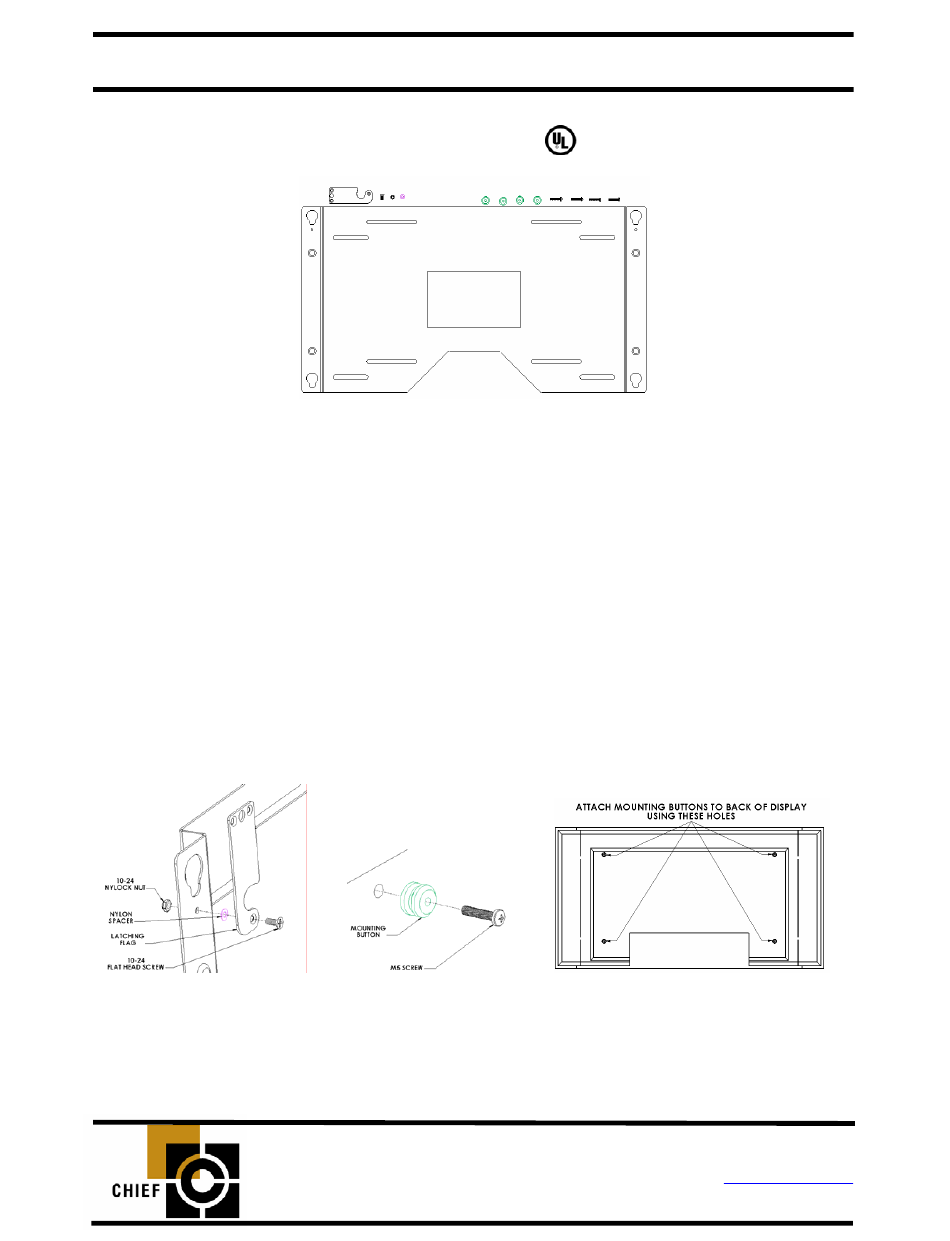

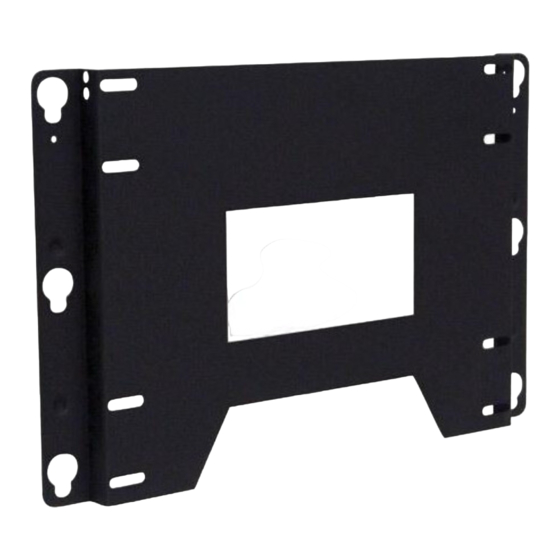

(1) LCD Display Static Mount
(1) Latching Flag
(4) M5 x 25mm Phillips Head Cap Screws
(4) Mounting Buttons-Green
BEFORE PROCEEDING: Unpack the carton, verify contents shown in Figure 1 and read
installation instructions completely. If you are missing any of the listed components, please
contact Customer Service at 1-800/582-6480.
CAUTION!
1. Attach latching flag to mount using the 10-24 Phillips flat head screw, Nylon washer, and
Nylock nut (see Figure 2). Tighten until friction will hold the flag in place.
2. Attach mounting buttons to display using the M5 screws provided (see Figure 3 & Figure 4).
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
PSM-2155
Figure 1
LCD Displays are Extremely Fragile.
Figure 3
(1) 10-24 x .5 Phillips Flat Head Screw
(1) Nylon Washer
(1) 10-24 Nylock Nut
Figure 4
