Figure 1
SNAP
BUTTONS
King
California
King
Queen
Figure 2
CROSS ARM
ASSEMBLY
SIDE RAIL
Figure 3
CROSS
ARM

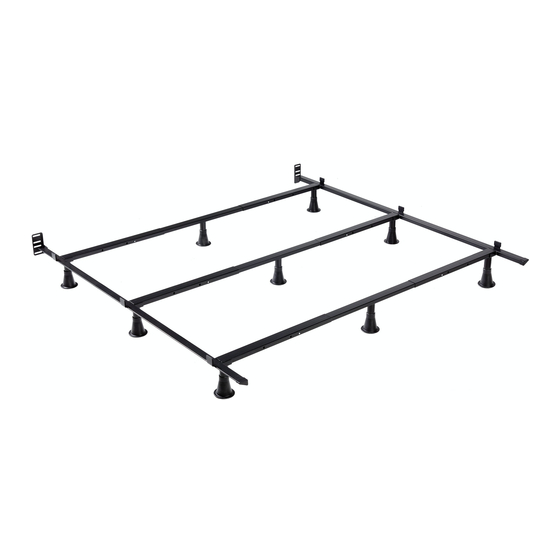

P56 PRESTIGE BED FRAME
ASSEMBLY INSTRUCTIONS
THREADED
HOLES
CENTER
CROSS ARM
OUTER
CROSS ARM
CROSS ARM
ASSEMBLY
CROSS ARM
ASSEMBLY
Assembled View
LEG
GLIDE
OUTER
CROSS ARM
SIDE RAIL

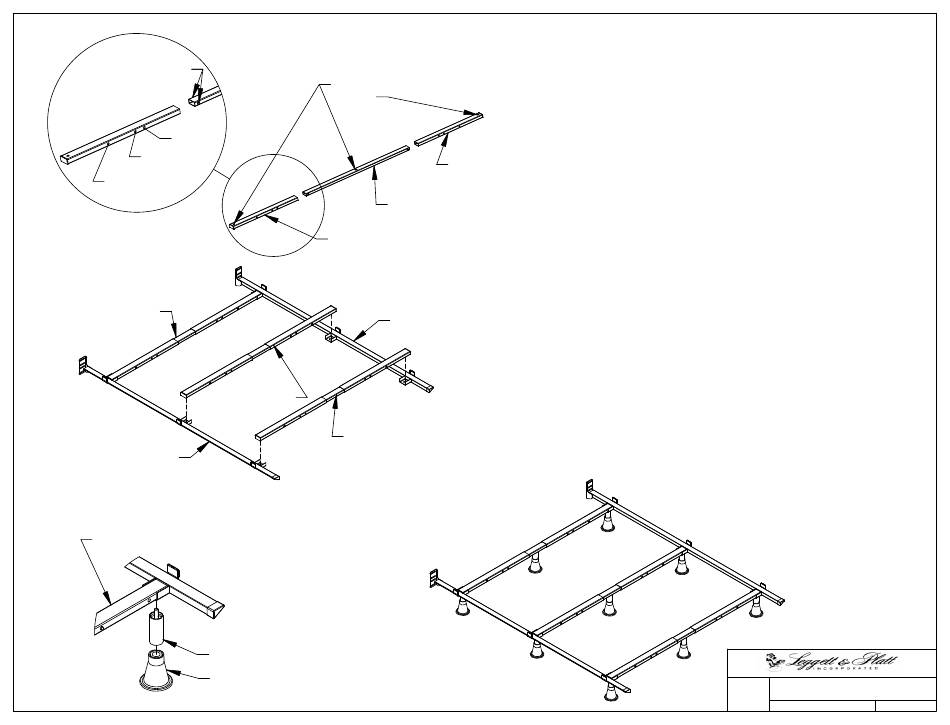

Step 1 Depress SNAP BUTTONS on CENTER
CROSS ARM and slide into OUTER CROSS
ARM until it locks in the appropriate holes as
detailed in Figure 1. Important: Make sure
THREADED HOLES are facing the same
direction. Repeat until all cross arms are
assembled.
Step 2 Slide CROSS ARM ASSEMBLIES in
place between SIDE RAILS as shown in Figure 2.
Note: Threaded holes should be underneath.
Step 3 Screw LEGS into threaded holes of each
CROSS ARM and tighten securely by hand.
Slide GLIDES onto each LEG. See Figure 3.
DATE
12-08-11
DWG. NO.
99301246
DO NOT SCALE DRAWING
SHEET 2 OF 4
