Figure 1
SNAP
BUTTONS
Full
Twin
Figure 2
CROSS ARM
ASSEMBLY
SIDE RAIL
Figure 3
CROSS
ARM

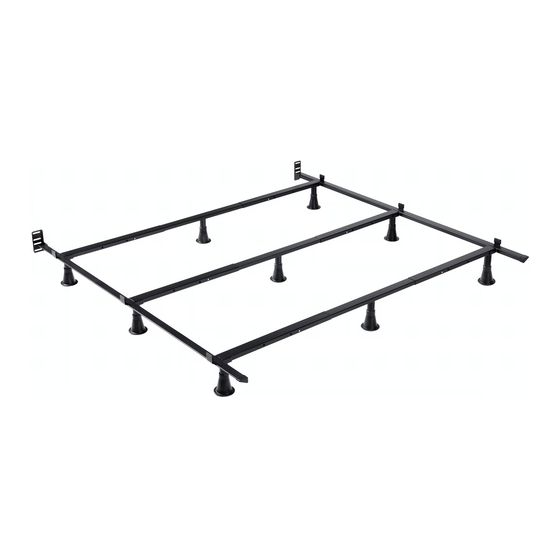

P34 PRESTIGE BED FRAME
ASSEMBLY INSTRUCTIONS
THREADED
HOLES
CENTER
CROSS ARM
OUTER
CROSS ARM
CROSS ARM
ASSEMBLY
CROSS ARM
ASSEMBLY
Assembled View
LEG
GLIDE
Step 1 Depress SNAP BUTTONS on CENTER
OUTER
CROSS ARM and slide into OUTER CROSS
CROSS ARM
ARM until it locks in the appropriate holes as
detailed in Figure 1. Important: Make sure
THREADED HOLES are facing the same
direction. Repeat until all cross arms are
assembled.
Step 2 Slide CROSS ARM ASSEMBLIES in
place between SIDE RAILS as shown in Figure 2.
Note: Threaded holes should be underneath.
SIDE RAIL
Step 3 Screw LEGS into threaded holes of each
CROSS ARM and tighten securely by hand.
Slide GLIDES onto each LEG. See Figure 3.
DATE
DWG. NO.
99301246
12-08-11
DO NOT SCALE DRAWING
SHEET 1 OF 4
