HUSSONG MANUFACTURING CO., INC.
ROOSEVE LT 3 4 B AK
Model #RVT-34-BAK

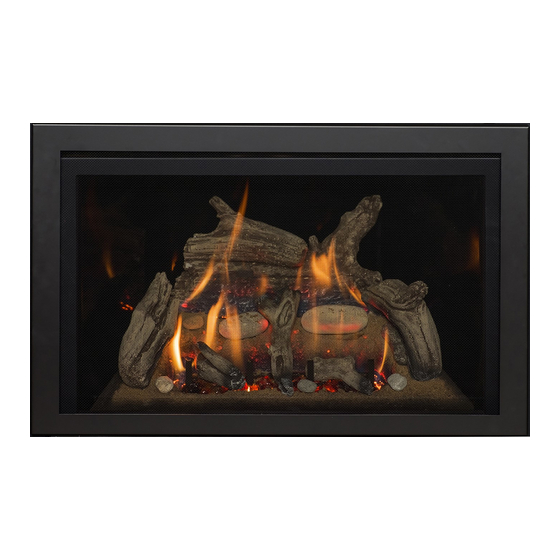

Direct Vent Gas Fireplace Insert
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d'installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
ͷ Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
ͷ WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier,
call the fire department.
ͷ Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
Hussong Mfg. Co., Inc. • RVT-34-BAK
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATION AND
OPERATION MANUAL
This
appliance
an
aftermarket,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
DANGER
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed for the protection
of children and other at-risk individuals.
Report No: 0216GN058S • Rev. 1, September 2018
may
be
installed
permanently
located,
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
in
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for kozy heat ROOSEVELT 34 BAK
Summary of Contents for kozy heat ROOSEVELT 34 BAK
- Page 1 INSTALLATION AND OPERATION MANUAL HUSSONG MANUFACTURING CO., INC. ROOSEVE LT 3 4 B AK Model #RVT-34-BAK Direct Vent Gas Fireplace Insert English and French installation manuals are available through your local dealer. Visit our website www.kozyheat.com. Les manuels d’installation en français et en anglais sont disponibles chez votre détaillant local.
- Page 3 We pride ourselves in being dedicated not only to functionality and reliability, but also customer safety. We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment from your Kozy Heat gas fireplace.
-
Page 5: Table Of Contents
15.0 REPLACEMENT PARTS LIST..........38 7.2 Gas Line Installation ................... 18 LIMITED LIFETIME WARRANTY ............ 39 8.0 FACING AND FINISHING ............19 8.1 Clearances to Combustibles ..............19 #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TABLE OF CONTENTS... -
Page 7: Introduction
Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified. #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 7... -
Page 8: Specifications
When the appliance is installed at elevations above 4,500 ft (1,372 m), the certified high altitude rating shall be reduced at the rate of 4% for each additional 1,000 ft (305 m). 8 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018... -
Page 9: Appliance Dimensions
” ¼ ” ⁄ (603mm) ” ELECTRICAL (564mm) (537mm) ⁄ ACCESS ” (362mm) ½ ⁄ ⁄ ” ” ” (89mm) (28mm) (860mm) Figure 2.1, Appliance Dimensions #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces SPECIFICATIONS 9... -
Page 10: Part Assembly Overview
Table 2.1, Field-Assembled Parts Fireplace insert Front burner assembly Glass frame assembly Back burner assembly Ember media tray and log rack Co-linear vent adapter Control board assembly Fan Kit 10 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018... -
Page 11: Safety Barrier Dimensions
” (673mm) (626mm) (626mm) RT34A-MSF RT34A-FPDSF ⁄ ⁄ ” ” (866mm) (866mm) ½ ½ ” ” (622mm) (622mm) RT34-PSF RT34-RSF ½ ” (901mm) 25” (635mm) RT34-FSF #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces SPECIFICATIONS 11... -
Page 12: Existing Fireplace Requirements
If the metal floor is removed, the insert must be placed directly measurement. on metal base of metal fireplace using the Kozy Heat Floor This is the total length of the co-linear flexible aluminum pipe Protector Kit (#RT34-FLP). The provided leveling bolts with required for your installation. -
Page 13: Termination Location
Approved vent caps require 12 in (305mm) clearance to intersecting walls, overhangs or eaves as verified by test. APPROVED VENT CAP MINIMUM 12” (305mm) CLEARANCE Figure 4.1, Vent Cap Clearance #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TERMINATION LOCATION... -
Page 14: Installation Preparation
Authority Having Jurisdiction. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 INSTALLATION PREPARATION... -
Page 15: Installation
Complete vent system installation by following the instructions COMBUSTION AIR EXHAUST COLLAR (RIGHT) outlined in Sections 6.3 through 6.6. INTAKE COLLAR (LEFT) VENT ADAPTER (TOP VIEW) Figure 6.1, #816-CAP #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INSTALLATION... -
Page 16: Remove Vent Adapter
OPTIONAL Kozy Heat #816-CAP: Secure termination cap to existing chimney with 2 in (50 mm) self-tapping screws and anchor straps (not provided) through the pilot holes, located on the sides of the termination cap. -
Page 17: Connect Vent Pipe To Vent Adapter
Visually check vent pipe connection to vent adapter. VENT ADAPTER FLEXIBLE PIPES Figure 6.4, Aligned Insert SHEET METAL SCREWS (3 TOTAL) SEALANT SEALANT Figure 6.5, Vent Pipe Connection to Vent Adapter #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INSTALLATION... -
Page 18: Gas Line Connection
Table 7.1, Inlet Gas Supply Pressures Fuel Minimum Pressure Maximum Pressure Natural Gas 5” WC (1.25 kPa) 10.5” WC (2.62 kPa) Propane 11” WC (2.74 kPa) 13” WC (3.24 kPa) Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 GAS LINE CONNECTION... -
Page 19: Facing And Finishing
(10” D x 34” L x 1/2” H) *IF COMBUSTIBLE FLOORING IS CONSTRUCTED IN FRONT OF THE UNIT, THE APPLIANCE MUST BE RAISED 1-1/2” (38mm) USING A NON-COMBUSTIBLE MATERIAL #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING... -
Page 20: Shroud Installation
Secure with (4) phillips truss head screws (provided). Reinstall glass frame assembly. Figure 8.1, Aligned Mounting Nuts and Brackets Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 FACING AND FINISHING... -
Page 21: Gas Fireplace Insert Setup
LATCH TOOL HERE tray with the two tabs on the light kit housing. Reinstall all components previously removed. LATCH TAB Figure 9.2, Latch Release #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces GAS FIREPLACE INSERT SETUP... -
Page 22: Panel Installation
Secure side panels with the panel clips previously bent. Install ash panel. Reinstall all components previously removed. Figure 9.4, Glass Panel Installation Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 GAS FIREPLACE INSERT SETUP... -
Page 23: Rt34-Bak Beach Accent Kit Installation
Log numbers and rock numbers are located on the bottom of each media piece. Refer to following instructions and illustrations for proper placement. Figure 9.5, Installation of RT34-BAK #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces GAS FIREPLACE INSERT SETUP... -
Page 24: Control Board Removal And Installation
12. Verify proper log placement, operation of fireplace, and any electrical components. REMOVE CONTROL BOARD (10) SCREWS Figure 9.6, Control Board Removal and Installation Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 GAS FIREPLACE INSERT SETUP... -
Page 25: Electrical Information
This appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with Figure 10.1, Wiring Schematic #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ELECTRICAL INFORMATION... -
Page 26: Operating Instructions
This fireplace may produce noises of varying degree as it heats and cools due to metal expansion and contraction. This is normal, and does not affect the performance or longevity of the fireplace. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018... -
Page 27: Setup Proflame
Turn the main burner OFF by setting the ON/OFF switch in the OFF position. The pilot will remain lit even if burner is turned off, provided CPI mode is turned on. #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS... -
Page 28: Ifc Module Ignition Sequence
Red LED Indicator will blink (3) times in intervals. • Verify gas is turned on. • Verify sensor is not shorted. • Follow “11.2 Initialize the Control System”. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 OPERATING INSTRUCTIONS... -
Page 29: Remote Control Operation
LCD screen. Simultaneously press the mode key and the up arrow key to activate or deactivate this function. #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS... - Page 30 Verify all (3) AAA batteries are installed in the remote control. the up or down arrow key to choose ‘ON’ or ‘OFF’ . Remove (1) AAA battery. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 OPERATING INSTRUCTIONS...
- Page 31 Fan(s) will operate at previous setting. There is no delay Manual mode: • When the batteries are replaced, this icon will disappear. in start up or stop time. #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS...
-
Page 32: Adjustment
Gas Supply Low - High Low - High Manifold Pressure 1.1” - 3.8” WC 2.9” - 11” WC Tap (B) (.27 - .95 kPa) (.72 - 2.74 kPa) Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 ADJUSTMENT... -
Page 33: Burner Flame Adjustments
Reinstall all components previously removed. SHORT, BLUE FLAMES BACK BURNER VENTURI LIFTING (GHOSTING) FLAMES Figure 12.3, Flame Characterstics FRONT BURNER VENTURI Figure 12.2, Burner Venturi Locations #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ADJUSTMENT... -
Page 34: Troubleshooting
Verify the pilot flame is properly directed to ignite burner. See pilot flame troubleshooting above. Remote control not working Replace batteries. properly No call for heat Verify remote control is powered ON and thermostat operation is turned OFF. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 TROUBLESHOOTING... - Page 35 No communication between Reprogram remote control to IFC module. remote control and IFC module A maximum number of failed Reset IFC module. ignitions or flame restorations has been reached #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TROUBLESHOOTING...
-
Page 36: Maintenance
Qualified Service Person Performed by: Annually Frequency: Action: • Examination of the vent system is required. • The flow of combustion and ventilation air must not be obstructed. Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 MAINTENANCE... -
Page 37: Burner And Pilot System
Test and measure the flame failure response time of the flame safety system. It must de-energize the safety shutoff in no more than (30) seconds. BURNER ORIFICE BACK BURNER PORTS FRONT BURNER PORTS Figure 14.1, Burner System #RVT-34-BAK R.1 SEPT 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces MAINTENANCE... -
Page 38: Replacement Parts List
RT34-R3 #RVT-34-BAK Rock #8 RT34-R8 Hussong Manufacturing Co., Inc. P.O. Box 577 Pebble RT34-P 204 Industrial Park Drive Rock Wool Embers 900-REMB Lakefield, MN 56150-0577 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #RVT-34-BAK R.1 SEPT 2018 REPLACEMENT PARTS LIST... -
Page 39: Limited Lifetime Warranty
• All parts and material except the items listed in the 30 day Kozy Heat gas appliance from the date of purchase to the original warranty and any exclusions or limitations that may apply. purchaser, that it is free of defects in materials and workmanship at *Hussong Mfg.
