Segmenting Hubs

Switching hub technology has made it more common to segment local area
networks into smaller pieces to reduce congestion. Segmenting makes it
easier to balance network loads, since a smaller number compete for the
bandwidth available.
A hub stack makes network management convenient, but too many stations
on a single network segment may give slow response at peak network loads.
Therefore, this hub series provides a way to segment hubs from the stack
into their own collision domains. Segmenting hubs can be accomplished
with a simple management command and does not require any hardware or
wiring changes.
Though the hubs continue to be cascaded together and are managed as a
single unit, each hub can either be a part of the collision domain of the rest
of the stack, or can be separated into its own network segment. These sepa-
rate segments can be bridged by connecting them through a compatible
switching hub.

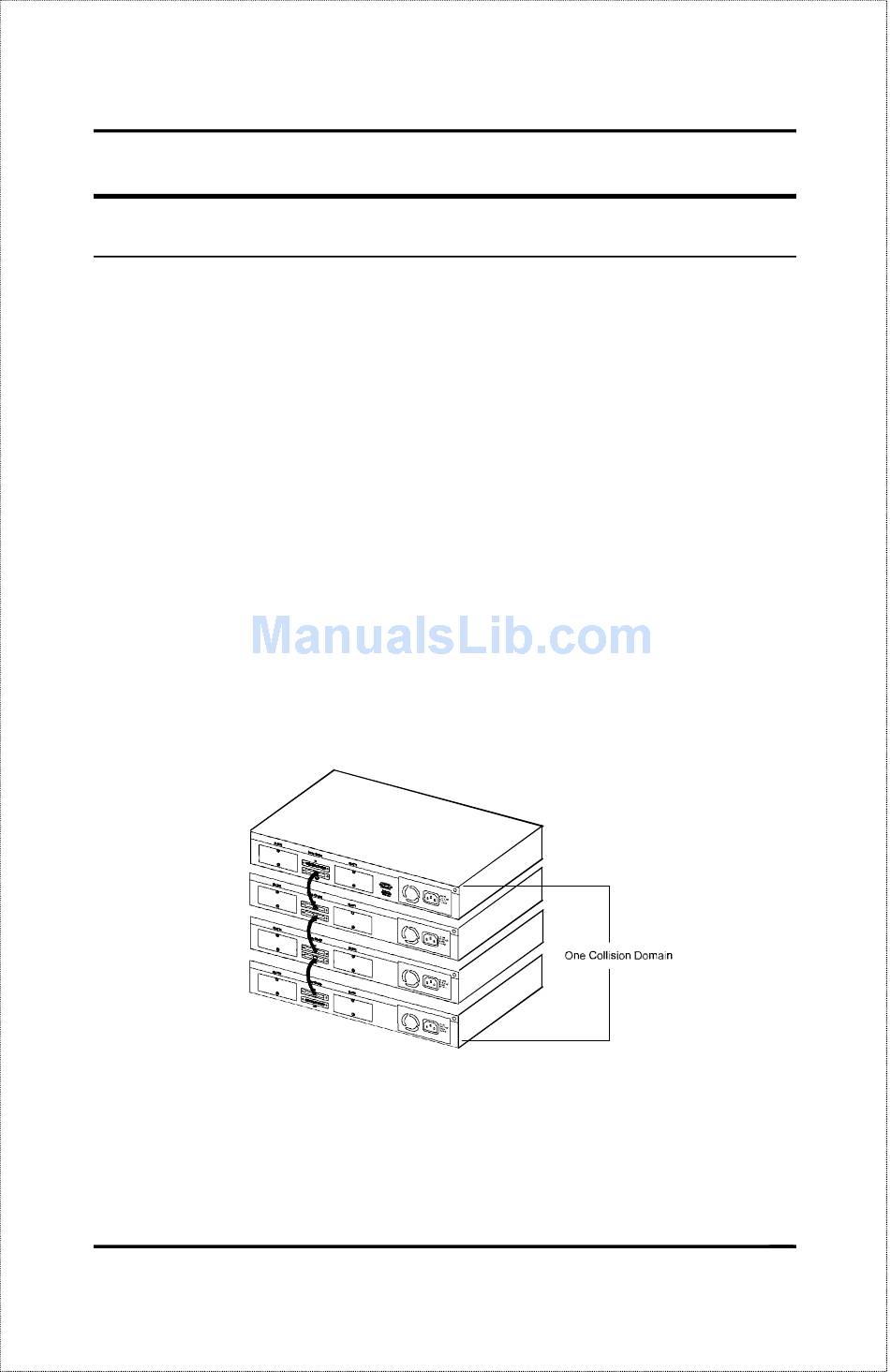

The figure above shows an unsegmented hub stack. All hubs in the stack
are in the same collision domain because they are connected together
through the daisy-chain ports.
Master Hub Setup and Management 41
