Uplift Desk ACC055 Manual

Track Spacer
ACC055

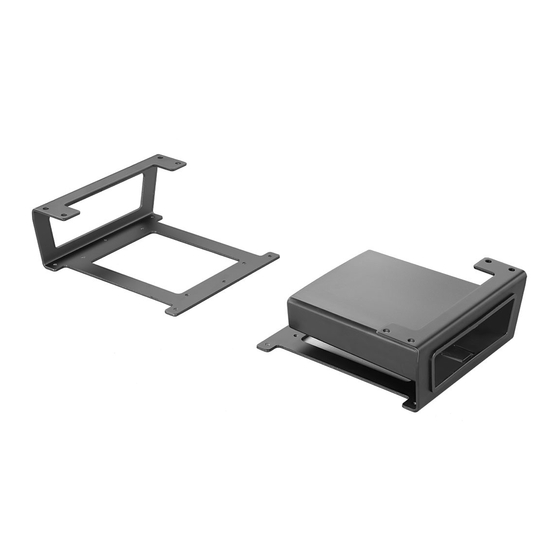

Package Contents

Track spacer bracket
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Track spacer bracket with cubby
(qty 1)

CPU Holder Mounting

For mounting your Track Spacer with an UPLIFT Desk CPU Holder.
Parts needed from your CPU Holder box:
16'' CPU Holder track
M4x10 Machine screws
(qty 1)
Track guard
Step 1
Using eight M4x10 Machine screws, attach the CPU Holder
track to the Track spacer brackets in the orientation shown
at the left. The Track spacer bracket with cubby should be
facing the front of the desk.
Note: you may also rotate the rear bracket 180° (see below)
to fit the assembly in other locations under your desktop.
IMPORTANT NOTE:
If you are installing this Track Spacer on an UPLIFT 4-leg desk
with front and rear crossbars, you will need to first remove the
plastic cubby from the Track spacer bracket to avoid interfer-
ence with the front crossbars.
(qty 12)
5/8'' Wood screws
(qty 8)
Back bumper
