IntesisBox
BACnet/IP Server – Notifier ID3000
Connections
Notifier ID3000
panel
See Note 2
________________________________________________________________________________________
Notes:
1.
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (9 to 30 Vdc).
•
The power supply can be connected to earth but only through the negative terminal, never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the AC power
•
supply to earth, and make sure the same power supply is not supplying any other device.
2.

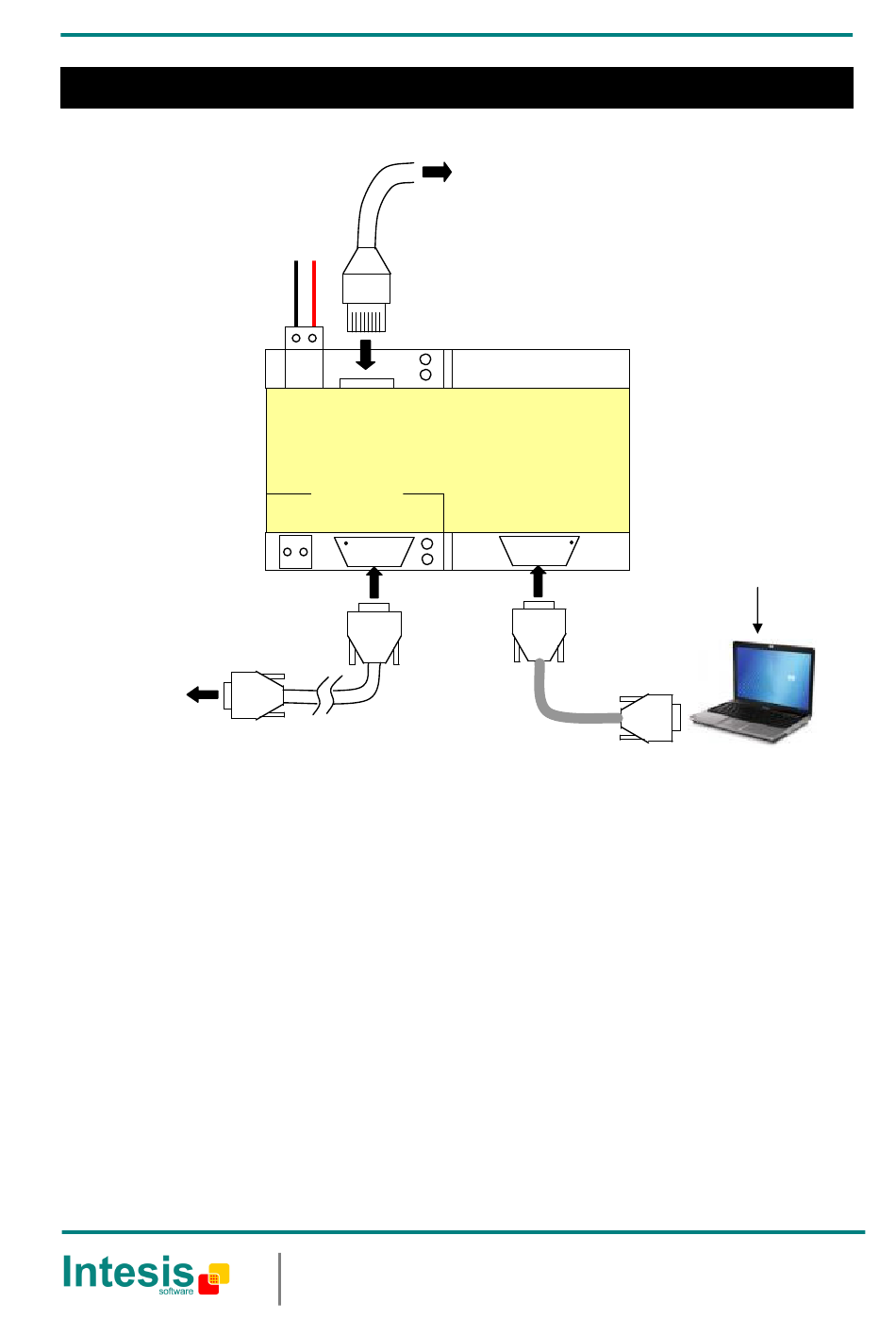

Connection with the Notifier panel: Connect the serial cable EIA232 coming from the Notifier panel to the connector Notifier ID3000
EIA232 of IntesisBox, this is a DB9 male (DTE) connector in which only the lines TX, RX and GND are used. In the Notifier panel, it
can be connected either to the EIA232 connector of the main board or to the additional ISO-EIA232 board, see details of this
connection in the user's manual. Respect the maximum distance of 15 meters in this serial line EIA232.
BACnet/IP connection: Connect the cable coming from the BACnet/IP client device to the connector ETH of IntesisBox, use a
crossover ethernet CAT5 cable if connecting directly to a BACnet/IP client device, or a straight ethernet CAT5 cable if connecting to a
hub or switch of the LAN of the building. If communicating through the LAN of the building contact the network administrator and
make sure that UDP traffic and the port used (47808 by default) are allowed through all the LAN path.
3.
Use the software LinkBoxBacnet to configure IntesisBox. See the user's manual for details.
This information is subject to change without notice.
Power
See Note 1
Ethernet
RJ45
-
+
Ethernet
CMN 24Vac
BACnet/IP
9 - 30Vdc
Max.125 mA
24Vac
IntesisBox
Max.127mA
50-60Hz
Notifier ID3000
EIA232
URL
http://www.intesis.com
email
info@intesis.com
tel
+34 938047134
BACnet/IP
client
See Note 2
®
www.intesis.com
PC Console
Console wire 1.8 m long.
DB9 Female - DB9 Male
standard. Supplied.
Installation Manual
LinkBoxBacnet
Only needed for
configuration
See Note 3
Doc. Rev.2
3 / 5
