IntesisBox
BACnet/IP Server – Notifier ID3000

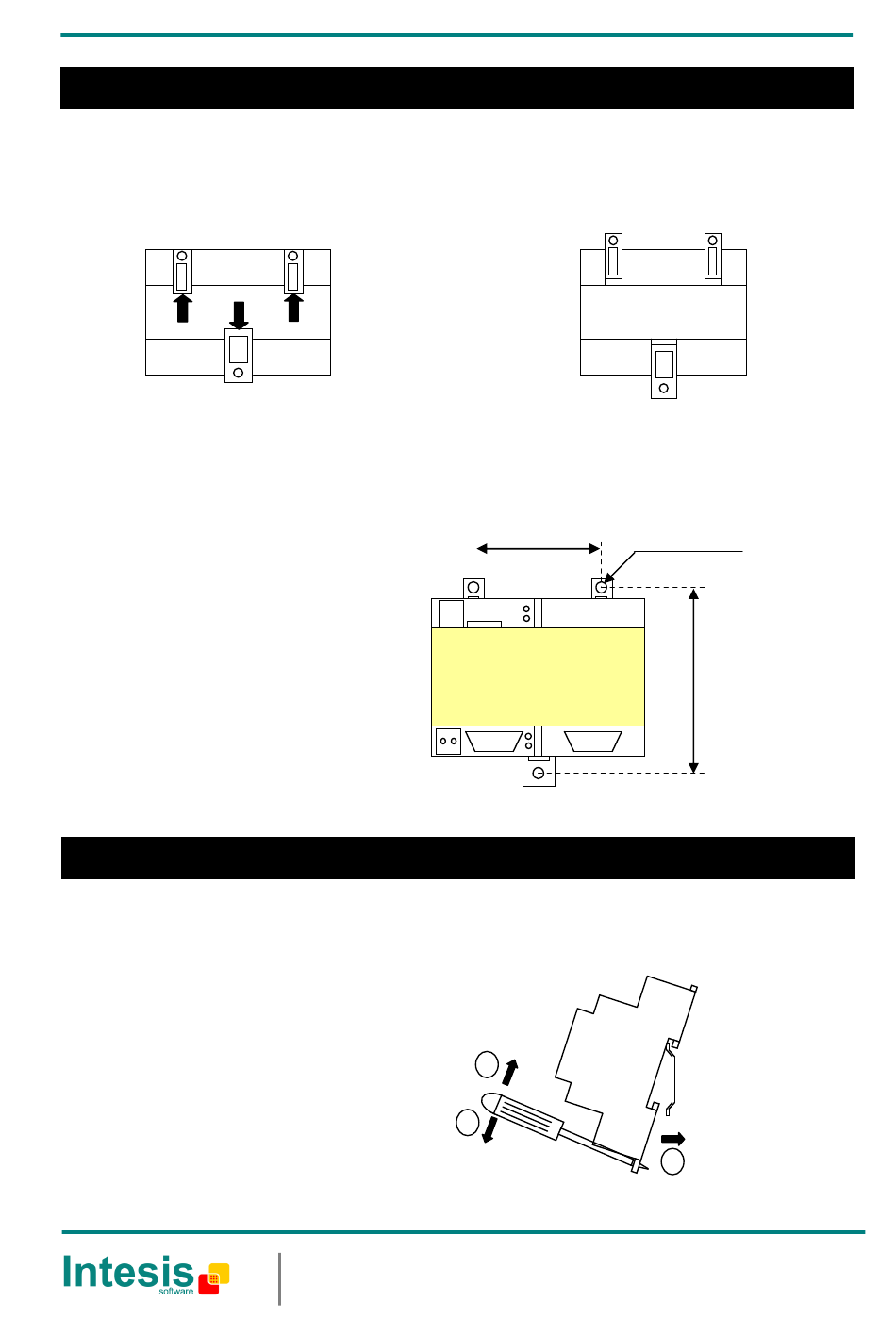

Wall mount
1.
Separate the fixing clips in the bottom of the box, pushing them to the outside until hear the "click" which
indicates that now the clips are in position for wall mount, see in the figure below.
Clips in their original position, for DIN rail
mount
2.
Use the holes of the clips to fix the box in the wall using screws. Use the template below for the wall holes.
Top view of the box
DIN rail mount
With the clips of the box in their original position, insert first the box in the upper edge of the DIN rail and later insert
the box in the down part of the rail, using a small screwdriver and following the steps in the figure below.
This information is subject to change without notice.
Botton view of the box
Side view of the box
URL
http://www.intesis.com
email
info@intesis.com
tel
+34 938047134
Clips in position for wall mount
61 mm
®
IntesisBox
www.intesis.com
1
3
Installation Manual
Ø 3 mm
100 mm
DIN Rail
2
Doc. Rev.2
2 / 5
