4 Connections

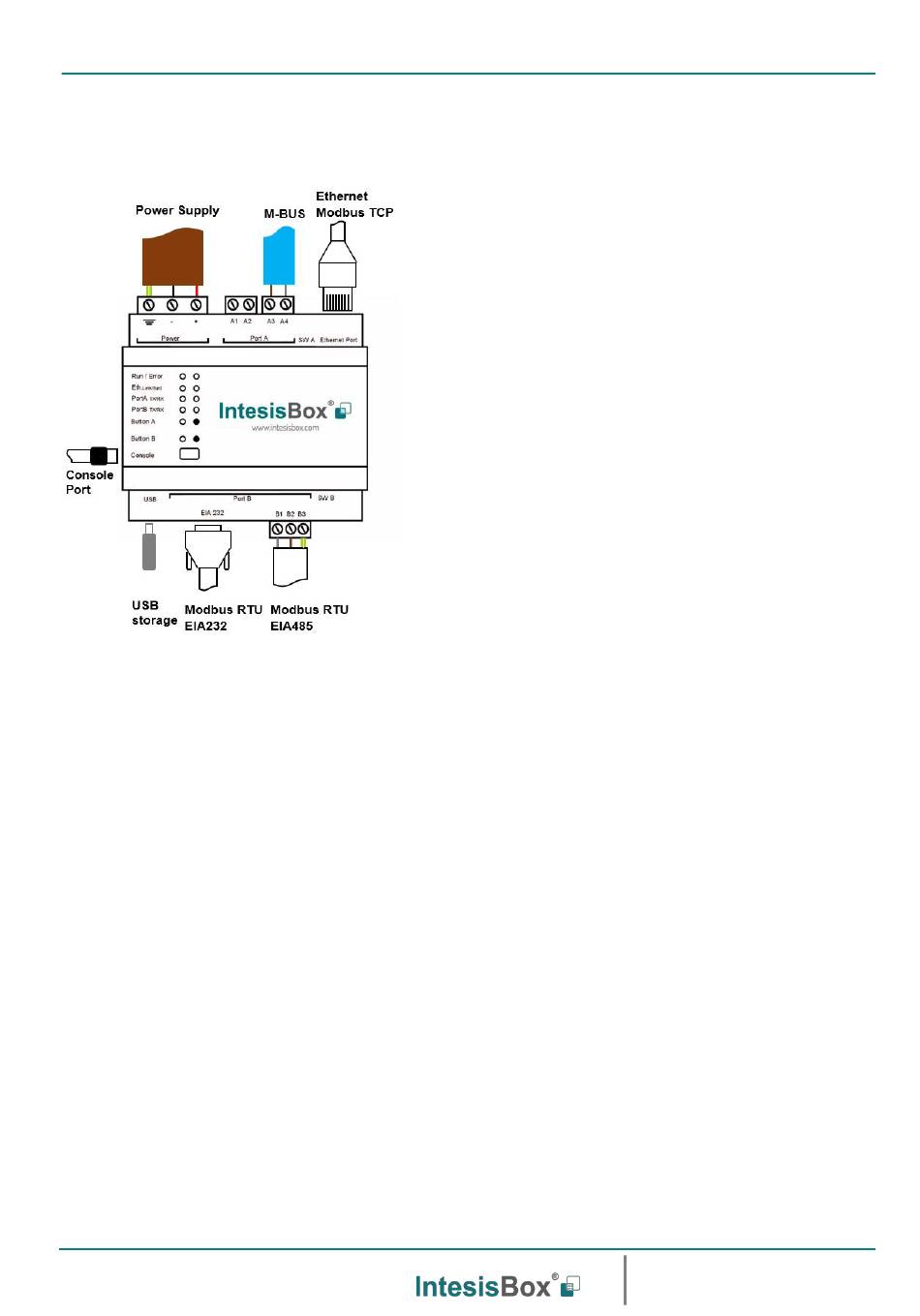

Find below information regarding the IntesisBox connections available.
PortA / MBUS
Connect the MBUS bus to connectors A3 (+) and A4 (-) of gateway's PortA. IntesisBox provides 36VDC M-Bus
voltage to the bus.
PortB / Modbus RTU
Connect the EIA485 bus to connectors B2 (+), B1 (-) and A1 or A2 (SNGD) or to connectors B1 (-), B2 (+) and B3
(SNGD) of gateway's PortB. Respect the polarity.
Note for PortB; Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters,
maximum 32 devices connected to the bus, and in each end of the bus it must be a termination resistor of 120 Ω.
The gateway has an internal bus biasing circuit that incorporates the termination resistor. If you install the gateway
in one of the ends of the bus, then do not install an additional termination resistor in that end.
Connect the serial cable EIA232 coming from the external serial device to the EIA232 connector of gateway's PortB.
This is a DB9 male (DTE) connector in which only the lines TX, RX and GND are used. Details of the pinout can be
seen in the user's manual. Respect the maximum distance of 15 meters.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user manual
for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
Ensure proper space for all connectors when mounted (see section 7).
© Intesis Software S.L.U. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SLU
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and SELV
rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the
voltage applied is within the range admitted (check table
below). The power supply can be connected to earth but only
through the negative terminal, never through the positive
terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac).
Do not connect any of the terminals of the AC power supply to
earth, and make sure the same power supply is not supplying
any other device.
Ethernet / Modbus TCP
Connect the cable coming from the IP network to the connector
ETH of the gateway. Use an Ethernet CAT5 cable. If
communicating through the LAN of the building, contact the
network administrator and make sure traffic on the port used is
allowed through all the LAN path (check the gateway user manual
for more information). By default, the gateway has DHCP enabled.
If disabled, the default IP is 192.168.100.246.
