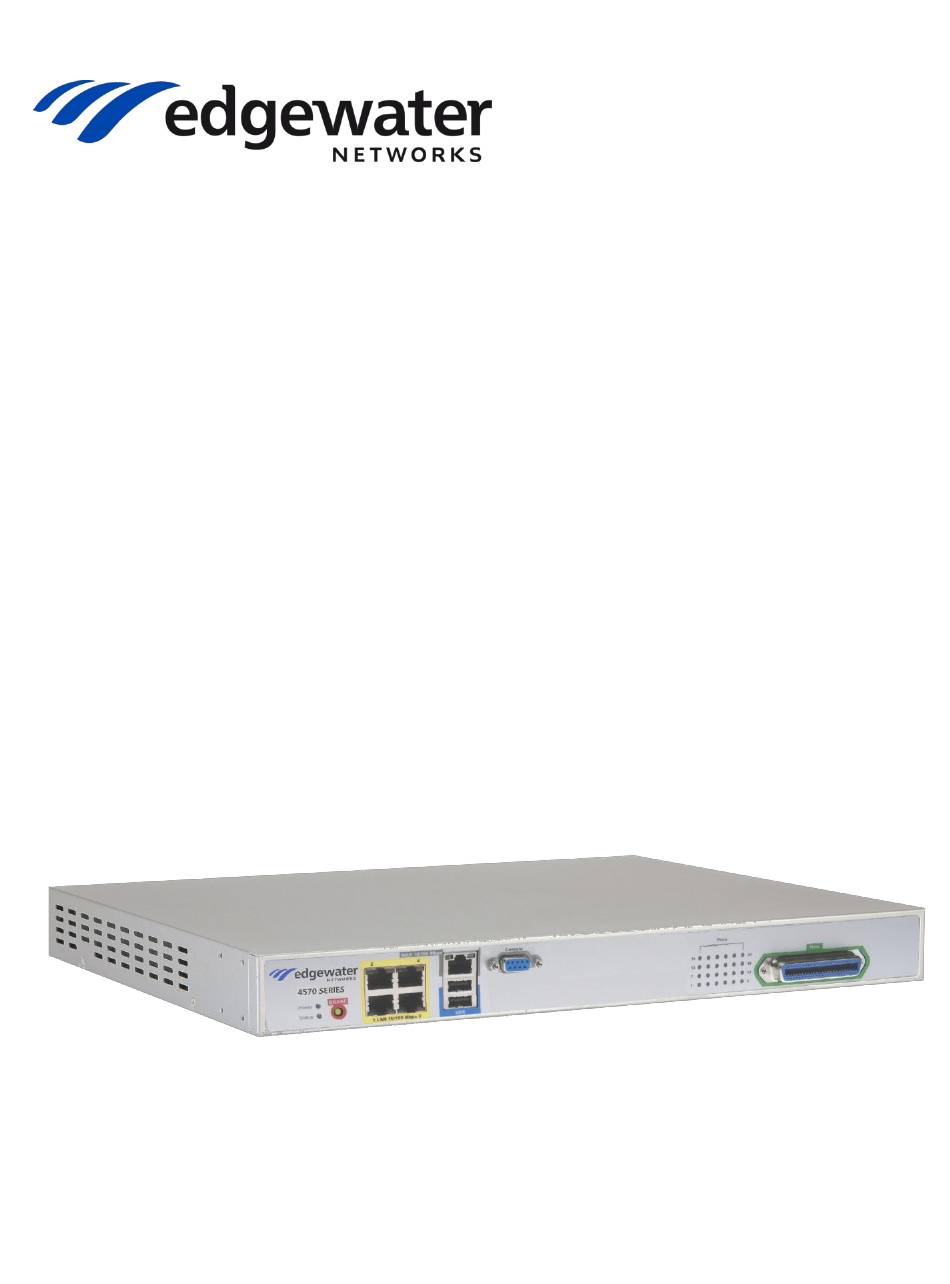

- Page 1 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Version 1.0...
- Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
-
Page 3: Table Of Contents
Back Panel ....................5 Installation ......................6 Required Tools and Cables ................. 6 Step 1: Install the EdgeMarc 4576 Chassis ..........6 Rack Mount Installation ..............6 Step 2: Connect to the LAN and WAN ............7 Connecting to the LAN ..............8 Connecting to a WAN Router, Cable Modem or DSL Modem .. -
Page 4: Typographic Conventions
Preface Thank you for purchasing the EdgeMarc 4576. This guide provides instructions for installing the EdgeMarc 4576 and configuring basic software settings. It is intended for network installers, network operators, and security officers. Typographic Conventions Task steps are presented in numbered lists. User inputs are displayed in boldface type and can represent either keyboard input or mouse selections in a browser window. -
Page 5: Overview

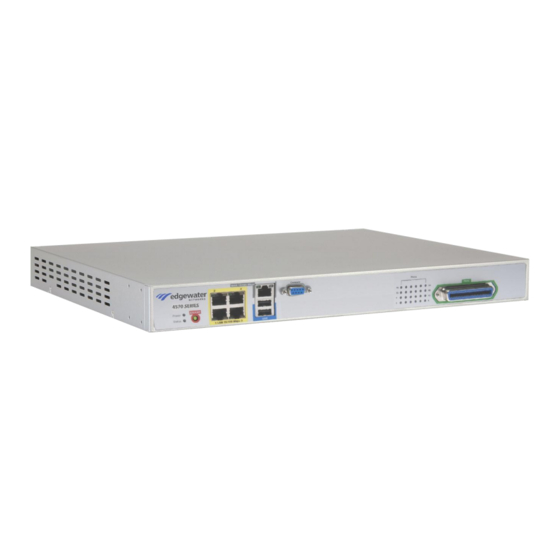

EdgeMarc 4576 Enterprise Session Border Controller The EdgeMarc 4576 combines an 24 FXS port Integrated Access Device (IAD) and multiple voice and data features into a single, easy to use enterprise session border controller. Features include a single Ethernet WAN port, a 4 port managed VLAN switch, and integrated analog phone ports. - Page 6 Per call statistics that include mean opinion score (average and minimum), jitter, latency, and packet loss. Alarms for poor MOS scores. Active call count indicators. Analog Voice The EdgeMarc 4576 features 24 FXS ports for connecting analog and key system phones to the network.
-
Page 7: Front Panel
Caution Using the Erase button as outlined above means any configuration made to the EdgeMarc 4576 will be lost. Erasing the configuration means that IP phones installed behind the EdgeMarc 4576 will not work and Internet connectivity or network access for PCs will be down until the system is reconfigured. -
Page 8: Back Panel
EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 10/100 Mbps This port is typically used when connecting the EdgeMarc 4576 to an existing Ethernet WAN router, cable or xDSL modem. This is an auto-sensing, RJ-45 port WAN Port which supports half or full duplex mode. -
Page 9: Installation
Edgewater Documentation CD Regulatory, Compliance, and Safety Information 2. Place the EdgeMarc 4576 on a flat, dry surface such as a desktop, shelf or tray, or install it in a rack as described below. Rack Mount Installation You can install the EdgeMarc 4576 in a 19” rack using the rack mount kit supplied with the product. -
Page 10: Step 2: Connect To The Lan And Wan
EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature specified by the manufacturer. -
Page 11: Connecting To The Lan
2. Connect the other end of the cable to your computer’s Ethernet port. Connecting to a WAN Router, Cable Modem or DSL Modem 1. Connect the Ethernet cable to the Ethernet WAN port on the EdgeMarc 4576 (shown as D in the front panel diagram). - Page 12 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 1. Remove the left side screw:...
- Page 13 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 2. Remove the cable clip: 3. Slide the cable cover to the left and remove:...
- Page 14 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 4. Straighten the cable for space to tighten the right side screw: 5. Slide the cable cover back:...
- Page 15 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 6. Tighten the left side screw: 7. Reattach the cable clip: Installation is complete.
-
Page 16: Step 4: Connect To Power
EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Step 4: Connect to Power The EdgeMarc 4576 comes with an AC power cord for connecting the unit to an AC power outlet. Warning Always connect the AC power cord to an AC outlet suitable for the power supply that came with the unit in order to reduce the risk of damage to it. - Page 17 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 1. Plug one end of the power cord into the power receptacle on the back panel of the EdgeMarc 4576 (shown as A in the back panel diagram). 2. Plug the other end into an AC power outlet.
-
Page 18: Configuring Basic Network Settings
Configuring Basic Network Settings EdgeMarc SBCs feature an easy-to-use graphical user interface that provides access to the VoIP Operating System (VOS) for EdgeMarc so you can manage settings for your deployment. This section explains how to configure basic network settings that enable the EdgeMarc device to function in your IP network. - Page 19 If the System window does not open and "message of the day" displays, select System from the Configuration menu to open the System window. Note For secure network management, change the default user name and password as described in the Edgewater Networks VOS for EdgeMarc User Manual.
-
Page 20: Configuring Basic Lan And Wan Settings
EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Configuring Basic LAN and WAN Settings 1. Select Network from the VOS Configuration menu. The Network window opens:... -
Page 21: Enabling A Lan Connection
EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Enabling a LAN Connection 1. In the LAN Interface Settings section of the Network window, enter the IP address to be used on the local area network. By default, this is set to 192.168.1.1. - Page 22 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide deploying your EdgeMarc behind a firewall, visit our support knowledgebase at http://www.edgewaternetworks.com/kb.
-
Page 23: Specifications
Specifications WAN Ports 1x10/100 Mbps Ethernet LAN Ports 4x10/100 Mbps Ethernet (Managed VLAN Switch) USB Ports 2 (Version 2.0) Analog 24 FXS Ports (50-pin female Amphenol connector) Console Port 1 RS-232 DB9 Female Height 1.7” (43.18 mm) x Width 17” (431.8 mm) x Depth Dimensions 13”... -
Page 24: Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 25: Certification And Compliance
Certification and Compliance Certificates Safety UL, FCC Part 15 (Class A), FCC Part 68 FCC PART 68 NOTICE 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier of [US: EWRDW00B457X]. -
Page 26: Service Requirements
In the event of equipment malfunction, all repairs should be performed by Edgewater Networks or an authorized agent. It is the responsibility of users requiring service to report the need for service to Edgewater Networks or to one of our authorized agents. Service can be facilitated through our office at: Edgewater Networks, Inc. - Page 27 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 info@edgewaternetworks.com...
