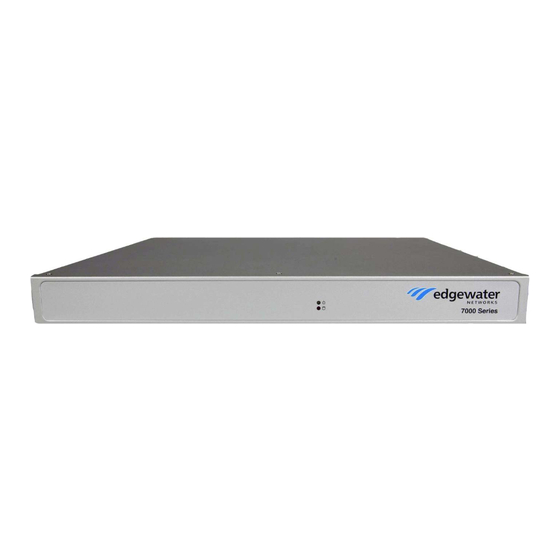

Edgewater Networks EdgeProtect 7300 Hardware Installation Manual

Enterprise session border controller 7000 series
Hide thumbs Also See for EdgeProtect 7300:

Advertisement

Table of Contents

E
EdgeP
Prote
Sessio
S
on Bo
Hardw
H
ware In
Ed
dgewater Ne
tworks, Inc.
28
95 Northwes
stern Parkw
Sa
anta Clara, C
CA 95051
US
SA
htt
p://www.edg
gewaternetw
Ph
hone: 408 35
51-7200
Fa
x: 408 727-6
6430
ect 73
300 E
order
r Con
nstalla
ation G
ay
works.com
Enterp
prise
ntroll
er
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeProtect 7300 and is the answer not in the manual?

Questions and answers

Related Manuals for Edgewater Networks EdgeProtect 7300

Summary of Contents for Edgewater Networks EdgeProtect 7300

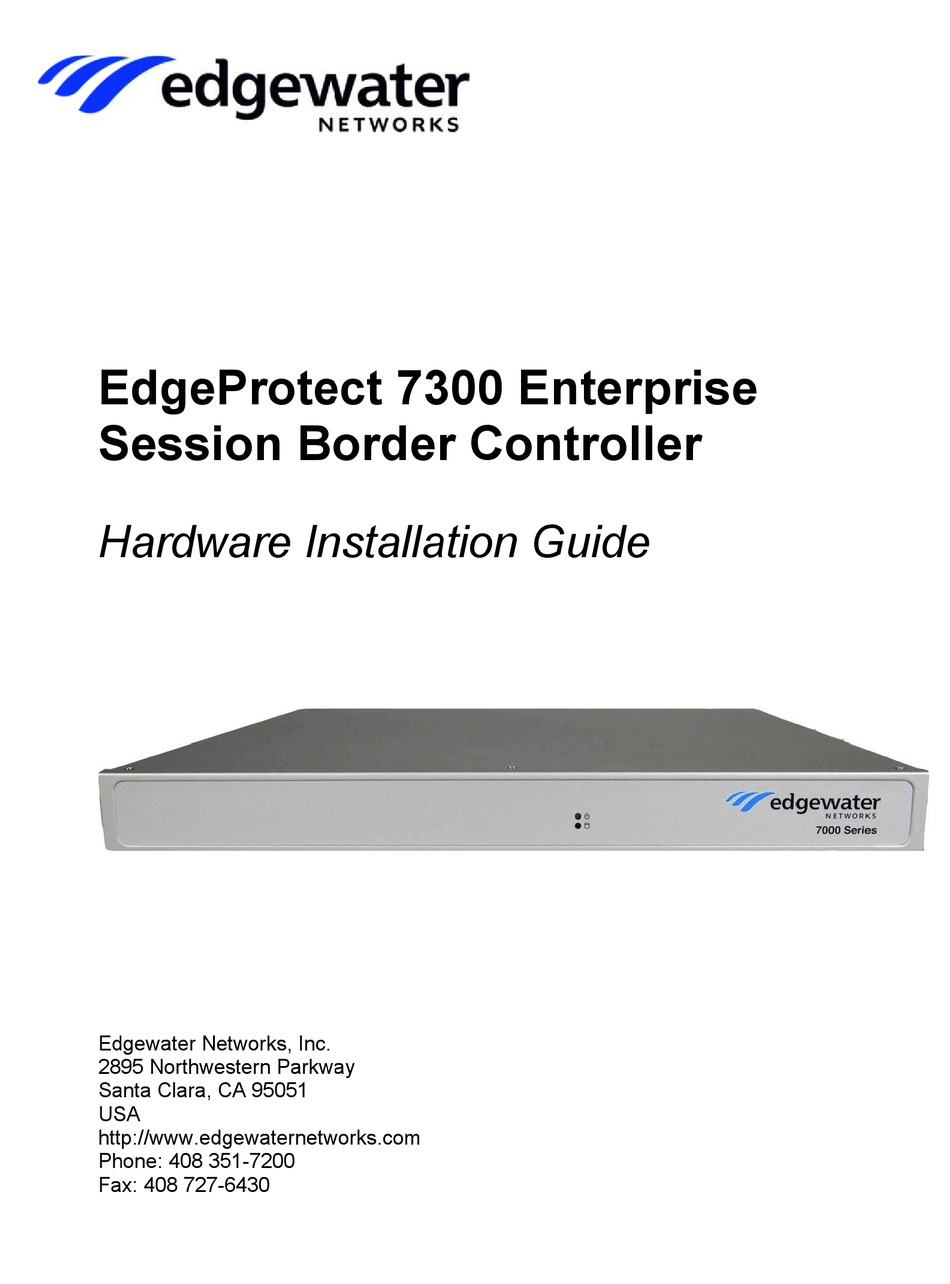

  • Page 1 EdgeP Prote ect 73 300 E Enterp prise Sessio on Bo order r Con ntroll Hardw ware In nstalla ation G Guide dgewater Ne tworks, Inc. 95 Northwes stern Parkw anta Clara, C CA 95051 p://www.edg gewaternetw works.com hone: 408 35 51-7200 x: 408 727-6 6430...
  • Page 2 Trademarks EDGEWATER NETWORKS and Design, EDGEMARC, EDGEPROTECT, and EDGECONNECT are registered trademarks of Edgewater Networks, Inc. EDGEWATER NETWORKS and EDGEVIEW are trademarks of Edgewater Networks, Inc. Any other trademarks appearing in this manual are owned by their respective companies. Copyright This document is protected by copyright and distributed under licenses restricting its use, copying, distribution, and decompilation.
  • Page 3 Desktop, Shelf, or Tray Installation ................9 Rack- Mount Installation ..................10 Connecting the Power and Cables ................10 Connecting to the EdgeProtect 7300 for the First Time .......... 11 A Compliance and Certifications for the EdgeProtect 7300 ........12 USA and Canadian Notices ..................12 Class A Statements ....................
  • Page 4 erview e EdgeProte ect 7300 En terprise Ses ssion Border r Controller c combines vo oice and data atures along side a full su uite of netwo orking capab bilities into a a single, easy y-to-use pliance for m medium to la arge enterpri ise custome ers.

  • Page 5: Edgeprotect 7300 Back Panel

    An RJ-45 to DB9 console cable is included in the box with the EdgeProtect 7300. Input Power Accepts 3-pin shroud female plug for input power Socket ON/OFF Switch System power on/off © 2013 Edgewater Networks, Inc. All rights reserved.

  • Page 6: Edgeprotect 7300 Ethernet Led's

    1000 Mbps Green ACK/LINK LED must be on. This LED will show the system operating at 100 Mbps ACK/LINK LED must be on. This LED will show the system operating at 10 Mbps © 2013 Edgewater Networks, Inc. All rights reserved.
  • Page 7 Serial Craft C Console e Port C Cable P Pinout e EdgeProte ect 7300 is s shipped with h an RJ-45 to o DB-9 cable e (see exam mple below) f nnecting the e RJ-45 seria al craft cons ole port to a a computer to o perform ad dvanced...

  • Page 8: Specifications And Certifications

    RoHS 2.0 Compliant WEEE Compliant Safety UL/cUL, LVD, Gost-R, Mexico CoC, UL-AR Emissions FCC Part 15 Class A, ICES-003, VCCI Class A, KCC, CCC, C-tick, BSMI, ANATEL Immunity MTBF 7300 = 96,000 hrs © 2013 Edgewater Networks, Inc. All rights reserved.

  • Page 9: Physical Installation

    Desktop, Shelf, or Tray Installation 1. Remove the EdgeProtect 7300 and accessories from the shipping container. 2. Place the EdgeProtect 7300 on a flat, dry surface such as a desktop, shelf or tray. © 2013 Edgewater Networks, Inc. All rights reserved.

  • Page 10: Rack- Mount Installation

    Rack- Mount Installation You can install the EdgeProtect 7300 in a 19” rack using the rack mount kit supplied with the product. IMPORTANT Before installing the EdgeProtect 7300 in a rack, take note of the following conditions: Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.

  • Page 11: Connecting To The Edgeprotect 7300 For The First Time

    EdgeProtect 7300 does not hang from the AC outlet. 2. If connecting to an Internet router, Internet DMZ switch, cable modem or DSL modem, connect the Ethernet cable to the WAN Interface port (Port 2) on the EdgeProtect 7300 and the other end to the WAN device.

  • Page 12: Usa And Canadian Notices

    In accordance with Part 15 of the FCC rules, the user is cautioned that any changes or modifications not expressly approved by Edgewater Networks, Inc. could void the user's authority to operate this equipment.
  • Page 13 In most, but not all areas, the sum of RENs of all devices that may be connected to a line, is determined by the total RENs, contact the local telephone company. © 2013 Edgewater Networks, Inc. All rights reserved.
  • Page 14 Class A Stat ements orea hina EEA R Regulat tory No otices E Mark R & T TTE Directi is Edgewater r EdgeProtect t system has been marked d with the CE mark. This m mark indicates mpliance with h EEC Directiv ves 89/336/E EC, 73/23/EE EC 1999/5/EC...
  • Page 15 överensstämmelse med de väsentliga egenskapskrav och övriga relevanta [Swedish]: bestämmelser som framgår av direktiv 1999/5/EG. Íslenska Hér með lýsir Edgewater Networks yfir því að EdgeProtect 7300 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC (Icelandic): Norsk Edgewater Networks erklærer herved at utstyret EdgeProtect 7300 er i samsvar med de...

  • Page 16: Restriction Of Hazardous Substances Directive (Rohs)

    Restriction of Hazardous Substances Directive (RoHS) Edgewater Networks products are RoHS compliant, which means we have eliminated or brought to within acceptable limits: Lead, Mercury, Cadmium, Hexavalent Chromium, Polybrominated Biphenyls, and Polybrominated Diphenylethers. For more information please contact support@edgewaternetworks.com. End of Life Products Edgewater Networks encourages you to recycle your end-of-life Edgewater Networks products in an environmentally considerate way.
  • Page 17 Hard dware e Wa arrant or a period of f three (3) ye ears after sh hipment of th he Product, E Edgewater w warrants tha at such ardware will substantially y conform to o Edgewater’ ’s published specificatio ons for such ardware on t he date of o order if prope...
