EdgeMarc 4576
Enterprise Session Border
Controller
Installation Guide
Version 1.0
Edgewater Networks / 2895 Northwestern Parkway, Santa Clara, CA 95051
Phone: +1 (408) 351-7200
Edgewater Networks / 2895 Northwestern Parkway, Santa Clara, CA 95051
Phone: +1 (408) 351-7200
Ed
/ Email: support@edgewaternetworks.com
/ Email: support@edgewaternetworks.com
EWN025-01-B001
100-4600-001
Advertisement
Table of Contents
Related Manuals for Edgewater Networks EdgeMarc 4576
Summary of Contents for Edgewater Networks EdgeMarc 4576

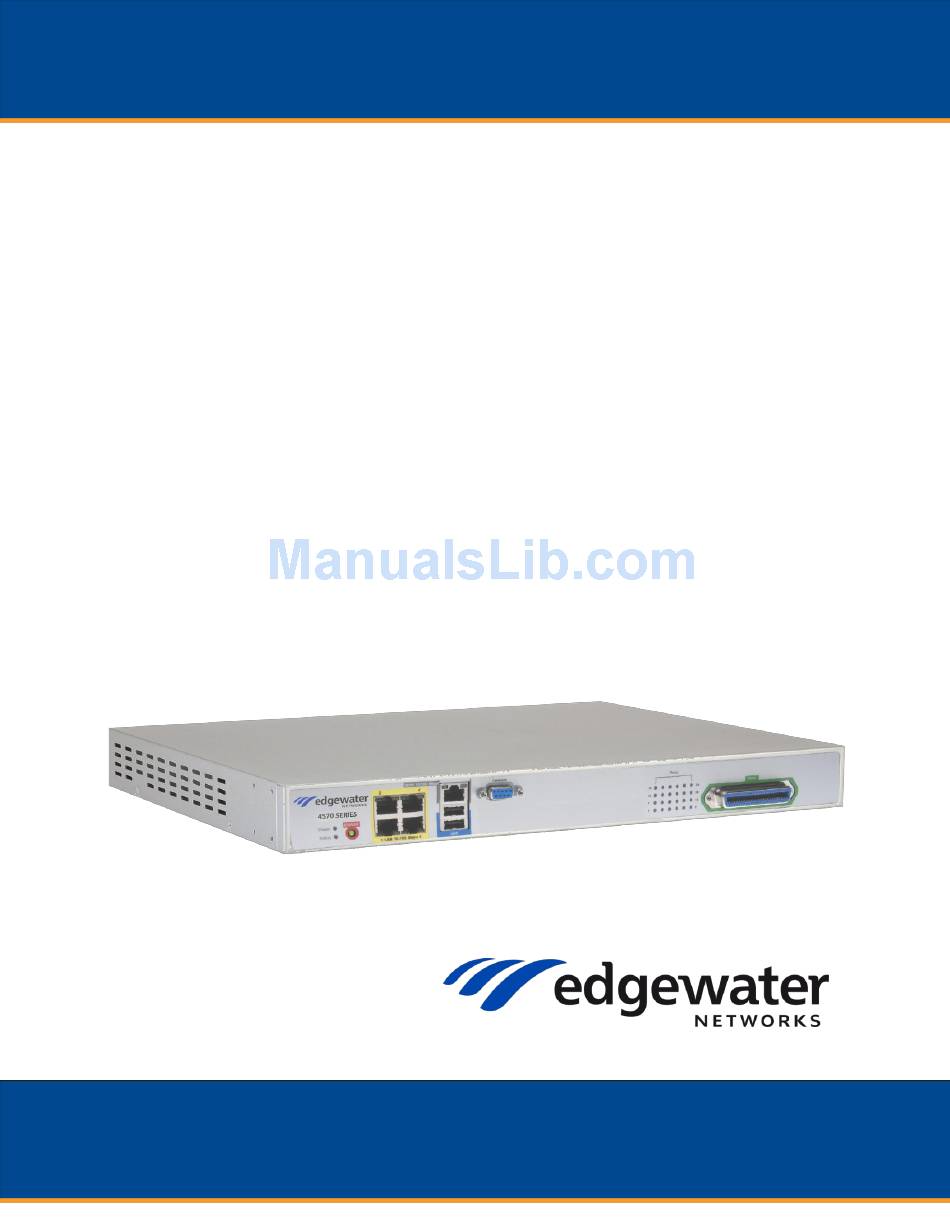

- Page 1 EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Version 1.0 Edgewater Networks / 2895 Northwestern Parkway, Santa Clara, CA 95051 Phone: +1 (408) 351-7200 / Email: support@edgewaternetworks.com Edgewater Networks / 2895 Northwestern Parkway, Santa Clara, CA 95051 Phone: +1 (408) 351-7200 / Email: support@edgewaternetworks.com...
- Page 2 EdgeMarc is a trademark of Edgewater Networks, Inc. in the United States and other countries. Any other trademarks appearing in this manual are owned by their respective companies.
-
Page 3: Table Of Contents
Preface ......................1 Typographic Conventions ..............1 Contact and Support Information ............1 Overview ....................... 2 EdgeMarc 4576 Multiple T1 Session Border Controller ...... 2 Front Panel ..................3 Back Panel ..................5 Installation ....................6 Required Tools and Materials ............. 6 Step 1: Install the EdgeMarc 4576 Chassis ........ -
Page 4: Preface
Preface Thank you for purchasing the EdgeMarc 4576. This guide provides instructions for installing the EdgeMarc 4576 and configuring basic software settings. It is intended for network installers, network operators, and security officers. Typographic Conventions Task steps are presented in numbered lists. User inputs are displayed in boldface type and can represent either keyboard input or mouse selections in a browser window. -
Page 5: Overview
EdgeMarc 4576 Multiple T1 Session Border Controller The EdgeMarc 4576 combines a 24 FXS port IAD and multiple voice and data features into a single, easy-to-use enterprise Session Border Controller (SBC). Feature... -
Page 6: Front Panel
Alarms for poor MOS scores. Active call count indicators. Analog Voice The EdgeMarc 4576 features 24 FXS ports for connecting analog and key system phones to the network. Front Panel Name Description Power LED... - Page 7 Caution Using the Erase button as outlined above means any configuration made to the EdgeMarc 4576 will be lost. Erasing the configuration means that IP phones installed behind the EdgeMarc 4576 will not work and Internet connectivity or network access for PCs will be down until the system is reconfigured.
-
Page 8: Back Panel
EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Back Panel Description LED Label Power Connector Accepts the plug from the supplied power cord to connect the unit to an AC power outlet. Power Switch Turns the system power on or off. -
Page 9: Installation
Installation Observe the following guidelines when installing the EdgeMarc 4576: Always verify that the AC cord is disconnected from a power source prior to installation. Do not stack multiple units on top of each other, as this can cause overheating. -
Page 10: Step 1: Install The Edgemarc 4576 Chassis
Desktop Installation 1. Remove the EdgeMarc 4576 and accessories from the shipping container. 2. Place the EdgeMarc 4576 on a flat, dry surface such as a desktop, shelf or tray. Rack Mount Installation You can mount the EdgeMarc 4576 in a 19” rack using the rack mount kit supplied with the product. -
Page 11: Step 2: Connect To The Lan And Wan
4. If connecting to a WAN router, cable modem or DSL modem, connect the Ethernet cable to the Ethernet WAN port on the EdgeMarc 4576 and the other end to the WAN device. 5. If connecting to the WAN using the T1, connect the T1 cable to the T1/E1 port and the other end of the cable to the T1 line. -
Page 12: Step 3: Install The Amphenol Connector
EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Step 3: Install the Amphenol Connector The EdgeMarc 4576 includes 24 integrated Phone/FXS ports for connecting analog and key system phones to the network. The Phone/FXS ports require a 90 degree, 50- pin Amphenol type connector (not included). - Page 13 EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 2. Remove the cable clip:...
- Page 14 EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 3. Slide the cable cover to the left and remove: 4. Straighten the cable for space to tighten the right side screw:...
- Page 15 EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 5. Slide the cable cover back: 6. Tighten the left side screw:...
- Page 16 EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide 7. Reattach the cable clip: Installation is complete.
-
Page 17: Step 4: Connect To Power
EdgeMarc EdgeMarc 4576 Enterprise Session Border Controller Installation Guide Step 4: Connect to Power The EdgeMarc 4576 comes with an AC power cord for connecting the unit to an AC power outlet. Warning Always connect the AC power cord to an AC outlet suitable for the power supply that came with the unit in order to reduce the risk of damage to it. - Page 18 Step 6: Plan Your Configuration The EdgeMarc 4576 can be deployed as a Session Border Controller in a network. It can also be deployed in a network behind an existing firewall. For more information about deploying your EdgeMarc behind a firewall, visit our support knowledgebase at...
- Page 19 Note When deploying VoIP services, all connected LAN switches or routers must support full duplex mode. For details on configuring the EdgeMarc 4576, refer to the EdgeMarc VOS online help and the VoIP Operating System (VOS) for EdgeMarc User Manual.
-
Page 20: Specifications
Specifications WAN Ports 1x10/100 Mbps Ethernet LAN Ports 4x10/100 Mbps Ethernet (Managed VLAN Switch) Serial Port RS-232 DB9 (Female) USB Ports 2 (Version 2.0) Analog 24 FXS Ports (50-pin female Amphenol connector) Console Port 1 RS-232 DB9 Female Height 1.7” (43.18 mm) x Width 17” (431.8 mm) x Depth Dimensions 13”... -
Page 21: Warranty Information
Warranty Information Hardware Warranty For a period of one (1) year after shipment of the Product, Edgewater warrants that such Hardware will substantially conform to Edgewater’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Edgewater. -
Page 22: Certification And Compliance
If trouble is experienced with this equipment, Model 4576 for repair or warranty information, please contact Edgewater Networks Technical Assistance Center at 408.351.7255 If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem... -
Page 23: Fcc Statement
EdgeMarc EdgeMarc 4576 Converged Networking Router Installation Guide Caution This equipment contains no user-serviceable parts. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of Model 4576 equipment does not disable your alarm equipment. - Page 24 Edgewater Networks, Inc. 2895 Northwestern Parkway Santa Clara, CA 95051 Phone: (408) 351-7200 info@edgewaternetworks.com...
