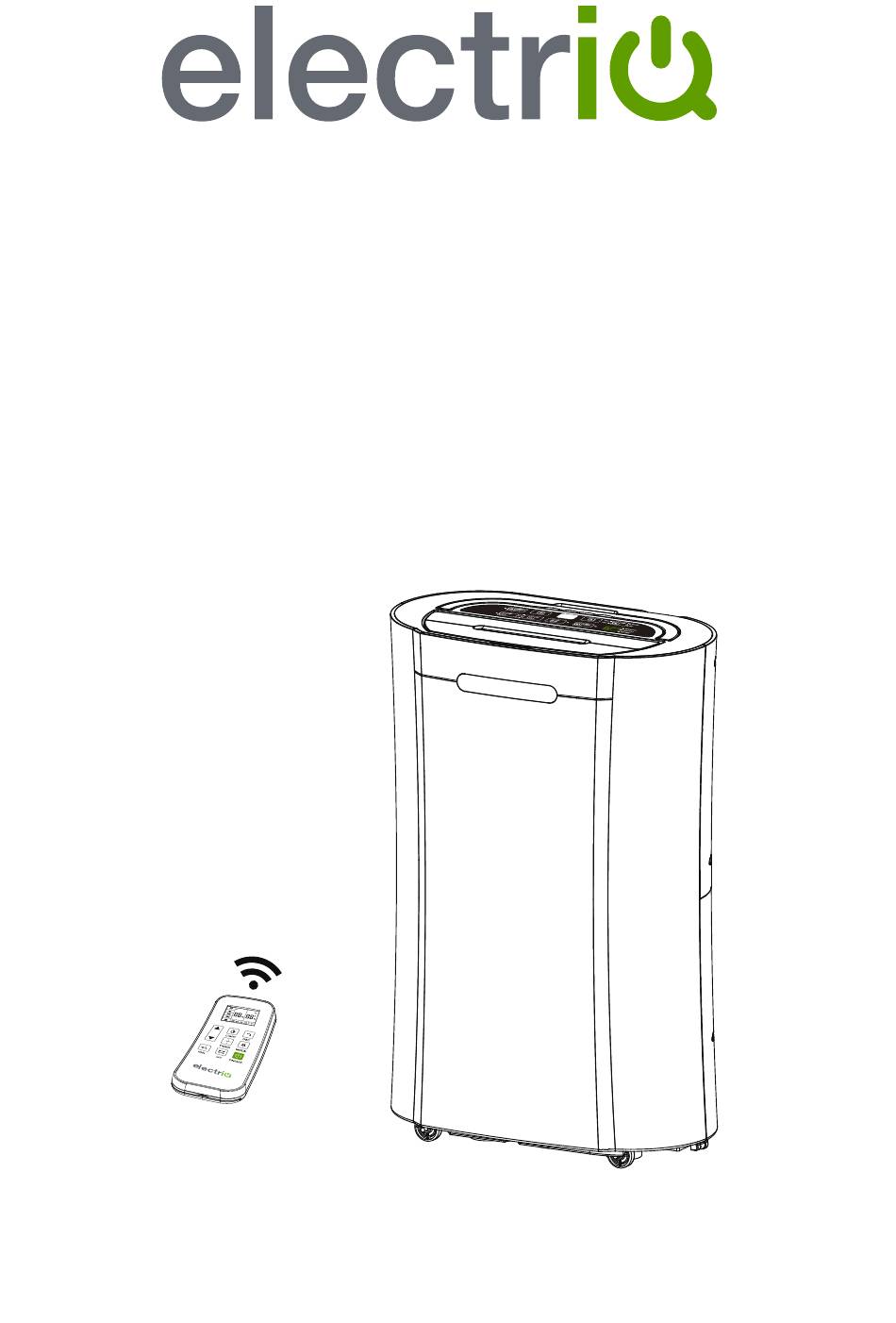

Premium Low Energy Dehumidifier &
Air Purifier with UV and Plasma Ionizer
Smart WIFI App and Remote Controlled
CD12PRO-LE – 12 litres per day
CD20PRO-LE – 20 litres per day
USER MANUAL
Thank you for choosing ElectrIQ
Please read this user manual before using this innovative Dehumidifier
and keep it safe for future reference
Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ CD12PRO-LE
Summary of Contents for ElectrIQ CD12PRO-LE
- Page 1 CD20PRO-LE – 20 litres per day USER MANUAL Thank you for choosing ElectrIQ Please read this user manual before using this innovative Dehumidifier and keep it safe for future reference Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Installation Parts Control Panel Quick reference guide Remote Control Features How to Connect to WiFi Positioning Water Drainage Care and Maintenance Frequently Asked Questions Troubleshooting Technical Data... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important Carefully read the instructions before operating the unit This appliance is only intended for use in an indoor domestic environment. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. Rating: This unit must be connected to a 220-240 V / 50 Hz earthed outlet. - Page 4 Do not place the unit next to heat sources (e.g. electrical fires, fireplaces, etc.) Avoid mishandling the dehumidifier. Dropping or throwing the unit can cause damage to its internals and increases the risks of operating it. Do not store or use gasoline, petrol, paint, solvents or other flammable vapours or liquids in the vicinity of this dehumidifier or any other appliance.
-
Page 5: Installation
Easy to use controls Low energy only uses a fraction of the electricity of similar dehumidifiers Great for up to 3 bed (CD12PRO-LE) and 5 bed (CD20PRO-LE) houses Cost effective way to combat mould, condensation and damp Dries laundry more efficiently than a tumble dryer... -
Page 6: Parts
PARTS 1. Louvers 3. Air outlet 2. Handle 4. Humidity indicator light 5. Wheels 6. Control Panel 7. Pre-filter/activated Carbon filter 8. Air inlet 9. Continuous Drain Port 10. Back Cover 11. Water tank 12. Power cord OPTIONAL ● Activated carbon filter (Optional) -
Page 7: Control Panel
CONTROL PANEL Humidity Indicator Down Mode HUMIDITY HIGH SMART MODE INDICATOR LIGHT OPERATION TIMER PLASMA POWER IONISER TANK FULL DEFROST Timer Oscillation Ionizer Power POWER Button POWER Turns the appliance on and off. MODE Button Select the mode of the unit between: SMART / HIGH / LOW / and FAN. The unit will default to SMART mode the first time it is switched on and remains in this mode until another option is chosen. - Page 8 OSC. Button(oscillating function) There are three different options, 45, 90 degree and swing, the louvers will move in swing mode or be fixed in selected position. Use 45 degree or swing for Laundry mode UV Light Button ( For air purification) To select "UV", press the "UV"...
- Page 9 Humidity Level & Timer 2 digit display The led indicator performs the following functions: When the unit is plugged in - It will indicate the room humidity level When one of the humidity setting button is pressed - it will indicate the set humidity, before reverting to showing the current humidity after a few seconds When the timer button is pressed it will indicate in how many hours the timer function will operate, before reverting to showing the current humidity after a...
-
Page 10: Quick Reference Guide
QUICK REFERENCE GUIDE POWER Power Button Press the power button to turn the dehumidifier on and off. Swing control Button Press once to make the louvre swing and press again to lock at 45 degrees, press again to lock at 90 degrees. Do not operate the unit if the self- opening louvers do not open when the unit is powered on. - Page 11 the unit will work until water tank is full as 35%RH is hardly achievable in UK domestic environment. The louvres should be set to either swing mode or to 45 degrees directing the airflow onto clothes / laundry. Do not place clothes directly over the dehumidifier vents. Make sure that there is no obstruction to either the hot air exhaust air flow, or the air inlet.
- Page 12 Other features and Indicators Tank Full Light The red light will illuminate and the unit will beep when the tank is ready to be emptied, or if the water tank is incorrectly inserted. The water level control will shut off the dehumidifier until the empty tank is replaced in its proper position Auto Defrost The appliance will defrost automatically as programmed once the coil sensor detects...
-
Page 13: Remote Control Features
REMOTE CONTROL FEATURES Display Auto Laundry (HIGH) Strong Dehumidification (LOW) Weak Dehumidification Effective light (FAN) Ventilation Timing UV light louver swing Ioniser angle Light Up/Down Timer Mode ON/OFF As well as containing an independent humidistat, allowing the humidity of the room to be measured away from the dehumidifier, the remote control contains many of the same buttons as found on the main unit, as well as a few other features. - Page 14 Buttons on the Remote: ON/OFF Button – Turns the dehumidifier on and off. Mode Button - Select the functions of the unit between: SMART / LAUNDRY / HIGH / LOW / and FAN. The mode selected will be displayed on the left hand side of the screen on the remote.
-
Page 15: How To Connect To Wifi
Other Features on the remote: “FOLLOW ME” Mode – The dehumidifier will work from the humidity reading taken by the remote, rather than from the dehumidifier itself. To do this, the remote sends a humidity reading to the dehumidifier each hour, which is then compared against the current setting, to decide whether the dehumidifier should be operating. -
Page 16: Positioning
When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement, and it should be placed on a dry flat surface. - Page 17 NOTES: Do not remove the water tank immediately after the unit stops. Please wait a while to avoid the water dripping into the unit and causing damage. Only empty the water tank when it is full or before moving or storing the unit. Do not rest the tank on the floor because the bottom of the tank could be uneven and tank may fall and cause the water to spill.
-
Page 18: Care And Maintenance
This unit uses gravity fall to dispose water hence the drain should be lower than the dehumidifier water outlet. Be sure to run the water pipe downward and let the water flow out smoothly. Do not kink or bend the pipe. NOTE: When the continuous drain feature is not being used, reverse the pipe installation, to start the water collecting in the water tank. -
Page 19: Frequently Asked Questions
Clean the water tank Every few weeks, clean the tank to prevent growth of mould, mildew and bacteria. Partially fill the tank with clean water and add a little mild detergent. Swish it around and than empty the tank and rinse. NOTE: Do not use a dishwasher to clean the tank. After cleaning and drying the tank must be reinserted securely into dehumidifier in order to restart operation. -
Page 20: Troubleshooting
Tank is full or is not in the right position-- Empty the tank and light notification replace in the right position. Any other malfunctions will need to be reported to ElectrIQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 21: Technical Data
TECHNICAL DATA CD20PRO-LE CD20PRO-LE Model Voltage 1Ph, 220-240V~ 50Hz 1Ph, 220-240V~ 50Hz Dehumidifying capacity 12 L / day 20 L / day (at 30 C / 80%RH) (at 30 C / 80%RH) Fan Speeds Power Consumption 180W 240W Running Amps 0.91 Amps 1.2 Amps Tank Capacity... - Page 22 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. 1. Has the unit been standing upright for at least 2 hours? 2. Is the unit plugged into the mains? 3. Is the fuse OK? 4.
