USER MANUAL

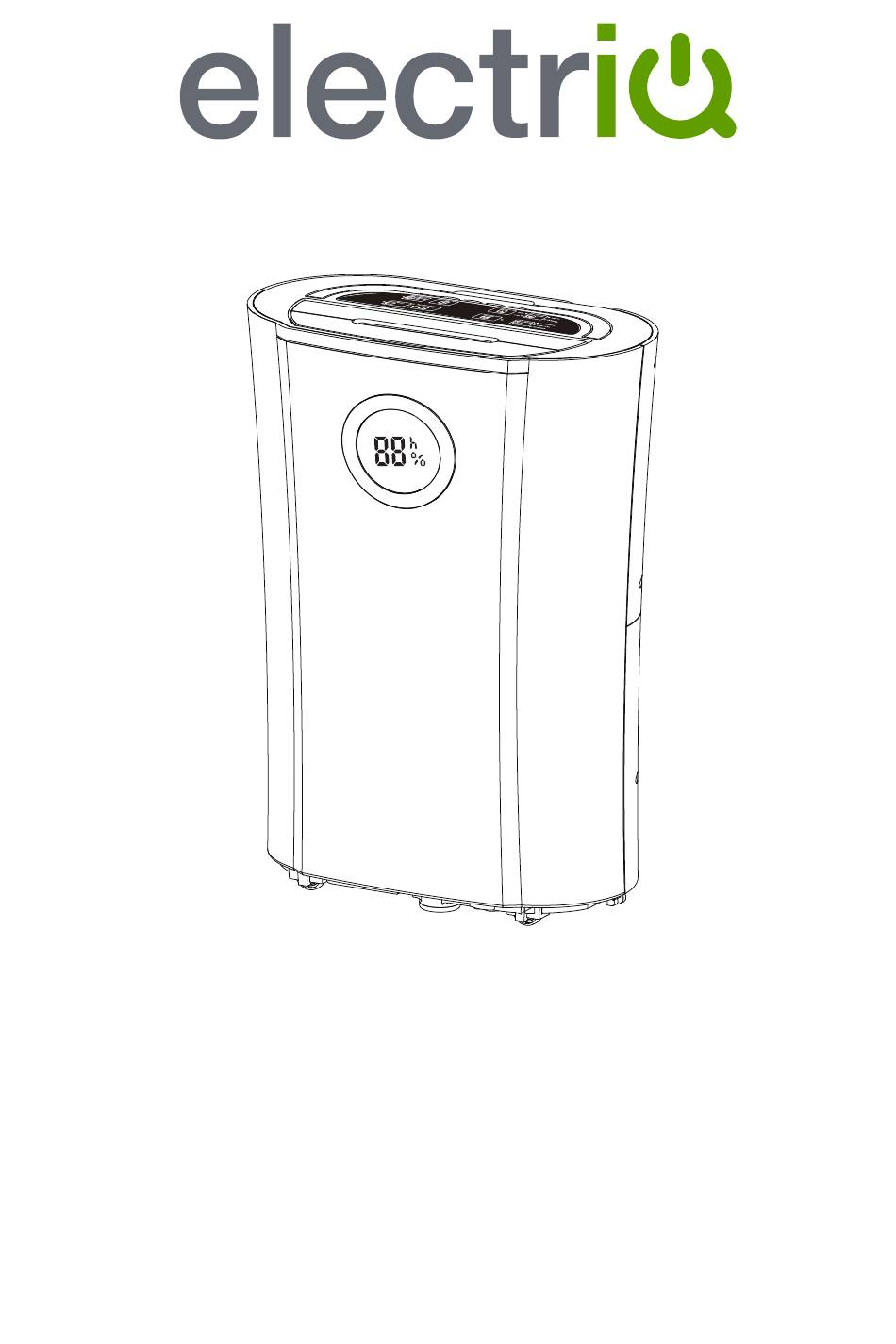

PREMIUM LOW ENERGY COMPRESSOR
DEHUMIDIFIER WITH DIGITAL HUMIDISTAT
AND AIR PURIFIER
CD12LE – 12 litres per day
CD20LE – 20 litres per day
Thank you for choosing electriQ.
Please read this user manual before using this innovative
Dehumidifier and keep it safe for future reference
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
Advertisement
Table of Contents
Related Manuals for ElectrIQ CD12LE
Summary of Contents for ElectrIQ CD12LE
- Page 1 CD12LE – 12 litres per day CD20LE – 20 litres per day Thank you for choosing electriQ. Please read this user manual before using this innovative Dehumidifier and keep it safe for future reference Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS INSTALLATION PARTS CONTROL PANEL QUICK REFERENCE GUIDE POSITIONING WATER DRAINAGE CARE AND MAINTENANCE TROUBLESHOOTING TECHNICAL DATA... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit This appliance is for indoor use only and intended for use in a domestic environment only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. - Page 6 Do not use or store the CD20LE in an unventilated space with an area smaller than 4.1m2 per unit. Do not use or store the CD12LE in an unventilated space with an area smaller than 2.6m2 per unit. If the appliance is installed, used or stored in an unventilated room, the room must...
- Page 7 QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER Exposed to the Near water If the power cable Where small children weather outdoors wires are frayed or cut may be left unattended If an extension lead Where the power cable On a slope or uneven Where there is risk...
-
Page 8: Installation
Easy to use controls Low energy only uses a fraction of the electricity of similar dehumidifiers Great for up to 3 bed (CD12LE) and 5 bed (CD20LE) houses Cost effective way to combat mould, condensation and damp Dries laundry more efficiently than a tumble dryer... -
Page 9: Parts
PARTS 1. Louvers 3. Air outlet 2. Handle 4. Humidity indicator light 5. Wheels 6. Control Panel 7. Pre-filter/activated Carbon filter 8. Air inlet 9. Continuous Drain Port 11. Water tank 10. Back Cover 12. Power cord OPTIONAL Activated carbon filter (Optional) -
Page 10: Control Panel
CONTROL PANEL Humidity Indicator Down Mode HUMIDITY HIGH SMART MODE INDICATOR LIGHT AIR PURIFIER OPERATION TIMER POWER TANK FULL DEFROST Timer Oscillation Power HIGH SMART MODE On/Off AIR PURIFIER OPERATION Water full indicator POWER TANK FULL DEFROST Defrost indicator POWER POWER Turn the appliance on/off MODE Button... - Page 11 OSC. (Oscillation function) There are three different options for the outer louvre on the unit. It can be set at 45 or 90 degrees, or alternatively to swing. Use the dehumidifier at a 45 degree angle or with swing for Laundry mode UV LIGHT (Air purifier function) To activate the UV function press the "UV"...
-
Page 12: Quick Reference Guide
QUICK REFERENCE GUIDE POWER Power Button: Press to turn the dehumidifier on and off. Oscillation Button: Press once to make the louvre swing and press again to lock at 45 degrees, press again to lock at 90 degrees. Do not operate the unit if the self- opening louvers do not open on power on. - Page 13 OTHER FEATURES AND INDICATORS TANK FULL LIGHT When the water tank is full, removed or incorrectly inserted the unit will stop dehumidifying, the red tank full light will illuminate and the unit will beep. Empty the tank and reinsert it correctly to resume operation.
-
Page 14: Positioning
When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement. Place the dehumidifier on a flat dry surface. - Page 15 OTHER FEATURES AND INDICATORS When the water tank is full, the unit will stop automatically. When this happens the TANK FULL red light will show on the control panel, and the unit will bleep. NOTE: Only empty the water tank when it is full or before moving or storing the unit. There are two ways to dispense collected water.
-
Page 16: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. When it is not in use for long periods it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 17: Troubleshooting
Tank is full or is not in the right position-- Empty the tank and replace in the right light notification position. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 18: Technical Data
Technical data CD12LE-V3 CD20LE-V3 Model Voltage 1Ph, 220-240V~ 50Hz 1Ph, 220-240V~ 50Hz Dehumidifying capacity 12 L / day 20 L / day (at 30 C / 80%RH) (at 30 C / 80%RH) Fan Speeds Power Consumption 180W 270W Running Amps 0.91 Amps... - Page 19 UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. 1. Has the unit been standing upright for at least 2 hours? 2. Is the unit plugged into the mains? 3. Is the fuse OK? 4.
