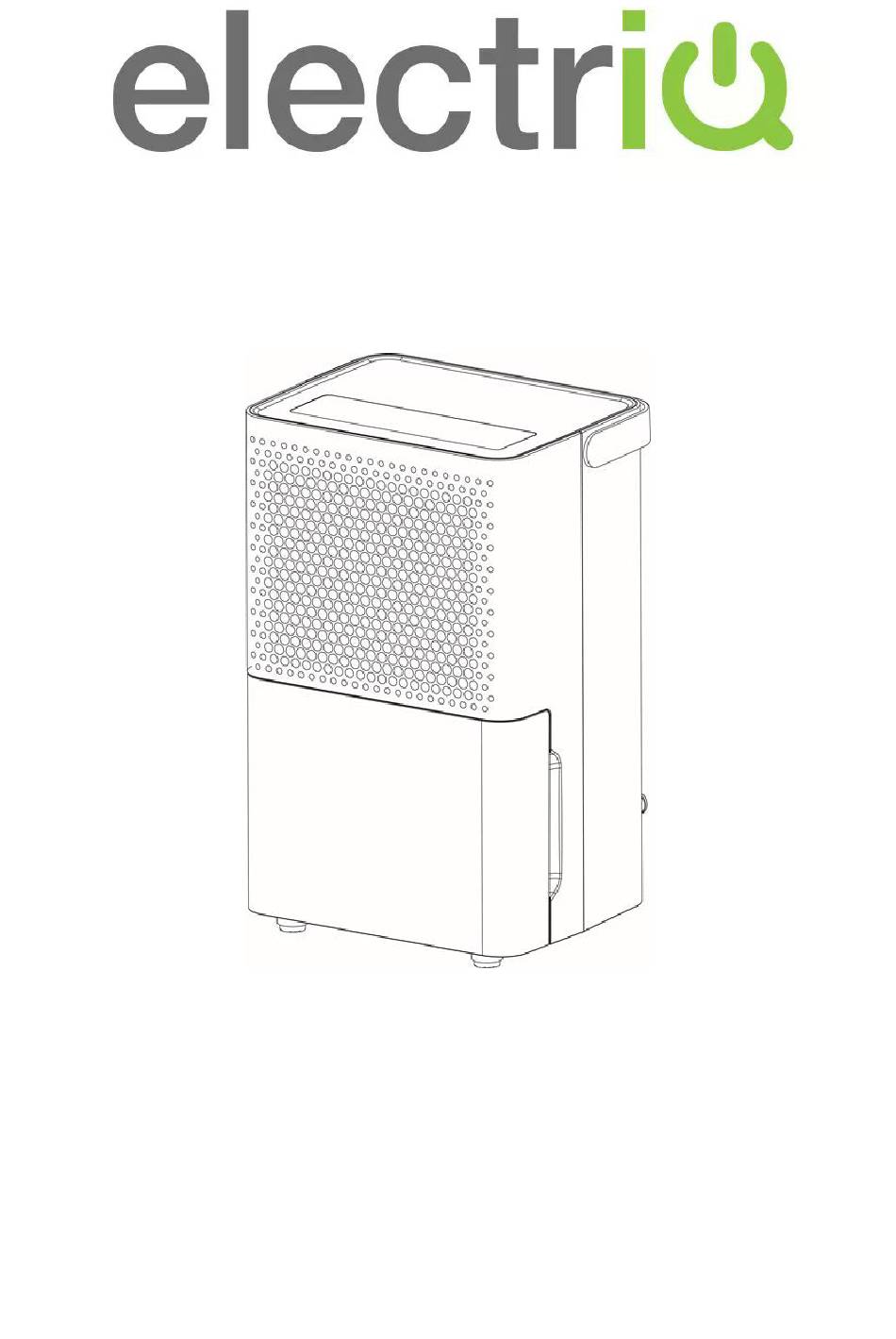

- Page 1 USER MANUAL CD10L 10 LITRE COMPRESSOR DEHUMIDIFIER Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier and keep it safe for future reference Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS VISUAL SAFETY GUIDE FEATURES INSTALLATION POSITIONING THE DEHUMIDIFIER PARTS CONTROL PANEL WATER DRAINAGE CARE AND MAINTENANCE TROUBLESHOOTING TECHNICAL DATA SUPPORT... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 4 • R290 has a low GWP (Global Warming Potential) of 3. • The CD10L contains about 52g of R290 refrigerant gas. • Do not use or store the appliance in an unventilated space with an area smaller than 4m •...
-
Page 5: Visual Safety Guide
QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER FEATURES Your dehumidifier belongs to the electriQ dehumidifier range. Easy to use controls Easy to carry around handle Great for up to 3 bed houses Cost effective way to combat mould, condensation and damp... -
Page 6: Installation
Do not use outdoors. Your electriQ dehumidifier will begin to protect your space from the harmful effects of excessive moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. For this reason, the dehumidifier should be positioned in a central and clear location so that it can draw this moist air towards it from all over the home. -
Page 7: Parts
PARTS HANDLE FILTER FRAME ACTIVATED CARBON FILTER DRAIN PORT CONTROL PANEL POWER CORD STORAGE WATER TANK OPTIONAL ctivated carbon filter (Optional) Replacement Activated carbon filters are available from the retailer under reference: ACFIL-CD10L-V4... -
Page 8: Control Panel
CONTROL PANEL POWER Turn the appliance on/off MODE Select the operating mode of the unit between Laundry and Auto. The fan will operate continuously to monitor the humidity. AUTO MODE: The unit will start dehumidifying when the humidity increases to 5% above the desired humidity and will stop when the humidity drops to 5% below the desired humidity. - Page 9 NOTES • If a permanent drainage pipe is fitted the unit will not stop operating. Setting the desired humidity to around 35% is good for laundry mode, a quick drying boost, or in emergencies. It is not recommended for long normal operation in a domestic or office environment. •...
-
Page 10: Water Drainage
WATER DRAINAGE When the water tank is full, the unit will stop automatically. When this happens the TANK FULL light will show on the control panel. NOTE: Only empty the water tank when it is full or before moving or storing the unit. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. When it is not in use for long periods it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 12: Troubleshooting
Tank is full or is not in the right position-- Empty the tank and replace Water tank full notification Code in the right position. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 13: Technical Data
TECHNICAL DATA Model CD10L-V4 Voltage 220-240V～50Hz Dehumidifying capacity 10L / day (at 30⁰ C / 80%RH) Fan Speeds Power Consumption 240W Running Amps 1.3 Amps Tank Capacity 1.5 litres Desired Humidity Range 30 – 80% IP Rating IPX1 High / Low Pressure 3.8/1.3MPa... -
Page 14: Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. 1. Has the unit been standing upright for at least 2 hours? 2. Is the unit plugged into the mains? 3. Is the fuse OK? 4.
