Summary of Contents for ElectrIQ CD10L-V5

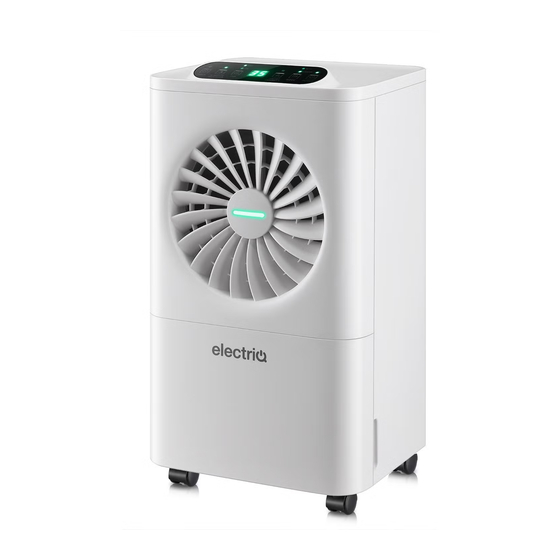

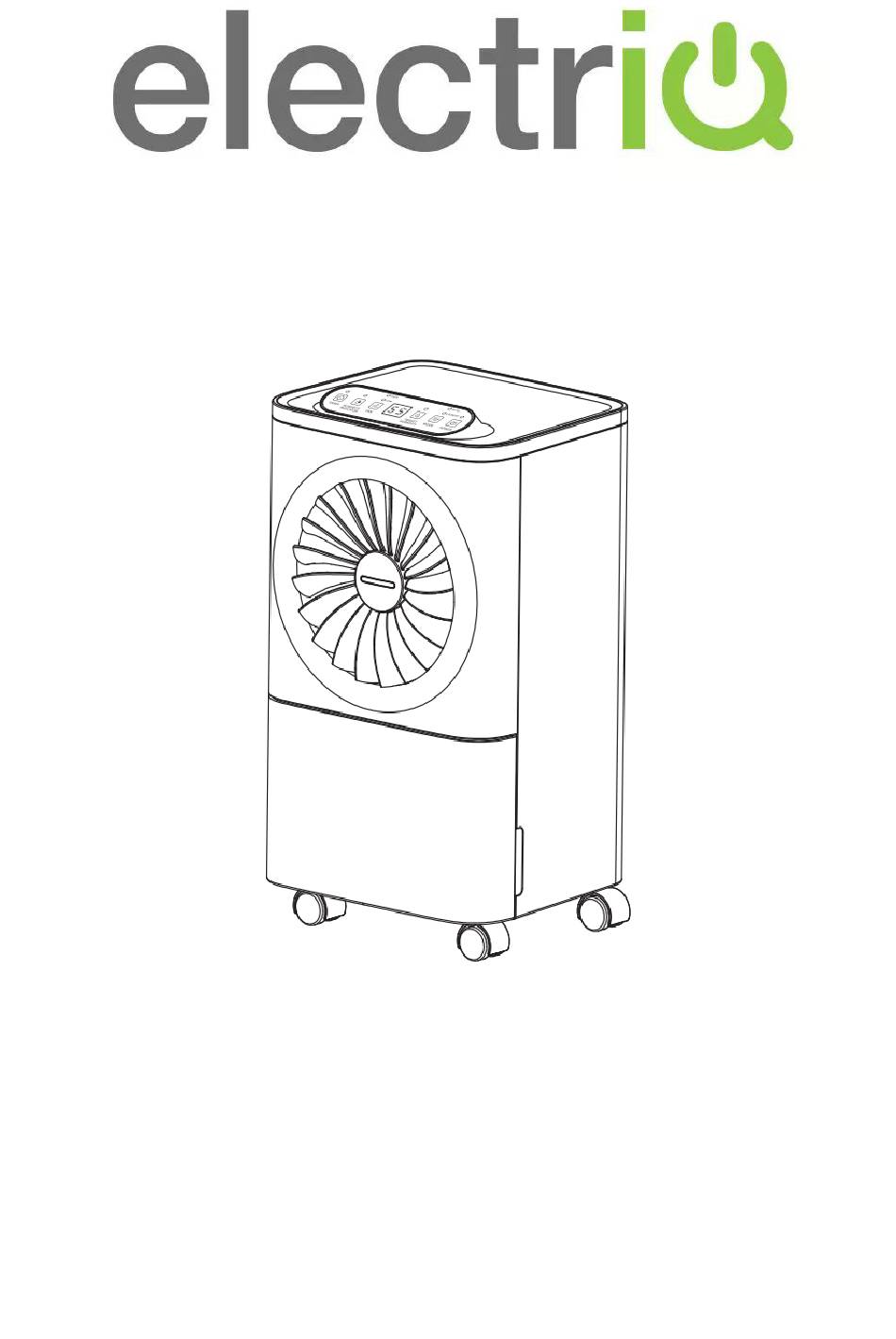

- Page 1 USER MANUAL CD10L-V5 10 LITRE COMPRESSOR DEHUMIDIFIER Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier and keep it safe for future reference Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS VISUAL SAFETY GUIDE FEATURES INSTALLATION POSITIONING THE DEHUMIDIFIER PARTS CONTROL PANEL WATER DRAINAGE CARE AND MAINTENANCE TROUBLESHOOTING TECHNICAL DATA SUPPORT... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property. - Page 5 Before moving the appliance the water tank should be emptied. • When carrying the unit, it should be kept upright and suifficiently supported from its base. • The appliance must be placed in a room without sources of ignition (for example: open •...
-
Page 6: Visual Safety Guide
QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER FEATURES Your dehumidifier belongs to the electriQ dehumidifier range. Easy to use controls Great for up to 3 bed houses Lightweight and portable Cost effective way to combat mould, condensation and damp... -
Page 7: Installation
Do not use outdoors. Your electriQ dehumidifier will begin to protect your space from the harmful effects of excessive moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. For this reason, the dehumidifier should be positioned in a central and clear location so that it can draw this moist air towards it from all over the home. -
Page 8: Parts
Carbon and HEPA filters in combination, the Carbon filter should be inserted first. CARBON FILTER HEPA FILTER Replacement Activated Replacement HEPA filters carbon filters are available are available from the from the retailer under retailer under reference: reference: ACFIL-CD10L-V5 HEPA-CD10L-V5... -
Page 9: Control Panel
CONTROL PANEL POWER Turn the appliance on/off MODE Select the operating mode of the unit between Laundry and Auto. The fan will operate continuously to monitor the humidity. AUTO MODE: The unit will start dehumidifying when the humidity increases to 5% above the desired humidity and will stop when the humidity drops to 5% below the desired humidity. - Page 10 DISPLAY Shows the desired humidity when the TARGET HUMIDITY button is pressed Shows the timer duration when the TIMER button is pressed NOTES • If a permanent drainage pipe is fitted the unit will not stop operating. Setting the desired humidity to around 35% is good for laundry mode, a quick drying boost, or in emergencies.
-
Page 11: Water Drainage
WATER DRAINAGE When the water tank is full, the unit will stop automatically. When this happens the unit will display E2 on the control panel. NOTE: Only empty the water tank when it is full or before moving or storing the unit. There are two ways to dispense collected water. -
Page 12: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug from the mains before cleaning or performing any maintenance. When it is not in use for long periods it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 13: Troubleshooting
Tank full, float displaced or tank not properly inserted. Empty tank, Water tank is full Code check float and make sure tank is properly inserted in unit. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty. -
Page 14: Technical Data
TECHNICAL DATA Model CD10L-V5 Voltage 220-240V～50Hz Dehumidifying capacity 10L / day (at 30⁰ C / 80%RH) Fan Speeds Power Consumption 240W Running Amps 1.3 Amps Tank Capacity 2.4 litres Desired Humidity Range 35 – 80% IP Rating IPX1 High / Low Pressure 3.2/0.7MPa... -
Page 15: Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. 1. Has the unit been standing upright for at least 2 hours? 2. Is the unit plugged into the mains? 3. Is the fuse OK? 4.
