ElectrIQ CD20LE User Manual

Low energy dehumidifier with air purifier and ioniser
Hide thumbs Also See for CD20LE:
Table of Contents

Advertisement

Quick Links

/RZ (QHUJ\ 'HKXPLGLILHU ZLWK $LU 3XULILHU DQG ,RQLVHU
/RZ (QHUJ\ 'HKXPLGLILHU
/RZ (QHUJ\ 'HKXPLGLILHU
/RZ (QHUJ\ 'HKXPLGLILHU
Please read this user manual before using this innovative Air
Conditioner and keep it safe for future reference.
Visit our page www.electrIQ.co.uk for our entire range of Intelligent
& & & & '/(
'/(
'/(
'/(

USER MANUAL

Thank you for choosing ElectrIQ.
Electricals
ZLWK $LU 3XULILHU DQG ,RQLVHU
ZLWK $LU 3XULILHU DQG ,RQLVHU
ZLWK $LU 3XULILHU DQG ,RQLVHU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD20LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ CD20LE

Summary of Contents for ElectrIQ CD20LE

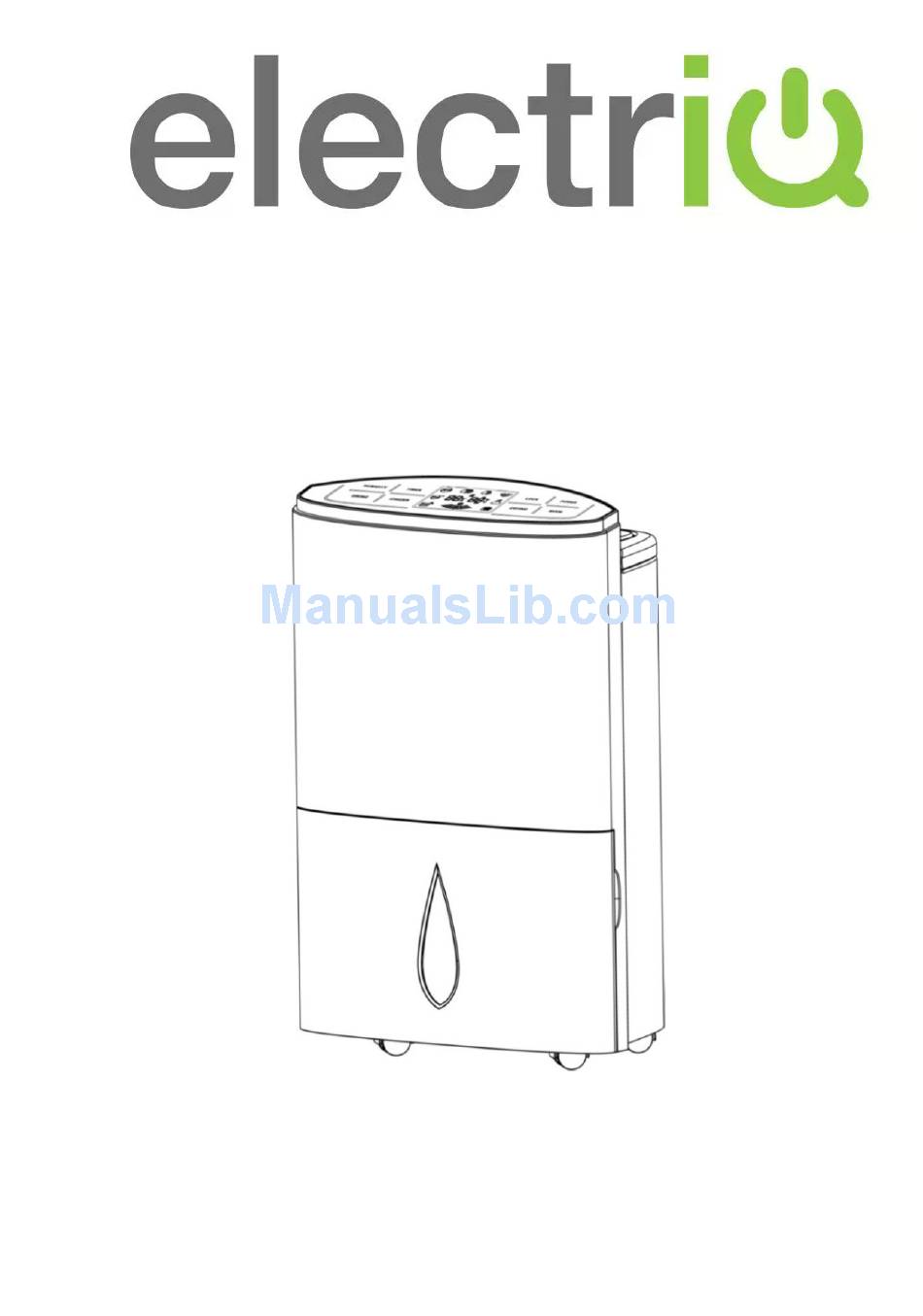

  • Page 1: User Manual

    ZLWK $LU 3XULILHU DQG ,RQLVHU USER MANUAL Thank you for choosing ElectrIQ. Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electrIQ.co.uk for our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    Contents Safety Instructions ……………….. 1 Quick reference ……………….. 3 Questions ……………….. 5 Installation ……………….. 6 Parts ……………….. 7 Control panel ……………….. 8 Operation and Settings ……………….. 11 Water Drainage ……………….. 13 Air Purifier Function & Filters ……………….. 16 Maintenance ……………….. 17 Troubleshooting ………………..

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Important • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with regulations of the country where the unit is used.
  • Page 4 • Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp object/edges. • A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard. •...

  • Page 5: Quick Reference

    Quick Reference Guide Reduce the room humidity: Setting the unit in dehumidifying function : choose high dehumidifying or low dehumidifying POWER MODE high dehumidifying: POWER MODE low dehumidifying: Setting the exact humidity: Choose auto dehumidifying when the humidity in the room ranges from 40% to 70%.

  • Page 6: Air Purifier

    Air Purifier POWER MODE Pressing the HUMIDITY key will adjust the fan speed to high or low in Air Purifier mode. Pressing the SWING key will adjust the position of air outlet louvres for improved air flow. Notes: the IONISER You can press key to turn on the ioniser function.

  • Page 7: Questions

    Questions • • • • & •...

  • Page 8: Installation

    Installation Remove any water from the water tank before starting the unit In order to save energy, do not open windows or doors while the unit is running. Place the unit on a hard / flat surface To reduce noise levels: Place a piece of carpet or a rubber mat under the unit to reduce any vibrations while the unit is running.

  • Page 9: Parts

    Parts Front Air outlet grill Control panel Float Tank Cover Water tank Visible window of water tank Rear...

  • Page 10: Control Panel

    Control Panel Keys POWER key: Press this key to turn the unit on and off. MODE key: Press this key to select the operation mode - auto dehumidifying, high dehumidifying, low dehumidifying or air purifier. TIMER key: Press this key to set the unit to switch off after a selected amount of time.

  • Page 11: Lcd Display

    SWING key: Press this to start the louvres swinging or to adjust the position of air outlet grill. Press the key again to lock the louvres in the desired position. LOCK key: Press the key for 3 seconds to turn on the keypad lock function.
  • Page 12 Tank full or not properly in place. Tank needs emptying or fitting properly. Low room temperature alarm. When temperature <15 this icon indicates that dehumidifying is less efficient. When the room temperature is the dehumidifying function will stop to prevent damage to the compressor and the icon will flash.

  • Page 13: Operation And Settings

    d/DZ d/DZ d/DZ d/DZ DK • • • > DK...
  • Page 14 > DK DK ,hD//dz Zz/E' Zz/E' Zz/E' Zz/E' WKtZ < >K< >K< >K< >...

  • Page 15: Water Drainage

    Water Drainage The usage of water tank When the water tank is full, the unit will stop automatically. When this happens the ‘water full’ icon will be flash and beep Place the cover on the water Put one hand on the tank and insert it back concaves at the side of into the unit, gently, until it...
  • Page 16 Optional Continuous drainage If you do not want to empty the water frequently, connect the continuous drainage pipe (I.D. 9mm) as instructed below. Find the continuous Remove the drainage drainage port in the rear stopper from the unit panel. Gently connect the drainage Please check carefully before using to avoid any pipe...
  • Page 17 Filters Open the filter frame and remove it from the unit as illustrated (right) Insert the air filter or (optional) carbon filter in the filter frame as illustrated (right) The webbing of the air filter face upwards The activated carbon filter can face either direction After the above steps, insert the filter frame back...

  • Page 18: Air Purifier Function & Filters

    Air Purifiers Function & Cleaning of air filter Attention: If the air purifier mode is to be used frequently, please clean the air filter at least once a month. Do not use chemical solvents or hot water. While using the unit in the dehumidifier mode please be aware that filters will slightly affect the air flow.

  • Page 19: Maintenance

    Maintenance Note: • Shut off the unit and unplug from the mains before cleaning or performing any maintenance P • When it is not in use for long periods it is advised to remove the plug from the plug socket. •...

  • Page 20: Troubleshooting

    Trouble shooting...

  • Page 21: Technical Data

    Technical data Model CD20LE Voltage 220-240V / 50Hz Dehumidifying 20 L / day (at 30 C / capacity 80%RH) Rated Power 245 W, 1.2 Amp Tank Capacity 5.5 litres Dimensions 14 kgs / 64x42.5x29 cm Refrigerant R134, 140 grams All information provided is for reference only. Products specifications may change because of continuous product development.
  • Page 22 ElectrIQ UK SUPPORT www.ElectrIQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
