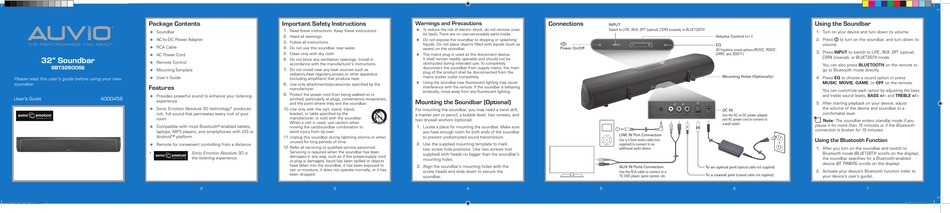

Package Contents
®
Soundbar
AC-to-DC Power Adapter
T H E PERF ORM A NCE Y OU NE ED
®
RCA Cable
AC Power Cord

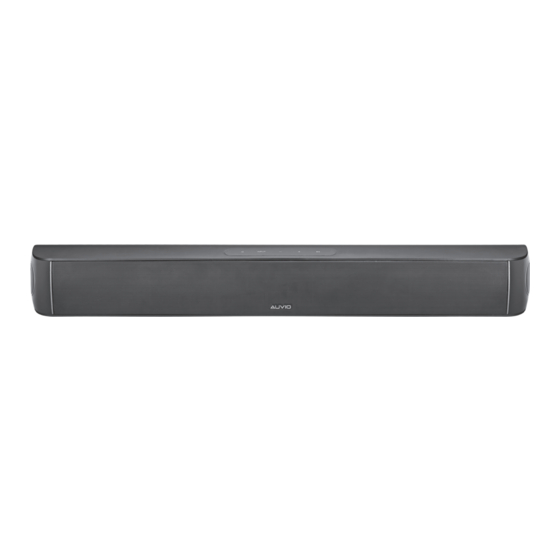

32" Soundbar
Remote Control
SBT32600SE
Mounting Template
User's Guide
Please read this user's guide before using your new
soundbar.
Features
Provides powerful sound to enhance your listening
User's Guide
4000458
Logo
experience
Standard version
Sonic Emotion Absolute 3D technology* produces
rich, full sound that permeates every inch of your
room
Compatible with most Bluetooth
laptops, MP3 players, and smartphones with iOS or
5 / Version 1.2 Brand / Confidential
sonic emotion ag 2012
Android™ platform
Logo
Remote for convenient controlling from a distance
Standard version
*
5 / Version 1.2 Brand / Confidential
sonic emotion ag 2012
4000458_UG_EN_071113.indd 1-7
Important Safety Instructions
1.
Read these instructions. Keep these instructions.
2.
Heed all warnings.
3.
Follow all instructions.
4.
Do not use this soundbar near water.
5.
Clean only with dry cloth.
6.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
7.
Do not install near any heat sources such as
radiators,heat registers,stoves,or other apparatus
(including amplifiers) that produce heat.
8.
Use only attachments/accessories specified by the
manufacturer.
9.
Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit the soundbar.
10.
Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the soundbar.
When a cart is used, use caution when
®
-enabled tablets,
moving the cart/soundbar combination to
avoid injury from tip-over.
11.
Unplug this soundbar during lightning storms or when
unused for long periods of time.
12.
Refer all servicing to qualified service personnel.
Servicing is required when the soundbar has been
Sonic Emotion Absolute 3D is
damaged in any way, such as if the power-supply cord
the listening experience.
or plug is damaged, liquid has been spilled or objects
have fallen into the soundbar, it has been exposed to
rain or moisture, it does not operate normally, or it has
been dropped.
2
3
2
3
Warnings and Precautions
Connections
To reduce the risk of electric shock, do not remove cover
(or back). There are no user-serviceable parts inside.
Do not expose the soundbar to dripping or splashing
liquids. Do not place objects filled with liquids (such as
(G)
vases) on the soundbar.
Power On/Off
The mains plug is used as the disconnect device.
It shall remain readily operable and should not be
obstructed during intended use. To completely
disconnect the soundbar from supply mains, the main
plug of the product shall be disconnected from the
mains socket outlet completely.
Using the soundbar near fluorescent lighting may cause
interference with the remote. If the soundbar is behaving
erratically, move away from any fluorescent lighting.
Mounting the Soundbar (Optional)
For mounting the soundbar, you may need a twist drill,
a marker pen or pencil, a bubble level, two screws, and
two drywall anchors (optional).
1.
Locate a place for mounting the soundbar. Make sure
you have enough room for both ends of the soundbar
to present unobstructed sound transmission.
2.
Use the supplied mounting template to mark
two screw hole positions. Use two screws (not
supplied) with heads no bigger than the soundbar's
mounting holes.
3.
Align the soundbar's mounting holes with the
screw heads and slide down to secure the
soundbar.
4
4
INPUT
Switch to
,
,
(optical),
(coaxial), or
.
LINE
AUX
OPT
COAX
BLUETOOTH
Volume Control (+/–)
EQ
3D Equalizer sound options (
,
,
MUSIC
MOVIE
, and
).
GAME
3DOFF
Mounting Holes (Optionally)
DC IN
Use the AC-to-DC power adapter
and AC power cord to connect to
a wall outlet.
LINE IN Port Connection
Use a 3.5mm audio cable (not
supplied) to connect to an
additional audio device.
AUX IN Ports Connection
To an optical port (optical cable not supplied)
Use the RCA cable to connect to a
To a coaxial port (coaxial cable not supplied)
TV, DVD player, game system, etc.
5
6
5
6
Using the Soundbar
1.
Turn on your device and turn down its volume.
Press G to turn on the soundbar, and turn down its
2.
volume.
Press INPUT to switch to
3.
LINE, AUX, OPT (optical),
(coaxial), or
mode.
COAX
BLUETOOTH
You can also press BLUETOOTH on the remote to
go to Bluetooth mode directly.
4.
Press EQ to choose a sound option or press
MUSIC, MOVIE, GAME, or OFF on the remote.
You can customize each option by adjusting the bass
and treble sound levels, BASS +/– and TREBLE +/–.
5.
After starting playback on your device, adjust
the volume of the device and soundbar to a
comfortable level.
n
Note: The soundbar enters standby mode if you
pause it for more than 15 minutes or if the Bluetooth
connection is broken for 15 minutes.
Using the Bluetooth Function
1.
After you turn on the soundbar and switch to
Bluetooth mode (
scrolls on the display),
BLUETOOTH
the soundbar searches for a Bluetooth-enabled
device (
scrolls on the display).
BT PAIRING
2.
Activate your device's Bluetooth function (refer to
your device's user's guide).
7
7
7/16/2013 3:00:01 PM
