TM
32" 100W Soundbar with Dock
for iPod
®
or iPhone™
User's Guide
40-294
Please read this user's guide before using your new Soundbar.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-294 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUVIO 40-294

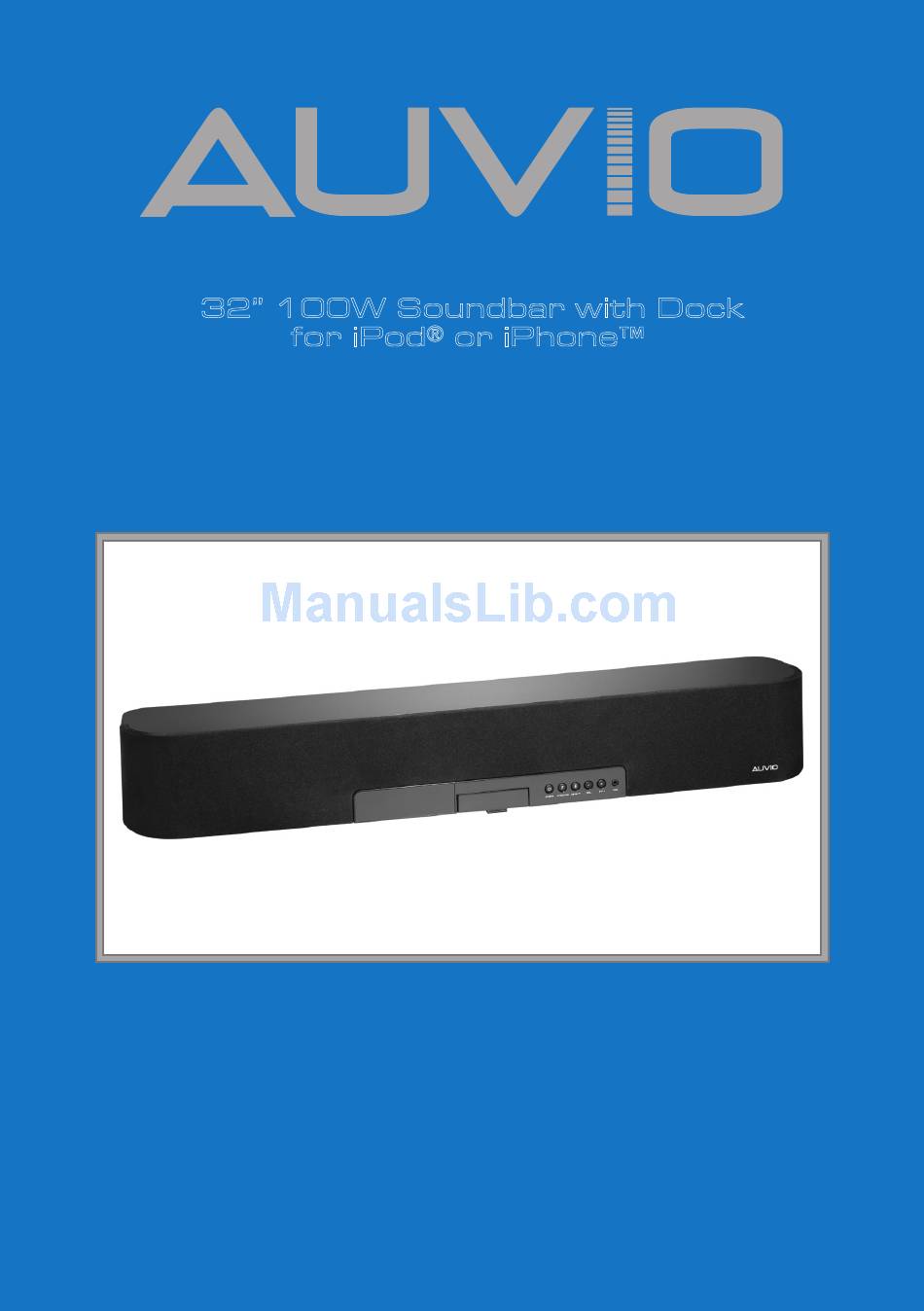

  • Page 1 32” 100W Soundbar with Dock for iPod ® or iPhone™ User’s Guide 40-294 Please read this user’s guide before using your new Soundbar.
  • Page 2: Table Of Contents

    Contents Important Safety Instructions .....................3 Warnings and Precautions ....................3 Overview ..........................4 Features ..........................4 Package Contents ......................4 Front View ........................5 Back View ........................6 Remote Control ......................7 Setup .............................8 Connect the FM Antenna ....................8 Connect External Devices (Optional) ................8 Install Back-up Battery ....................9 Connect Power ......................10 Install Remote Control Batteries .................10 Setting the Clock ......................10...
  • Page 3: Important Safety Instructions

    Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators,heat registers,stoves,or other apparatus (including amplifiers) that produce heat.
  • Page 4: Overview

    Overview Features Powerful 50W RMS system enhances your music listening experience „ iPod Drawer conveniently opens when needed and hidden when not in use „ Plays and charges most dockable iPods „ Package Contents Soundbar Remote Control AC Adapter FM Antenna 3.5mm Cable RCA Cable CAUTION...
  • Page 5: Front View

    Front View POWER FUNCTION EFFECT VOL– / VOL+ Turn your soundbar Select FM radio, Turn 3D virtural sound Decrease and 3.5 mm line input on and off iPod, IN1, IN 2, or effect on and off, increase volume jack to connect AUX mode press and hold for addtional sound...
  • Page 6: Back View

    Back View FM ANT SUB OUT STEREO RCA VIDEO OUT DC IN 15V INPUT Connect FM Connect an external Connect to the Connect supplied antenna subwoofer Connect to the audio video output jacks DC15V power cord output jacks on your on your external external device (TV, DVD, device...
  • Page 7: Remote Control

    Remote Control MUTE – Turn sound on or off EFFECT Turn 3D virtual surround effect on or off POWER – Turn the soundbar on or off. DISPLAY / TIME FUNCTION – Select Enter time setting mode, desired input mode view current mode. Number Buttons (0-9) VOL + / VOL –...
  • Page 8: Setup

    Setup Connect the FM Antenna Plug the supplied FM antenna into the FM ANT jack. Connect External Devices (Optional) Subwoofer Connect an external subwoofer Audio Inputs Video Outputs Use an audio cable to connect Use the video cable to connect each device’s audio output each device’s video input jack jacks to the soundbar’s audio...
  • Page 9: Install Back-Up Battery

    Connect an audio device using the 3.5mm mini-phono cable, or a 3.5 mm mini phono to RCA cable (not included) into the AUX jack. Connect the other end into the audio output/headphone output on your audio device. Install Back-up Battery Install batteries in the battery compartment at the back of your soundbar to keep clock memory during power failure.
  • Page 10: Connect Power

    Connect Power Connect the plug to the soundbar first, then connect AC plug to the power outlet.   Install Remote Control Batteries Press the tab to remove the battery cover. Insert two AAA batteries (not supplied) as indicated by the polarity symbols (+ and –) marked on the remote control.
  • Page 11: Basic Operation

    Basic Operation FM Radio Press POWER to turn on the unit. 107.3 Press FUNCTION to select FM mode. FM displays.   Press to tune down or up to find a station.   Press and hold to auto search stations. Press VOL + or VOL –...
  • Page 12: Playing An Ipod / Iphone

    Snap the adapter into the docking station. Plug your iPod / iPhone into the adapter. Playing Tracks Dock your iPod / iPhone. IPOD Press POWER to turn on the soundbar. Press FUNCTION to select iPod mode. IPOD displays. Press to start and pause iPod / iPhone playback. ...
  • Page 13: Select Source

    Select Source To play devices connected to your soundbar, you must select the correct input source. Press FUNCTION repeatedly to select: IN1 or IN2 to play devices connected to „ Audio Inputs. AUX to play device connected to the line „...
  • Page 14: Fcc Information

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product 32” 100W Soundbar with Dock for iPod or iPhone Model 40-294 Responsible Ignition L.P ., Party 3102 Maple Ave Suite 450 Dallas, TX 75201...
  • Page 15 OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P . SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY...
  • Page 16 RoHS environmental restrictions. © 2010. Ignition L.P . All rights reserved. Auvio is a trademark used by Ignition L.P . Package and user’s guide are recyclable. User’s guide contains recycled material. Printed 03A10 iPod is a trademark of Apple Inc., registered in the U.S.
